Digital Display Lithium-Ion Motorcycle Battery
Motorcycle Battery

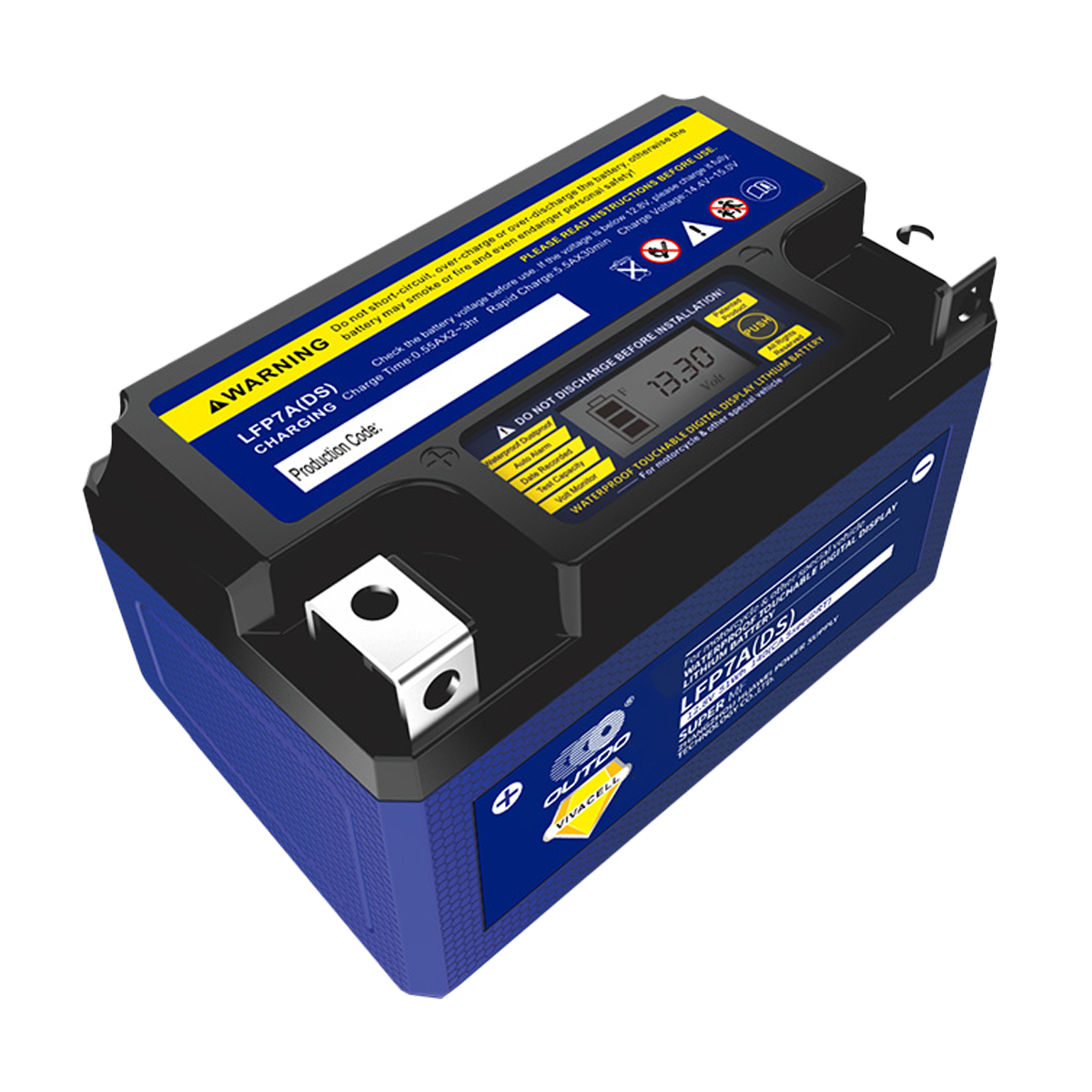

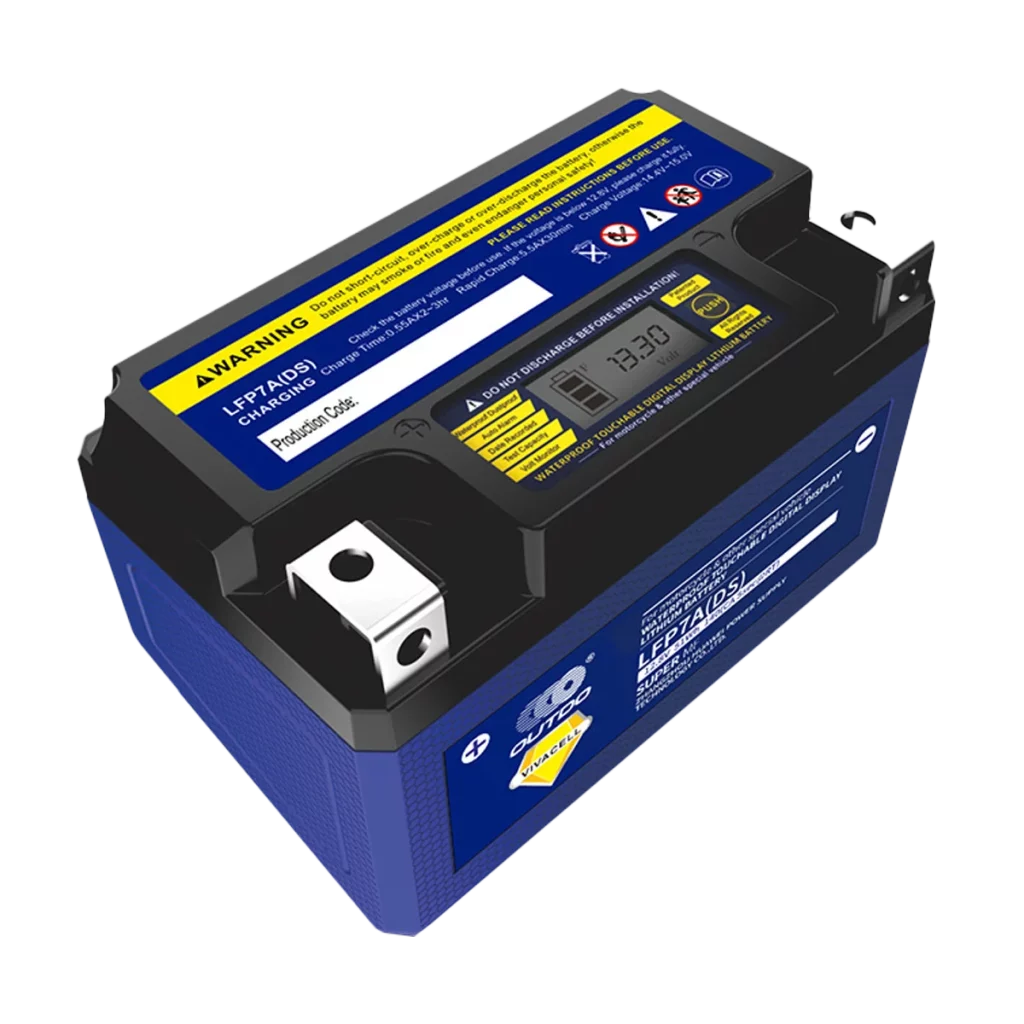

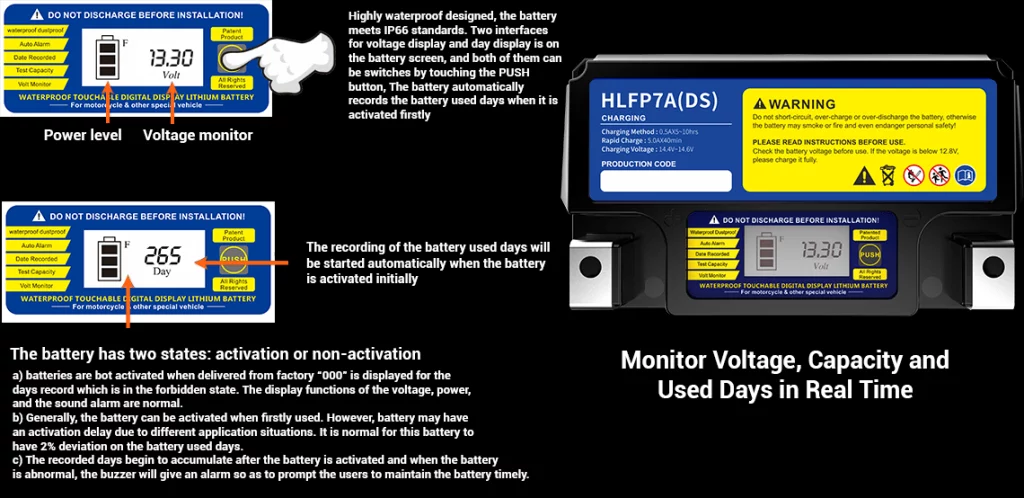

DS-LFP is a type of electronic lithium battery with LCD screen which monitors the status of battery in real time and records the battery used days. There is a built-in alarm detecting whether the voltage is abnormal or the battery is short of capacity, which can effectively remind users to maintain timely.
OUTDO
Waterproof Touchable Digital Display Lithium Battery
DS-LFP is a type of electronic lithium battery with LCD screen which monitors the status of battery in real time and records the battery used days. There is a built-in alarm detecting whether the voltage is abnormal or the battery is short of capacity, which can effectively remind users to maintain timely.
Safe Use Precautions
I. Safe Precautions
1. Do not dismantle for repair or modification, which may cause the system failure leading to the unusable battery.
2. Do not short-circuit the positive and negative poles of the system or system groups, otherwise it will cause an electric shock, a fire or the malfunction.
3. Please firmly connect to the bolt part of the terminal, if loose, which may bring about a fire.
4. Do not let the battery be contaminated with oil, water or other chemicals, otherwise there will be an electric shock, a fire, or the malfunction.
5. Be sure to cut off the main power when installing the connection, or there is a risk of electric shocks.
6. Do not connect to a power supply other than the rated voltage, otherwise there will be a fire or the malfunction.
7. Do not use the system directly as AC power, otherwise it may cause a fire, a fault, or the damage.
8. Do not place the system near fire or heat, so as not to cause an explosion.
9. Charging process will produce the trace gas, when using the battery, please pay attention to ventilation and heat dissipation as well as Maintain it in the ventilation conditions.
II. Precautions for Use
1. Do not store and use the battery in the following cases, otherwise it will cause a fault, the shell crack, the leakage and so on:
1.1. Places below-40°C or above + 50°C.
1.2. Outdoor and other places where directly exposed to rain or sunshine.
1.3. Foggy or icy places.
1.4. Locations with corrosive gases.
1.5. Relatively humid or dusty places.
1.6. Occurrence of shock or impact.
1.7. It should be stored in a cool, dry, clean environment.

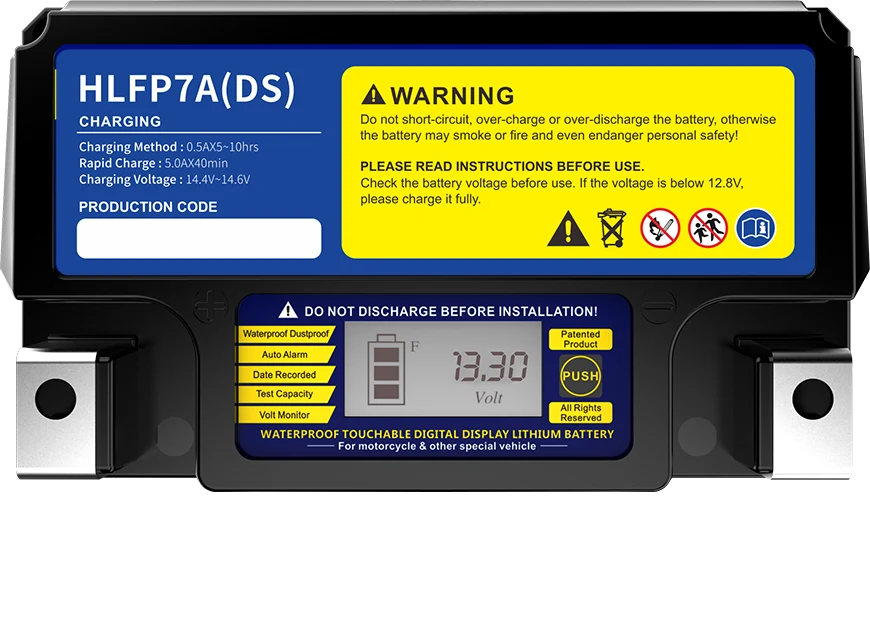

2. LCD screen maintenance:
2.1. Avoid hard objects to pressure the control panel.
2.2. Keep the screen clean and dry.
2.3. Check the system display frequently.
2.4. Be aware of the buzzer alarm.
2.5. Handle timely when the buzzer alarms.
| Type | Model | Voltage (V) | Standard capacity (Ah) | Standard Power (wh) | Recharge (6 months) 0.5-1H (A) | Recharge (12 months) 1-2H (A) | Meter CA (25±5°C) | Terminal | Polarity | Dimensions ±2 (L*W*H) | Weight (KG) | Lead-acid Battery Model | P/N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cylindrical Battery | LFPX4L(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 60 | LM1 | - + | 114*69*88 | 0.9 | YB4L-BS(MF)UTX4L-BS(MF) | 301090036-00045 |
| Cylindrical Battery | LFP5S(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 60 | LM1 | - + | 114*69*87 | 1 | UTZ5S(MF) | 301090036-00066 |
| Cylindrical Battery | LFPX5L(DS) | 12.8 | 6 | 76.8 | 1.62 | 1.62 | 72 | LM1 | - + | 114*69*107 | 1.1 | UTX5L-BS(MF) | 301090036-00044 |
| Cylindrical Battery | LFP6.5L(DS) | 12.8 | 6 | 76.8 | 1.62 | 1.62 | 72 | LM1 | - + | 138*66*100 | 1.1 | YB6.5L-BS(MF) | 301090036-00067 |
| Cylindrical Battery | LFP7S(DS) | 12.8 | 6 | 76.8 | 1.62 | 1.62 | 72 | LM1 | - + | 114*69*107 | 1.2 | UTZ7S(MF) | 301090036-00040 |
| Cylindrical Battery | LFPX7L(DS) | 12.8 | 6 | 76.8 | 1.62 | 1.62 | 72 | LM1 | - + | 114*69*132/T | 1.2 | UTX7L-BS(MF) | 301090036-00039 |
| Cylindrical Battery | LFP7A(DS) | 12.8 | 6 | 76.8 | 1.62 | 1.62 | 72 | LM2 | + - | 150*86*96 | 1.2 | UTX7A-BS(MF) | 301090036-00038 |
| Cylindrical Battery | LFP10S(DS) | 12.8 | 12 | 153.6 | 3.24 | 3.24 | 144 | LM2 | + - | 150*86*96 | 1.6 | UTZ10S(MF) | 301090036-00068 |
| Cylindrical Battery | LFPX9(DS) | 12.8 | 10 | 128 | 2.7 | 2.7 | 120 | LM2 | + - | 150*86*109 | 1.8 | UTX9-BS(MF) | 301090036-00041 |
| Cylindrical Battery | LFP12A(DS) | 12.8 | 12 | 153.6 | 3.24 | 3.24 | 144 | LM2 | + - | 150*86*109 | 1.8 | YT12A-BS(MF) | 301090036-00069 |
| Cylindrical Battery | LFP14S(DS) | 12.8 | 12 | 153.6 | 3.24 | 3.24 | 144 | LM2 | + - | 150*86*109 | 1.8 | UTZ14S(MF) | 301090036-00070 |
| Cylindrical Battery | LFPX12(DS) | 12.8 | 12 | 153.6 | 3.24 | 3.24 | 144 | LM2 | + - | 150*86*132 | 1.9 | UTX12-BS(MF) | 301090036-00046 |
| Cylindrical Battery | LFPX14(DS) | 12.8 | 15 | 192 | 4.05 | 4.05 | 180 | LM2 | + - | 150*86*147/T | 2 | UTX14-BS(MF) | 301090036-00071 |
| Cylindrical Battery | LFPX16(DS) | 12.8 | 18 | 230.4 | 4.86 | 4.86 | 216 | LM2 | + - | 150*86*163/T | 2.1 | UTX16-BS(MF) | 301090036-00072 |
| Cylindrical Battery | LFP5WL(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 60 | LM3 | - + | 119*60*129 | 1.1 | YB5L-BS(MF) | 301090036-00073 |
| Cylindrical Battery | LFP7W(DS) | 12.8 | 6 | 76.8 | 1.62 | 1.62 | 72 | LM3 | + - | 148*60*129 | 1.2 | YB7B-BS(MF) | 301090036-00074 |
| Cylindrical Battery | LFP7WL(DS) | 12.8 | 6 | 76.8 | 1.62 | 1.62 | 72 | LM3 | - + | 148*60*129 | 1.16 | YB7BL-BS(MF) | 301090036-00075 |
| Cylindrical Battery | LFP9L(DS) | 12.8 | 10 | 128 | 2.7 | 2.7 | 120 | LM4 | - + | 137*77*134 | 1.9 | YB7L-BS(MF) YB9L-BS(MF) | 301090036-00076 |
| Cylindrical Battery | LFP9Y(DS) | 12.8 | 10 | 128 | 2.7 | 2.7 | 120 | LM4 | + - | 137*77*134 | 1.88 | YB7-BS(MF) YB9-BS(MF) | 301090036-00077 |
| Cylindrical Battery | LFP7B(DS)(European regulations) | 12.8 | 6 | 76.8 | 1.62 | 1.62 | 72 | LM1 | + - | 150*65*94 | 1.2 | YT7B-BS(MF) | 301090036-00078 |
| Cylindrical high-rate cell | HLFPX4L(DS) | 12.8 | 2.5 | 32 | 0.68 | 0.68 | 75 | LM1 | - + | 114*69*88 | 0.73 | YB4L-BS(MF) UTX4L-BS(MF) | 301100036-00072 |
| Cylindrical high-rate cell | HLFP5S(DS) | 12.8 | 2.5 | 32 | 0.68 | 0.68 | 75 | LM1 | - + | 114*69*87 | 0.71 | UTZ5S(MF) | 301100036-00073 |
| Cylindrical high-rate cell | HLFPX5L(DS) | 12.8 | 2.5 | 32 | 0.68 | 0.68 | 75 | LM1 | - + | 114*69*107 | 0.75 | UTX5L-BS(MF) | 301100036-00074 |
| Cylindrical high-rate cell | HLFP6.5L(DS) | 12.8 | 2.5 | 32 | 0.68 | 0.68 | 75 | LM1 | - + | 138*66*100 | 1.12 | YB6.5L-BS(MF) | 301100036-00075 |
| Cylindrical high-rate cell | HLFP7S(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM1 | - + | 114*69*107 | 1.25 | UTZ7S(MF) | 301100036-00076 |
| Cylindrical high-rate cell | HLFPX7L(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM1 | - + | 114*69*132/T | 1.29 | UTX7L-BS(MF) | 301100036-00077 |
| Cylindrical high-rate cell | HLFP7A(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM2 | + - | 150*86*96 | 1.26 | UTX7A-BS(MF) | 301100036-00078 |
| Cylindrical high-rate cell | HLFP10S(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM2 | + - | 150*86*96 | 1.36 | UTZ10S(MF) | 301100036-00079 |
| Cylindrical high-rate cell | HLFPX9(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM2 | + - | 150*86*109 | 1.29 | UTX9-BS(MF) | 301100036-00080 |
| Cylindrical high-rate cell | HLFP5WL(DS) | 12.8 | 2.5 | 32 | 0.68 | 0.68 | 75 | LM3 | - + | 119*60*129 | 0.76 | YB5L-BS(MF) | 301100036-00081 |
| Cylindrical high-rate cell | HLFP7W(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM3 | + - | 148*60*129 | 1.25 | YB7B-BS(MF) | 301100036-00082 |
| Cylindrical high-rate cell | HLFP7WL(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM3 | - + | 148*60*129 | 1.25 | YB7BL-BS(MF) | 301100036-00083 |
| Cylindrical high-rate cell | HLFP9L(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM4 | - + | 137*77*134 | 1.3 | YB7L-BS(MF) YB9L-BS(MF) | 301100036-00084 |
| Cylindrical high-rate cell | HLFP9Y(DS) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM4 | + - | 137*77*134 | 1.3 | YB7-BS(MF) YB9-BS(MF) | 301100036-00085 |
| Cylindrical high-rate cell | HLFPX12(DS) | 12.8 | 7.5 | 96 | 2.03 | 2.03 | 225 | LM2 | + - | 150*86*132 | 1.8 | UTX12-BS(MF) | 301100036-00086 |
| Cylindrical high-rate cell | HLFPX14(DS) | 12.8 | 7.5 | 96 | 2.03 | 2.03 | 225 | LM2 | + - | 150*86*147/T | 1.82 | UTX14-BS(MF) | 301100036-00087 |
| Cylindrical high-rate cell | HLFPX16(DS) | 12.8 | 7.5 | 96 | 2.03 | 2.03 | 225 | LM2 | + - | 150*86*163/T | 1.84 | UTX16-BS(MF) | 301100036-00088 |
| Cylindrical high-rate cell | HLFP7B(DS)( European regulations ) | 12.8 | 5 | 64 | 1.35 | 1.35 | 150 | LM1 | + - | 150*65*94 | 1.24 | YT7B-BS(MF) | 301100036-00089 |
| Cylindrical high-rate cell | HFPYB14(DS)( European regulations ) | 12.8 | 7.5 | 96 | 2.03 | 2.03 | 225 | LM2 | + - | 133*88*164 | 1.91 | YB14-BS(MF) | 301100036-00090 |
