Four Wheel Vehicle Series
Electric Vehicle Battery
Four Wheel Vehicle Battery is designed for pure electric cars, hybrid cars, electric buses, tourist attractions sightseeing vehicles, ships and patrol cars.
Four Wheel Vehicle Battery Features
Large Capacity and High Power
Manufactured using imported high-purity raw materials and patented technologies, delivering excellent high-current discharge performance and superior capacity.
Excellent High-Current Discharge Performance
The grid utilizes an advanced structure with thin horizontal and vertical ribs, significantly reducing internal resistance. This ensures more uniform electrochemical reactions during high-current discharge, resulting in lower voltage drop and strong recovery performance after deep discharge.
Maintenance-Free
Features a valve-regulated sealed (VRLA) design with minimal water loss, eliminating the need for refilling or routine maintenance.
Fast Charging Capability
Optimized structural design enables rapid charging in compliance with QC/T742-2006 standards, reaching 100% capacity within one hour.
Superior Consistency
Incorporates next-generation patented formulas and advanced processing techniques to ensure stable and consistent performance across multiple batteries in series.
Strong Recovery After Deep Discharge
Utilizes rare earth alloys and advanced formulations to enhance bonding between the grid and active materials, allowing the battery to recover up to 100% capacity after deep discharge.
Excellent Low-Temperature Performance
High-activity conductive materials and low-temperature expansion agents are added to the plates, ensuring reliable charge and discharge performance in cold conditions and maintaining stable mileage in winter.
Long Service Life
Under standard conditions (DOD 80%), the battery can achieve 600–800 cycles. A single charge supports a travel distance of approximately 40–60 km.
Environmentally Friendly
Designed with a fully sealed structure and unique gel electrolyte to prevent leakage and acid mist. Safe for use in any orientation and compliant with green energy standards.
Related Products
| Type | Model | Terminal | Dimensions±2 (mm) | Weight±0.15 (KG) | Datasheet |
|---|---|---|---|---|---|

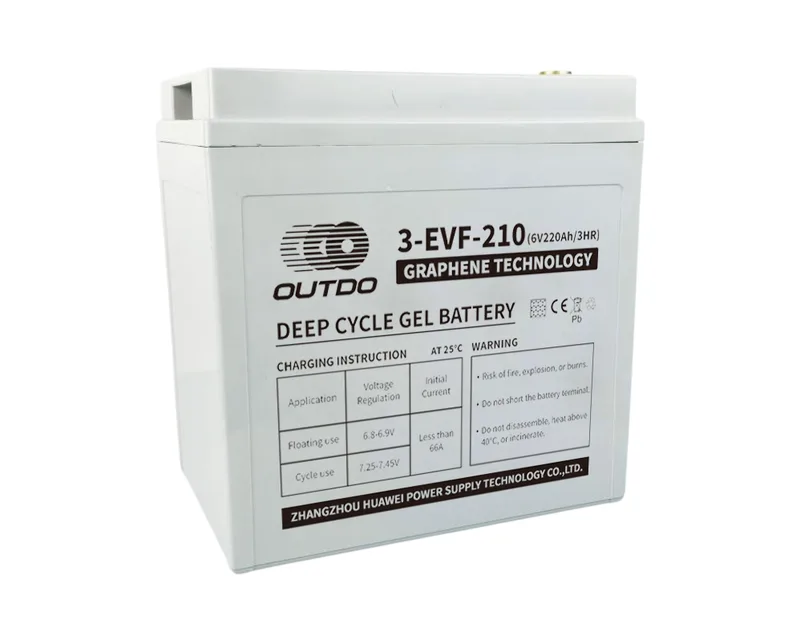

| For Four-Wheeled | 3-EVF-210 | T3 | 260*180*273 | 36 | |
| For Four-Wheeled | 4-EVF-150 | T3 | 260*180*273 | 36 | |
| For Four-Wheeled | 6-EVF-150 | T2 | 485*170*240 | 53 | |
| For Four-Wheeled | 6-EVF-120 | T2 | 407*174*238 | 42 | |

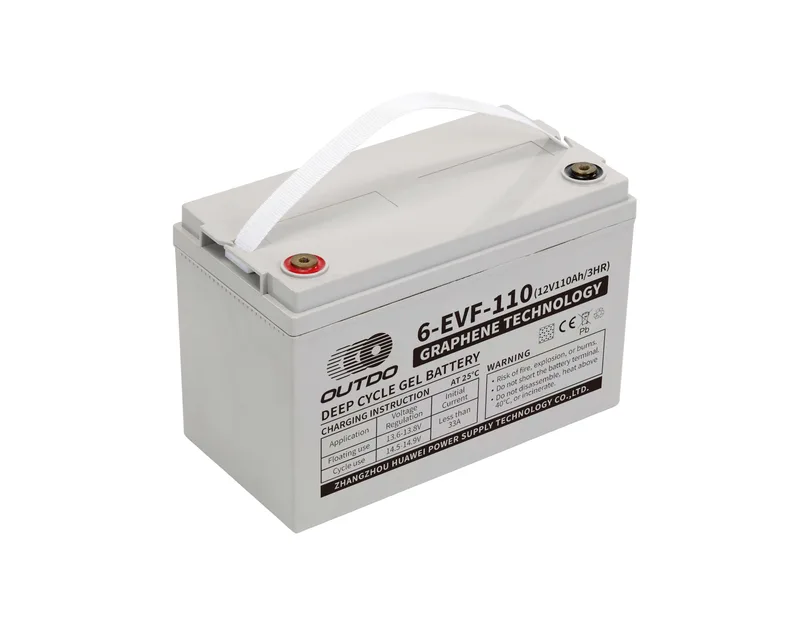

| For Four-Wheeled | 6-EVF-110 | T3 | 332*176*218 | 34.5 | |

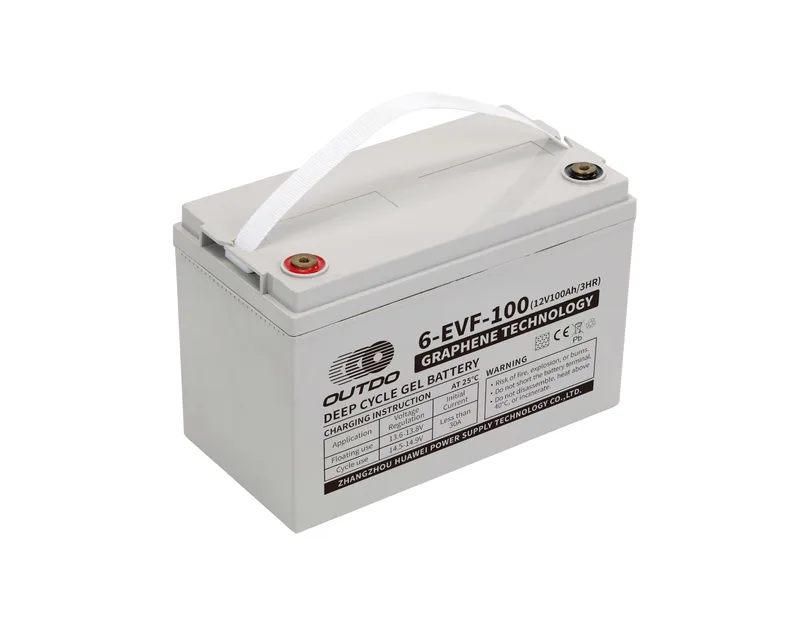

| For Four-Wheeled | 6-EVF-100 | T3 | 332*176*218 | 32.5 | |

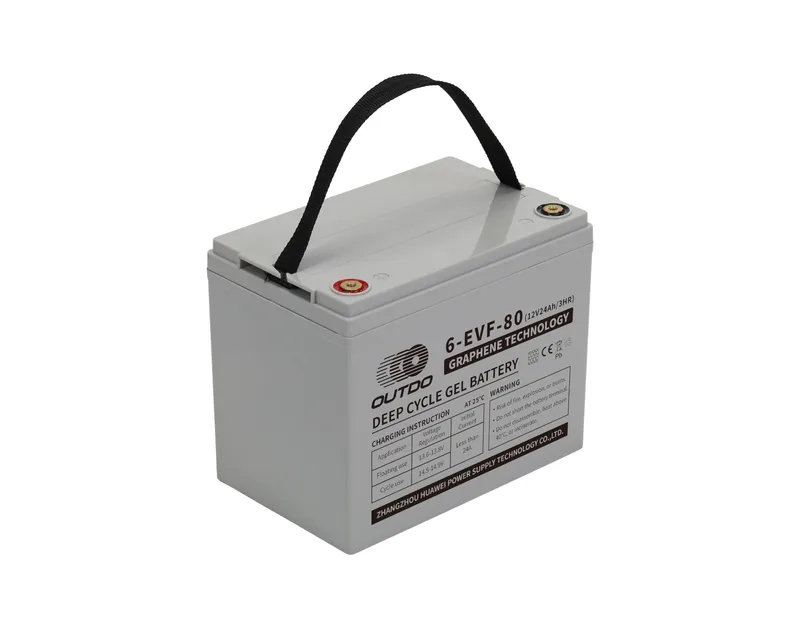

| For Four-Wheeled | 6-EVF-80 | T1 | 260*168*215 | 26.5 |
