6-EVF-78
For Tricycle- Dimensions (L x W x H)
- 235 x 181 x 181 mm
- Weight
- 21.6 kg
- Terminal
- D3
- Type
- For Tricycle
Tricycle Battery
Electric Vehicle Battery
Tricycle battery for electric tricycles are DC power supplies of battery type, which are used in special vehicles such as electric tricycles, electric scooters, electric forklifts and other cleaning vehicles.
Tricycle Battery Features
Large Capacity and High Power
Manufactured using imported high-purity raw materials and patented technologies, delivering excellent high-current discharge performance and superior capacity.
Excellent High-Current Discharge Performance
The grid utilizes an advanced structure with thin horizontal and vertical ribs, significantly reducing internal resistance. This ensures more uniform electrochemical reactions during high-current discharge, resulting in lower voltage drop and strong recovery performance after deep discharge.
Maintenance-Free
Features a valve-regulated sealed (VRLA) design with minimal water loss, eliminating the need for refilling or routine maintenance.
Fast Charging Capability
Optimized structural design enables rapid charging in compliance with QC/T742-2006 standards, reaching 100% capacity within one hour.
Superior Consistency
Incorporates next-generation patented formulas and advanced processing techniques to ensure stable and consistent performance across multiple batteries in series.
Strong Recovery After Deep Discharge
Utilizes rare earth alloys and advanced formulations to enhance bonding between the grid and active materials, allowing the battery to recover up to 100% capacity after deep discharge.
Excellent Low-Temperature Performance
High-activity conductive materials and low-temperature expansion agents are added to the plates, ensuring reliable charge and discharge performance in cold conditions and maintaining stable mileage in winter.
Long Service Life
Under standard conditions (DOD 80%), the battery can achieve 600-800 cycles. A single charge supports a travel distance of approximately 40-60 km.
Environmentally Friendly
Designed with a fully sealed structure and unique gel electrolyte to prevent leakage and acid mist. Safe for use in any orientation and compliant with green energy standards.
Every model in this series. Filter by voltage or type, or search a model number.
Showing 14 of 14 models

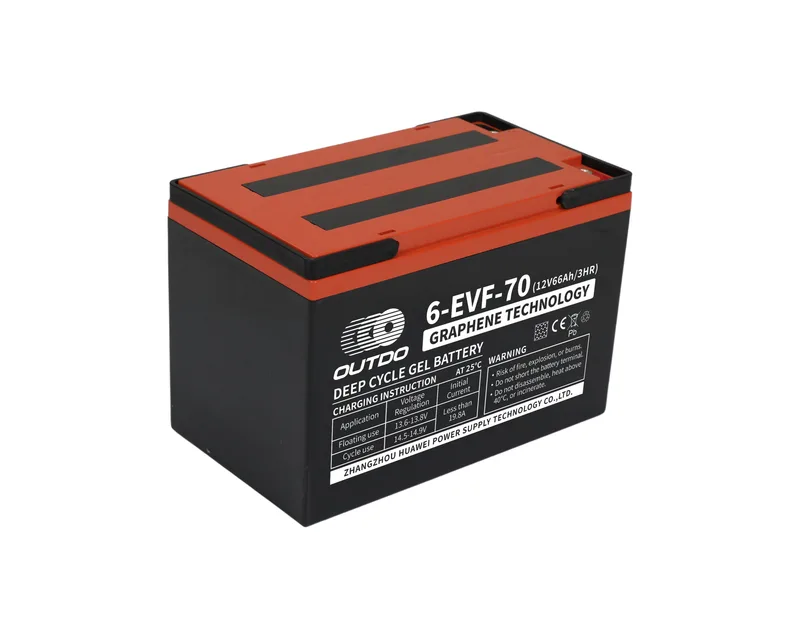

6-EVF-70
For Tricycle- Dimensions (L x W x H)
- 224 x 171 x 174 mm
- Weight
- 17.9 kg
- Terminal
- D3
- Type
- For Tricycle

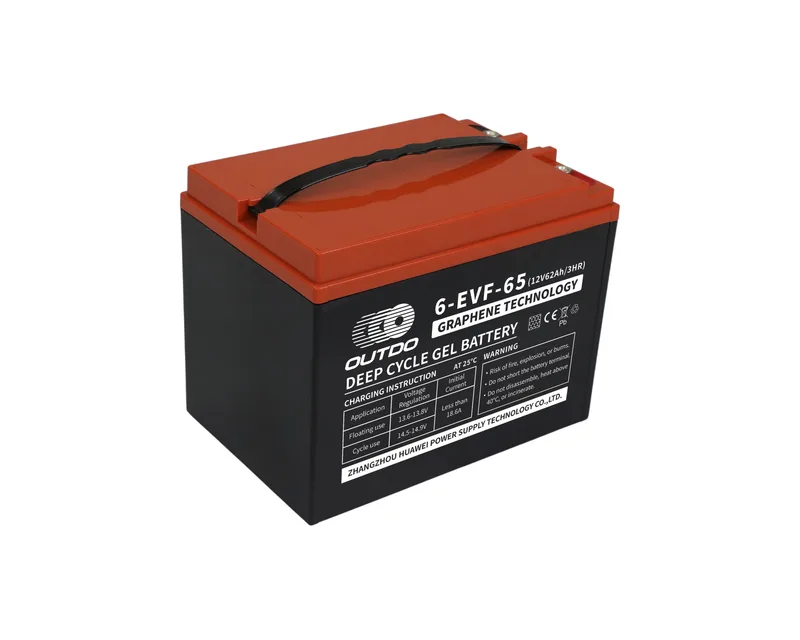

6-EVF-65
For Tricycle- Dimensions (L x W x H)
- 223 x 162 x 172 mm
- Weight
- 16.6 kg
- Terminal
- D3
- Type
- For Tricycle

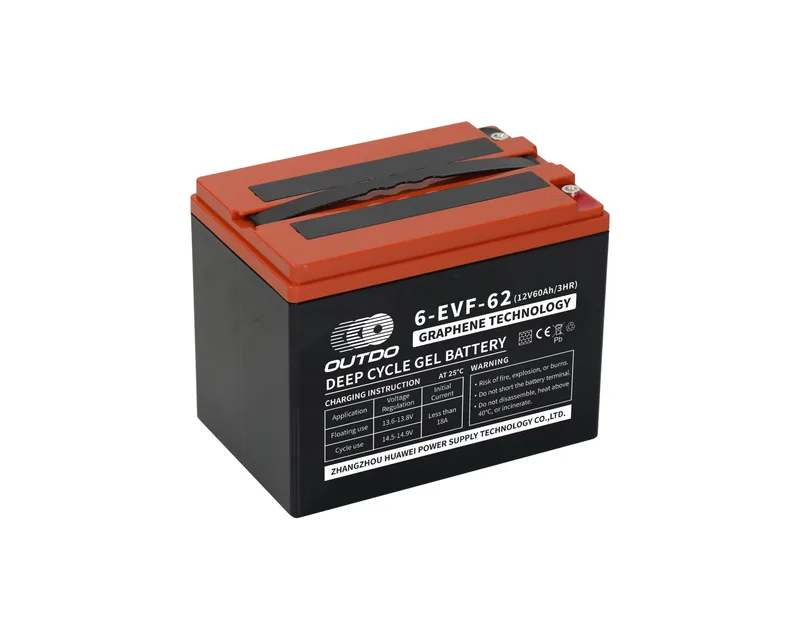

6-EVF-62
For Tricycle- Dimensions (L x W x H)
- 223 x 150 x 172 mm
- Weight
- 15.8 kg
- Terminal
- D3
- Type
- For Tricycle

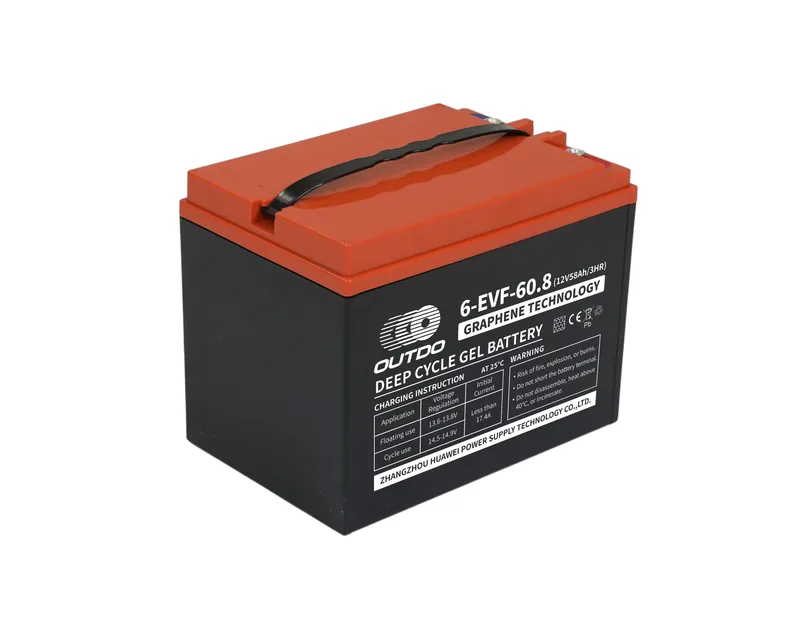

6-EVF-60.8
For Tricycle- Dimensions (L x W x H)
- 223 x 150 x 172 mm
- Weight
- 15.3 kg
- Terminal
- D3
- Type
- For Tricycle

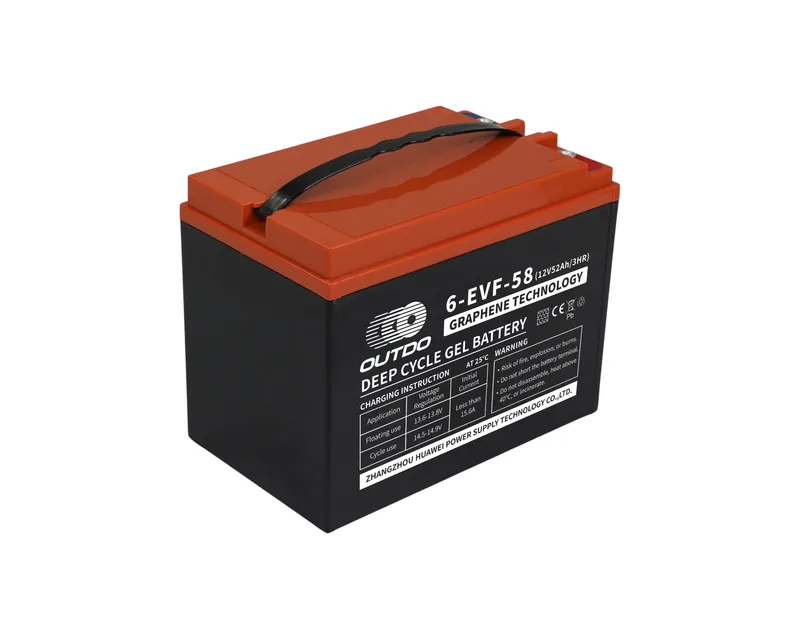

6-EVF-58
For Tricycle- Dimensions (L x W x H)
- 223 x 135 x 172 mm
- Weight
- 14.8 kg
- Terminal
- D3
- Type
- For Tricycle

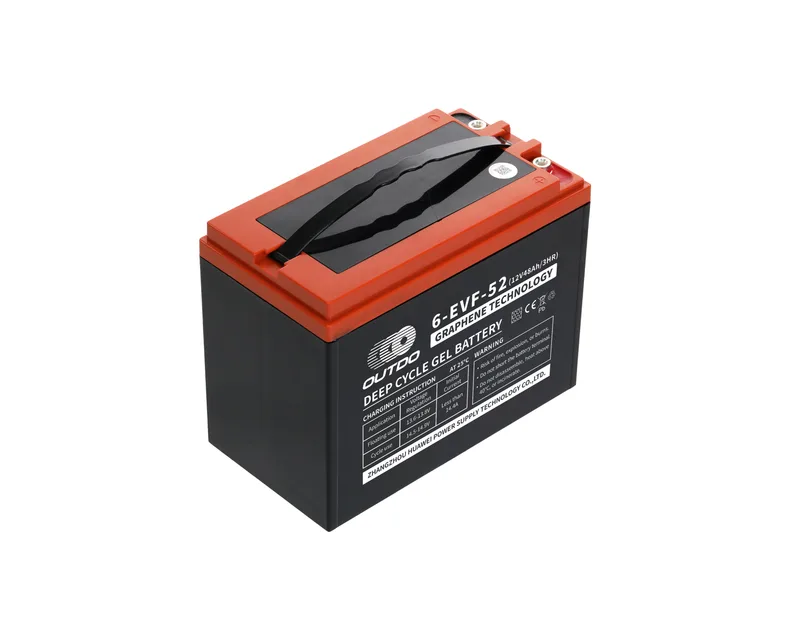

6-EVF-52
For Tricycle- Dimensions (L x W x H)
- 223 x 121 x 176 mm
- Weight
- 13.7 kg
- Terminal
- D3
- Type
- For Tricycle

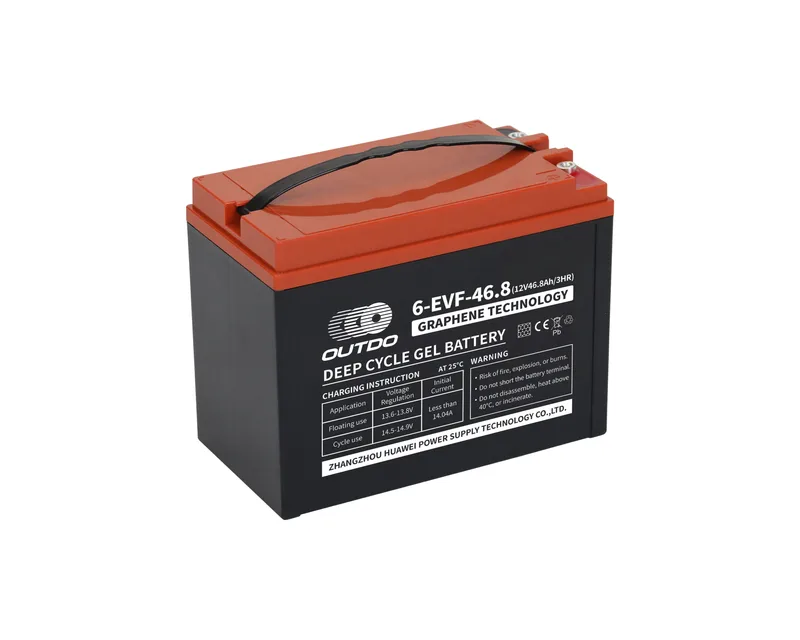

6-EVF-46.8
For Tricycle- Dimensions (L x W x H)
- 223 x 121 x 172 mm
- Weight
- 12.6 kg
- Terminal
- D3
- Type
- For Tricycle

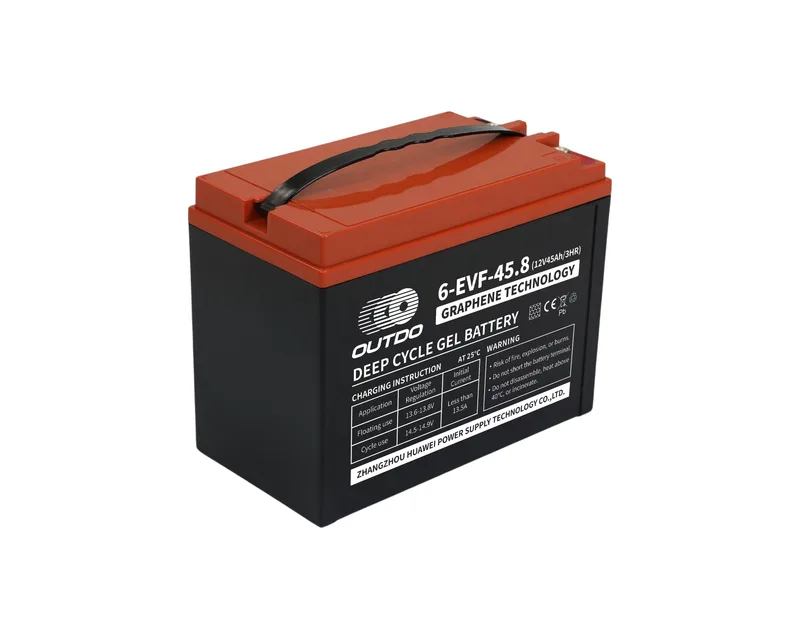

6-EVF-45.8
For Tricycle- Dimensions (L x W x H)
- 223 x 121 x 174 mm
- Weight
- 12.1 kg
- Terminal
- D3
- Type
- For Tricycle

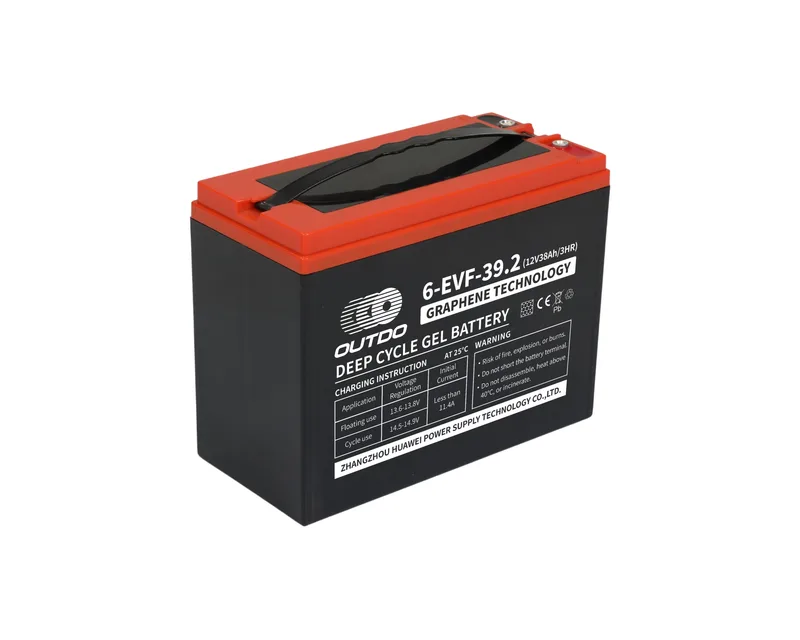

6-EVF-39.2
For Tricycle- Dimensions (L x W x H)
- 223 x 105 x 174 mm
- Weight
- 11.3 kg
- Terminal
- D2
- Type
- For Tricycle
6-EVF-39
For Tricycle- Dimensions (L x W x H)
- 267 x 78 x 170 mm
- Weight
- 10.2 kg
- Terminal
- D2
- Type
- For Tricycle

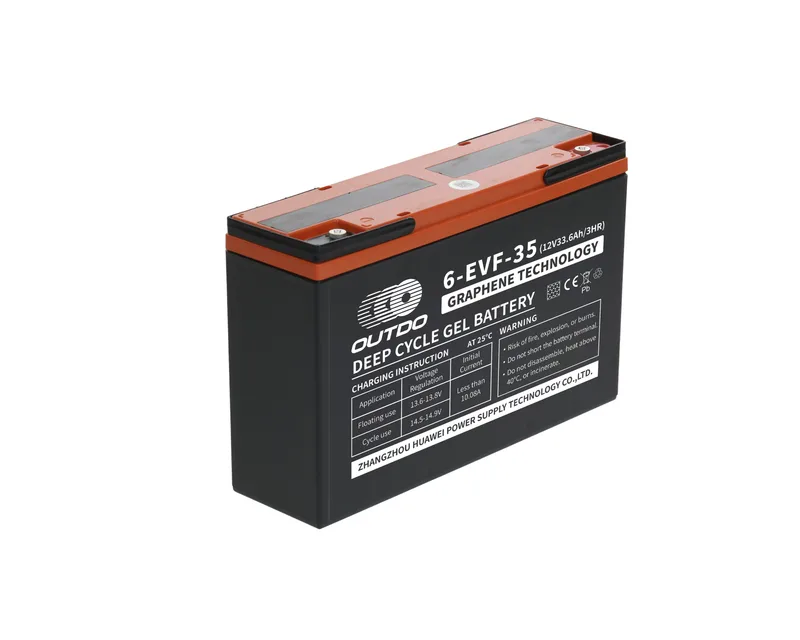

6-EVF-35
For Tricycle- Dimensions (L x W x H)
- 267 x 78 x 170 mm
- Weight
- 9.8 kg
- Terminal
- D2
- Type
- For Tricycle

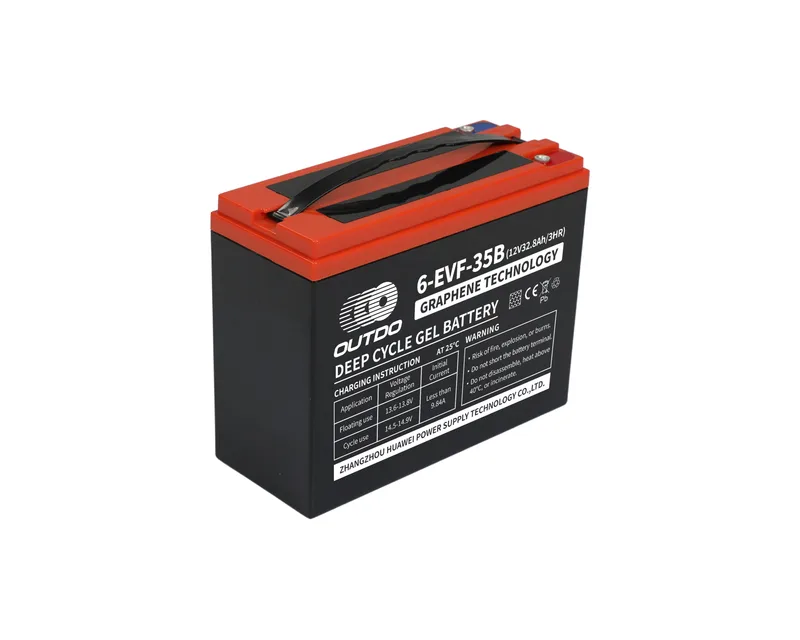

6-EVF-35B
For Tricycle- Dimensions (L x W x H)
- 223 x 93 x 176 mm
- Weight
- 9.7 kg
- Terminal
- D2
- Type
- For Tricycle

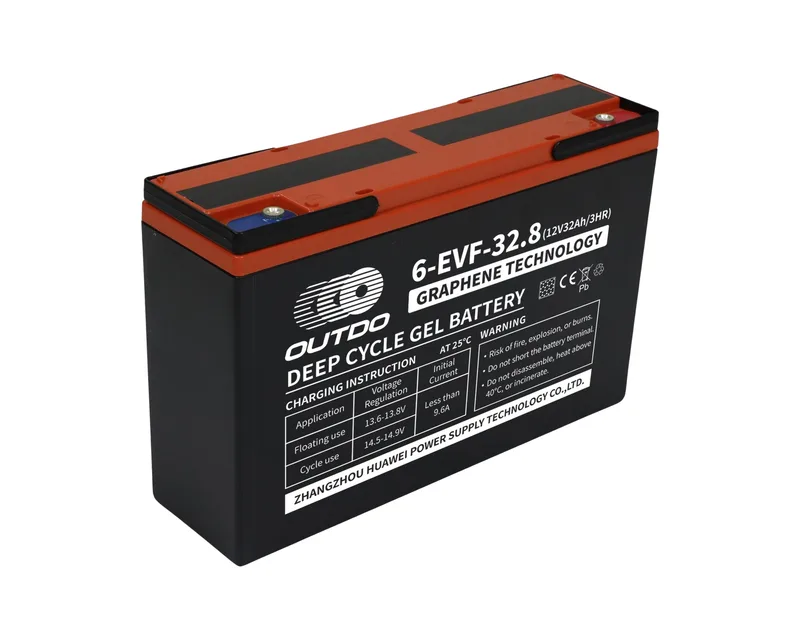

6-EVF-32.8
For Tricycle- Dimensions (L x W x H)
- 267 x 78 x 170 mm
- Weight
- 9.2 kg
- Terminal
- D2
- Type
- For Tricycle
| Model | Type | Terminal | Dimensions±2 (mm) | Weight±0.15 (KG) | Datasheet |
|---|---|---|---|---|---|
| 6-EVF-78 | For Tricycle | D3 | 235*181*181 | 21.6 | |
| 6-EVF-70 | For Tricycle | D3 | 224*171*174 | 17.9 | |
| 6-EVF-65 | For Tricycle | D3 | 223*162*172 | 16.6 | |
| 6-EVF-62 | For Tricycle | D3 | 223*150*172 | 15.8 | |
| 6-EVF-60.8 | For Tricycle | D3 | 223*150*172 | 15.3 | |
| 6-EVF-58 | For Tricycle | D3 | 223*135*172 | 14.8 | |
| 6-EVF-52 | For Tricycle | D3 | 223*121*176 | 13.7 | |
| 6-EVF-46.8 | For Tricycle | D3 | 223*121*172 | 12.6 | |
| 6-EVF-45.8 | For Tricycle | D3 | 223*121*174 | 12.1 | |
| 6-EVF-39.2 | For Tricycle | D2 | 223*105*174 | 11.3 | |
| 6-EVF-39 | For Tricycle | D2 | 267*78*170 | 10.2 | |
| 6-EVF-35 | For Tricycle | D2 | 267*78*170 | 9.8 | |
| 6-EVF-35B | For Tricycle | D2 | 223*93*176 | 9.7 | |
| 6-EVF-32.8 | For Tricycle | D2 | 267*78*170 | 9.2 |
