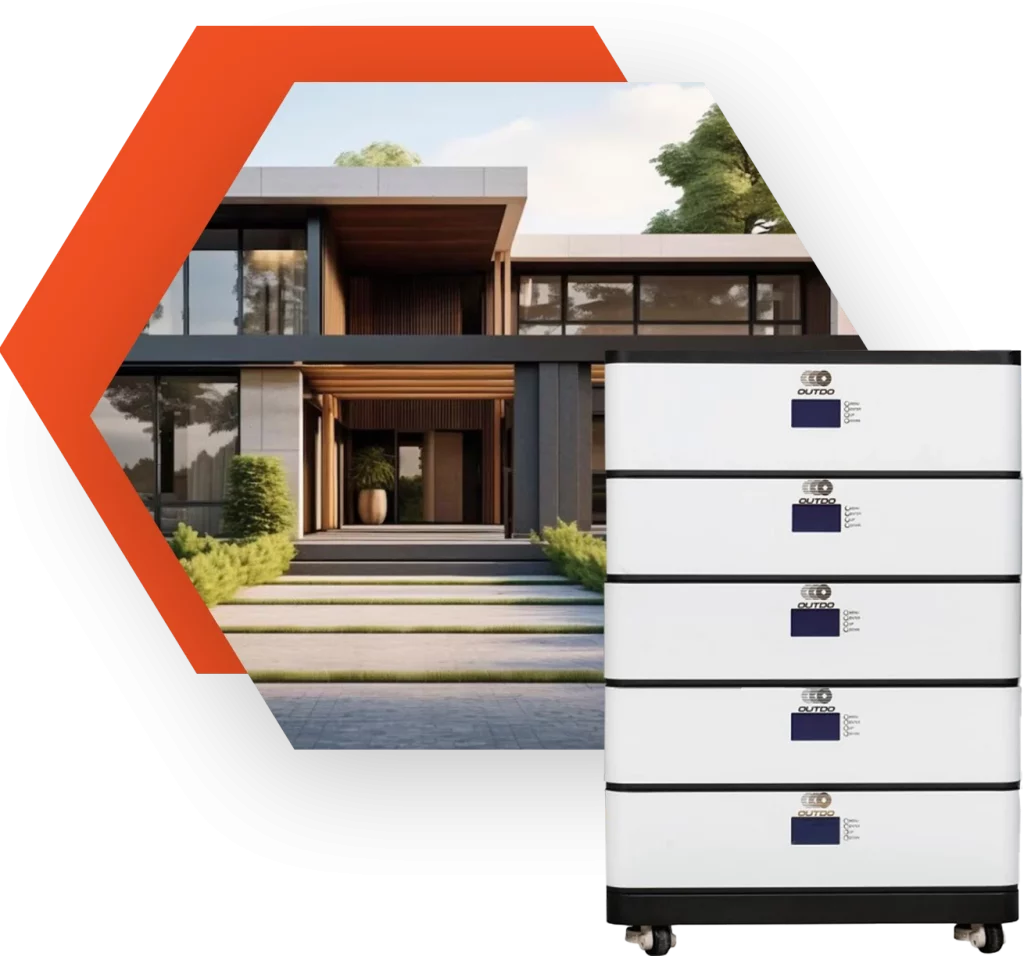

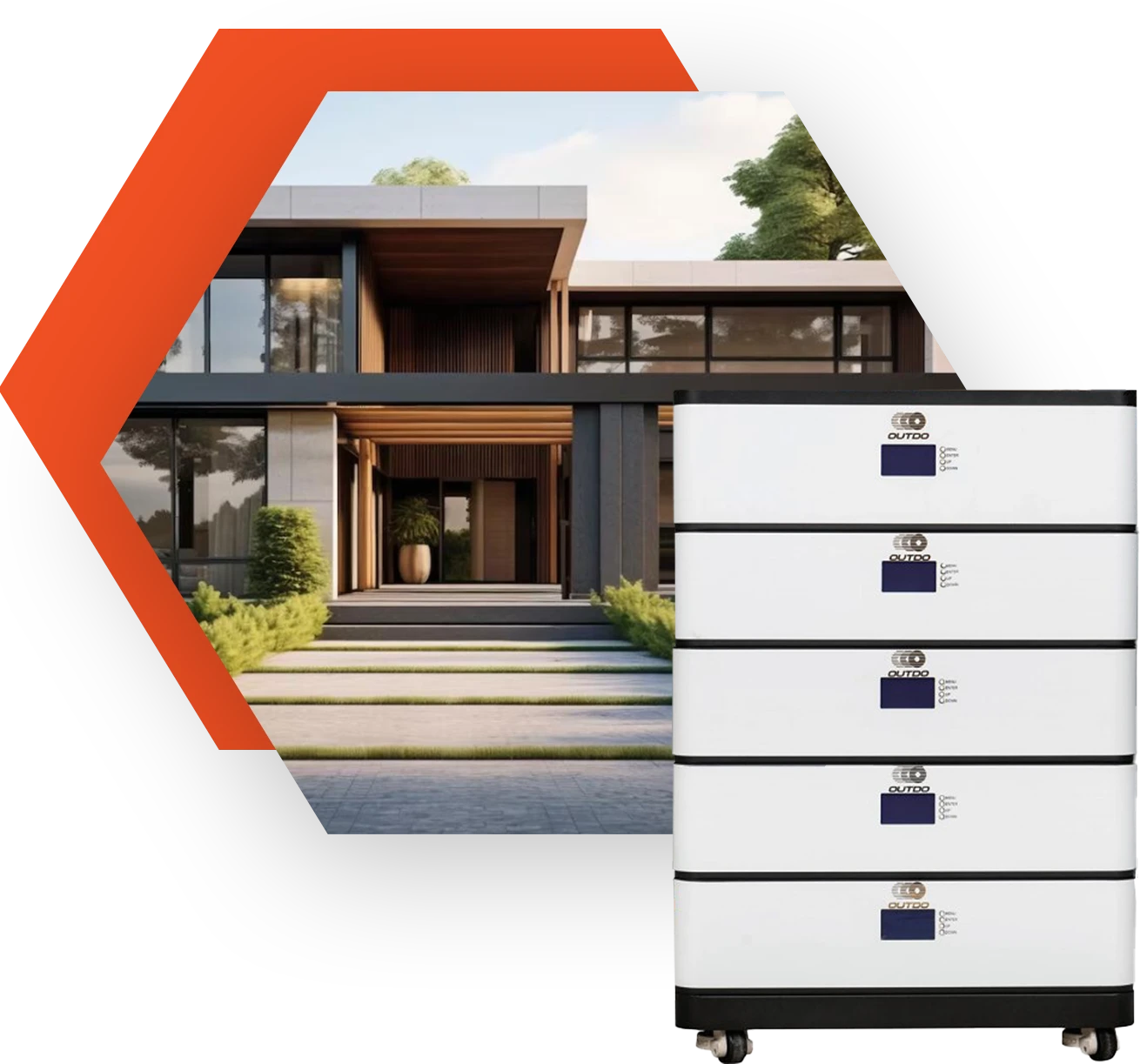

Semi-Solid Stacked System
Semi-Solid Lithium Ion Stacked System
The Semi-Solid Lithium-Ion Stacked Energy Storage Battery is a compact and reliable energy storage solution designed for residential, commercial, and industrial applications. It supports customized BMS communication protocols and inverter compatibility for seamless system integration. Its space-saving design simplifies transportation and installation, while customizable appearance and colors provide flexible OEM solutions for different project requirements.
Key Features of Our Semi-Solid Stacked System
High-Level Security Standard
A ceramic-material versatile diaphragm produces no smoke, fire, or explosion in the puncture test.
Lighter Weight & Smaller Volume
Energy density of at least 170 Wh/kg, around 45% of the weight and volume of a comparable lead-acid battery.
Wide Working Temperature Range
Operates reliably across a -20°C to 60°C range.
APP Intelligent Monitoring
Monitor the battery from the app over Bluetooth or Wi-Fi.
Longer Cycle Life
More than 5,000 cycles at 100% depth of discharge.
BMS Intelligent Management
Built-in reliable BMS with charge and discharge protection and real-time monitoring.
APPLICATION
- •Home Energy Storage System
- •Photovoltaic Energy Storage System
- •Lithium battery replace the lead acid battery
- •AGV, construction machinery
- •High Voltage Energy Storage System
| Model | Series | Standard Communication Interface | Voltage (V) | Series/Parallel Connection | Standard Capacity (Ah) | Standard Power (Wh) | Standard Charge Current (A) | Max Charge Current (A) | Standard Discharge Current (A) | Max Discharge Current (A) | BMS | Dimensions±2 (mm) | Weight±3% (KG) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DDSSS100-51.2 | 51.2V | 485 232 CAN | 51.2 | 16S1P | 100 | 5120 | 20 | 100 | 20 | 100 | 100 | 635*432.5*190 | 51 |
