Tower Energy Storage
Lithium Ion Tower Storage
Various sizes valid, easy installation, panel customization service, support for parallel expansion. Customized BMS online communication protocol.

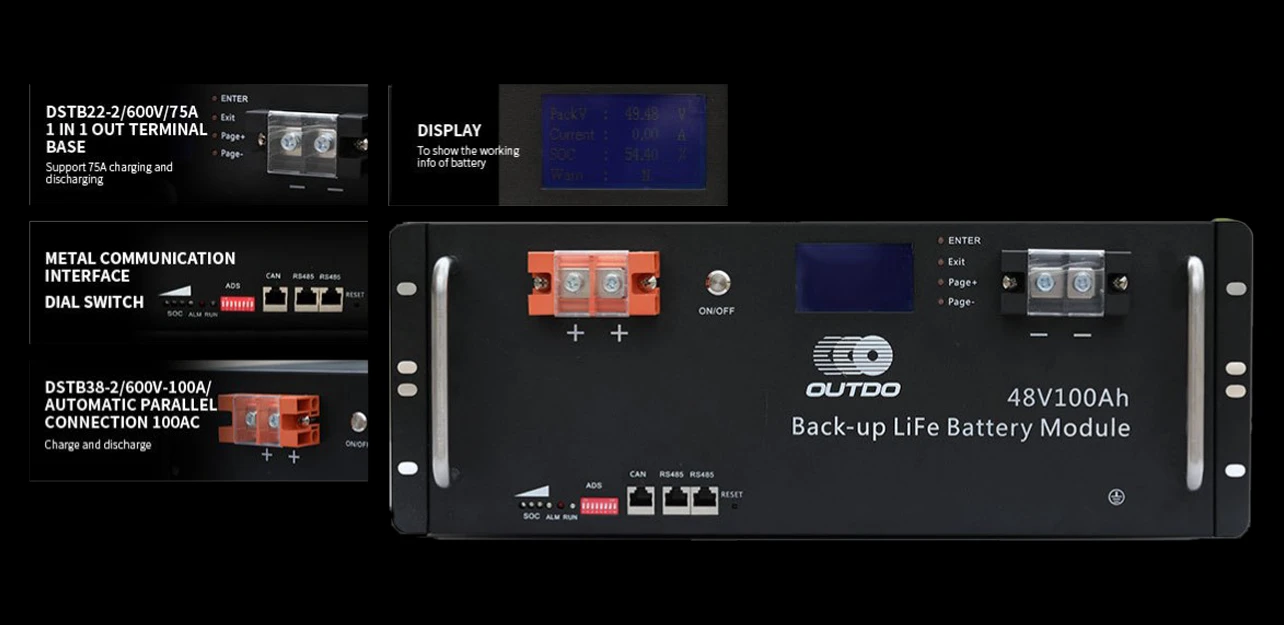

Tower Energy Storage Details
APPLICATION
- •Uninterrupted energy
- •Home backup
- •Hospitals
- •Banks
- •Small businesses
- •Small base stations
- •Backup power systems
- •Data processing centers
| Series | Model | Standard Communication Interface | Voltage (V) | Standard Capacity (Ah) | Standard Power (Wh) | Standard Charge Current (A) | Max Charge Current (A) | Standard Discharge Current (A) | Max Discharge Current (A) | BMS (A) | Dimensions±2 (mm) | Weight±3% (KG) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48V | JXLFP100-48 | RS485/RS232/CAN | 48 | 100 | 4800 | 20 | 100 | 20 | 100 | 100 | 4U (T520*485*505*177) | 43 | |
| 48V | JXLFP150-48 | RS485/RS232/CAN | 48 | 150 | 7200 | 30 | 100 | 30 | 100 | 100 | 4U (T585*540*505*177) | 64 | |
| 51.2V | JXLFP100-51.2 | RS485/RS232/CAN | 51.2 | 100 | 5120 | 20 | 100 | 20 | 100 | 100 | 4U (T520*485*505*177) | 45 | |
| 51.2V | JXLFP200-51.2 | RS485/RS232/CAN | 51.2 | 200 | 10240 | 40 | 100 | 40 | 100 | 100 | 5U (T595*550*505*223) | 80 | |
| 51.2V | JXLFP150-51.2 | RS485/RS232/CAN | 51.2 | 150 | 7680 | 30 | 100 | 30 | 100 | 100 | 5U (T595*550*505*223) | 66 | |
| 48V | JXLFP200-48 | RS485/RS232/CAN | 48 | 200 | 9600 | 40 | 100 | 40 | 100 | 100 | 5U (T595*550*505*223) | 76 | |
| 51.2V | JXLFP230-51.2 | RS485/RS232/CAN | 51.2 | 230 | 11776 | 46 | 100 | 46 | 100 | 100 | 5U (T595*550*505*223) | 84 | |
| 51.2V | JXLFP50-51.2 | RS485/RS232/CAN | 51.2 | 50 | 2560 | 10 | 100 | 10 | 100 | 100 | 3U (T520*485*505*133) | 27 | |
| 48V | JXLFP230-48 | RS485/RS232/CAN | 48 | 230 | 11040 | 46 | 100 | 46 | 100 | 100 | 5U (T595*550*505*223) | 80 | |
| 48V | JXLFP50-48 | RS485/RS232/CAN | 48 | 50 | 2400 | 10 | 100 | 10 | 100 | 100 | 3U (T520*485*505*133) | 26 |
