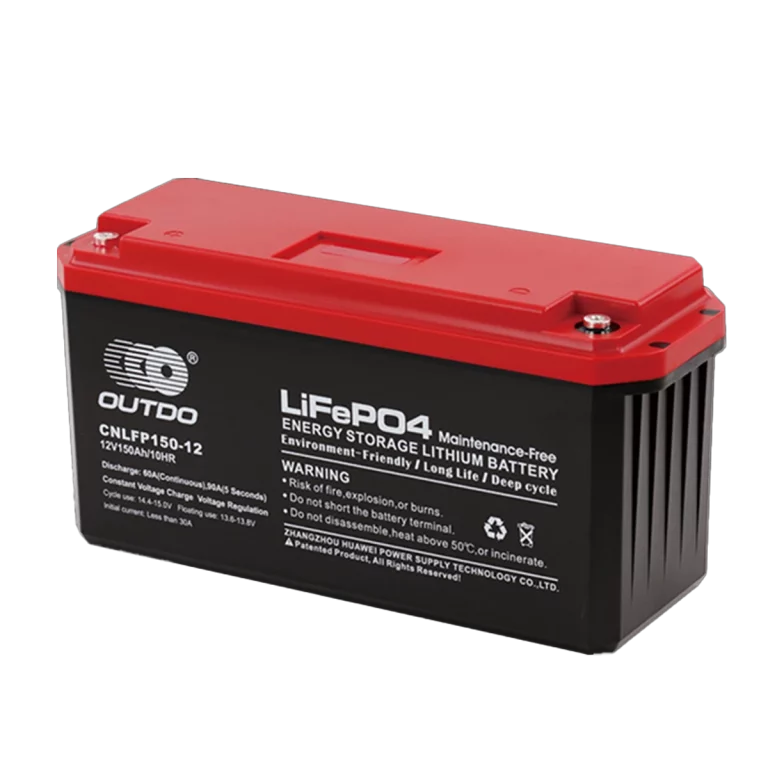

Black and red Outdo CNLFP150-12 Lithium Iron Phosphate battery for energy storage, 12V 150Ah.

Lithium-ion Energy Storage Battery

Name: Lithium-ion Energy Storage Battery
Brand: OUTDO

Power Supply Battery

The LiFePO4 Energy Storage Battery delivers safe, reliable, and long-lasting energy with advanced LiFePO4 cells. It offers excellent deep-cycle performance, fast charging, high-current discharge, and a lightweight design. With its highly waterproof construction and easy maintenance, it provides a convenient and dependable energy storage solution.

Contact Sales Download Lithium-Ion Battery Catalogue (PDF)

Key Features of Our LiFePO4 Storage Battery

LiFePO4 Cell Chemistry

Environmentally friendly cells deliver a long service life, deep discharge capability, light weight, and high safety.

Fast Charge & High-Current Discharge

Charges at 50A and discharges at 120A continuously, with a 180A peak discharge for demanding loads.

IP66+ Waterproof Design

A high-waterproof enclosure rated above IP66 stands up to harsh outdoor and industrial environments.

Easy Install, Maintenance-Free

Install in any orientation and run it maintenance-free for the life of the battery.

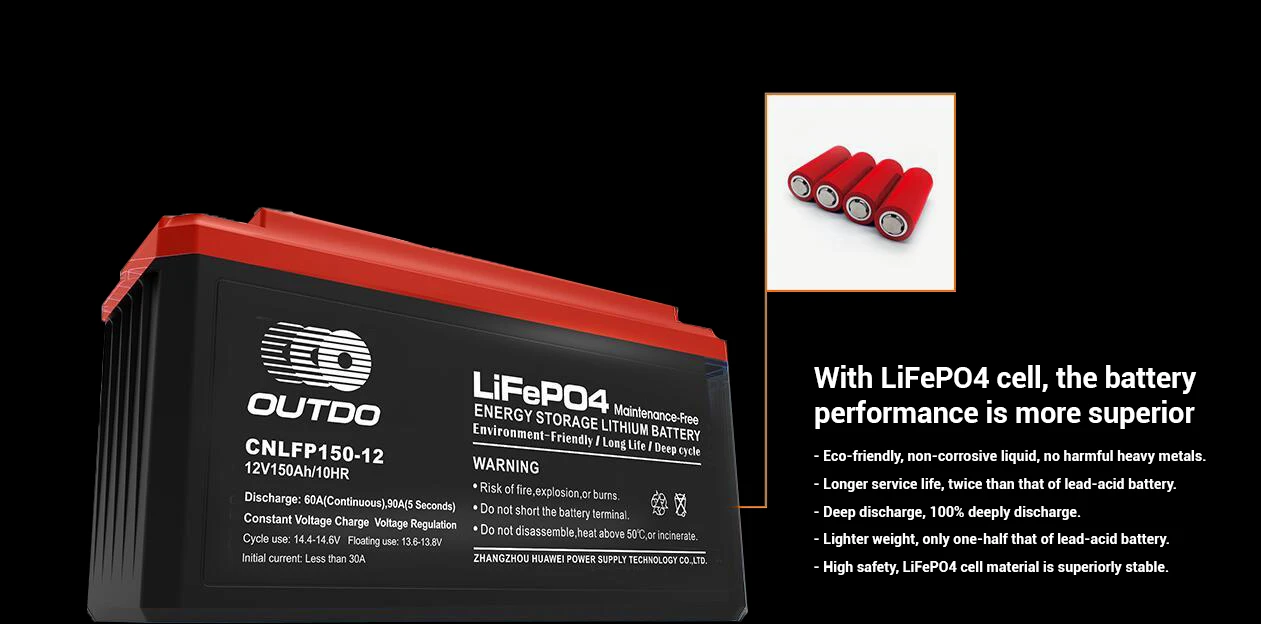

OUTDO CNLFP150-12 LiFePO4 energy storage battery (12V 150Ah) shown beside a cluster of cylindrical LiFePO4 cells

LiFePO4 Cells Deliver Superior Performance

Eco-friendly chemistry with no corrosive liquid and no harmful heavy metals.
Service life up to twice that of a comparable lead-acid battery.
Full deep-discharge capability, usable to 100% depth of discharge.
About half the weight of an equivalent lead-acid battery.
High safety from inherently stable LiFePO4 cell material.

LiFePO4 Storage Battery Safe Use Precautions

I. Safety Precautions

Do not disassemble, repair, or modify the system. It contains sulfuric acid and lead, which can be harmful to people and the environment.
Do not short-circuit the positive and negative terminals of the system or battery pack, as this may cause electric shock, fire, or equipment failure.
Ensure that all terminal bolts are securely tightened. Loose connections may lead to overheating and increase the risk of fire.
Keep the system away from oil, water, and other chemicals, as exposure may result in electric shock, fire, or malfunction.
Always disconnect the main power supply before installation or wiring to avoid the risk of electric shock.
Do not connect the system to a power source exceeding the rated voltage, as this may cause fire or damage to the system.
Do not use the system directly as an AC power source. If AC output is required, use appropriate equipment such as a UPS.
Keep the system away from flames, heat sources, and high-temperature environments to prevent the risk of explosion.
During charging, small amounts of gas may be generated. Ensure proper ventilation and use the system in a well-ventilated area.

II. LiFePO4 Storage Battery Precautions for Use

Do not store or use the system under the following conditions, as this may cause malfunction, acid leakage, or electrical hazards:
- Outdoor environments exposed to rain or direct sunlight
- Areas with heavy fog or freezing conditions
- Locations with corrosive gases
- Highly humid or dusty environments
- Areas subject to strong vibrations or mechanical shock
The system should be stored in a cool, dry, and clean environment.
LCD Screen Maintenance
- Do not place heavy objects on or apply pressure to the control panel
- Keep the screen and interfaces clean and dry at all times
- Regularly check the system display for proper operation
- Pay attention to any buzzer alarms
- Respond promptly to any system alarms
The LCD screen and internal circuit board must be protected from water and moisture. Use in high-humidity environments may result in abnormal operation of the system.

Every model in this series. Filter by voltage or type, or search a model number.

Voltage

Type

Search model number

Showing 35 of 35 models

CNLFP4-6

12V Type

Voltage: 6.4V
Capacity: 4Ah
Standard Power: 25.6Wh
Dimensions (L x W x H): 71 x 48 x 100 x T107 mm

More specifications

Type: 12V Type
Terminal: F1
Polarity: + -
Charge Current: 0.8A
Fast Charge Current: 2A
Max Current: 2A
Weight: 0.37 kg
Lead-Acid Equivalent: OT3-12(GEL)
Part Number: 302150036-00022

Model	Battery	Voltage (V)	Capacity (Ah)	Standard Power (Wh)	Terminal	Polarity	Charge Current (A)	Fast Charge Current (A)	Max Current (A)	Dimensions±2 (mm)	Weight±3% (KG)	Lead-acid Battery Model	P/N	Datasheet
CNLFP4-6	12V Type	6.4	4	25.6	F1	+ -	0.8	2	2	7148100*T107	0.37	OT3-12(GEL)	302150036-00022
CNLFP4-12	12V Type	12.8	4	51.2	F2	+ -	0.8	2	4	9172100*T105	0.53	OT4-12(GEL)	302150036-00023	PDF
CNLFP5-12	12V Type	12.8	5	64	F2	+ -	1	2.5	4	9172100*T105	0.63	OT5-12(GEL)	302150036-00024

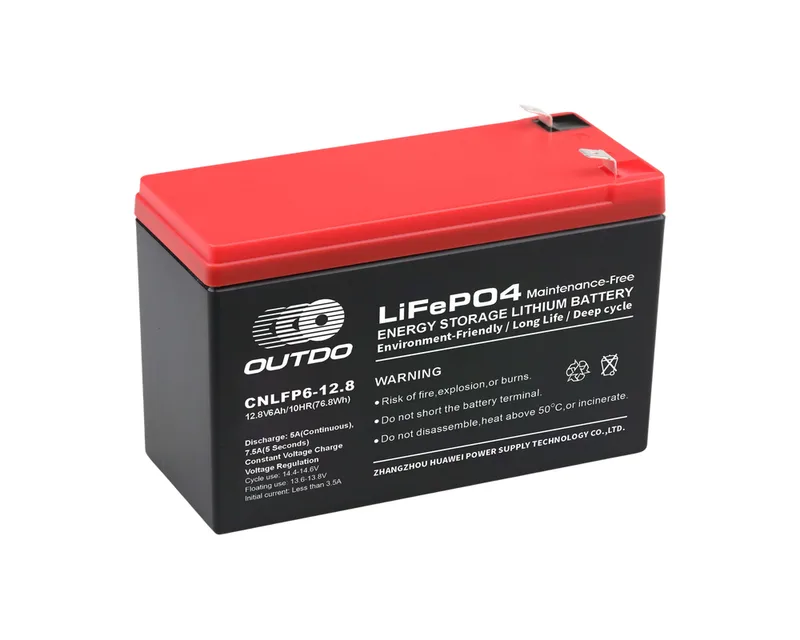

CNLFP6-12	12V Type	12.8	6	76.8	F2	+ -	1.2	3	5	1516495*T100	0.8	OT7-12(GEL)	302150036-00017
CNLFP8-12	12V Type	12.8	8	102.4	F2	+ -	1.6	4	5	1516495*T100	0.86	OT7.5-12(GEL)	302150036-00025
CNLFP10-12	12V Type	12.8	10	128	F2	+ -	2	5	10	1516495*T100	1.11	OT10-12(GEL)	302150036-00026

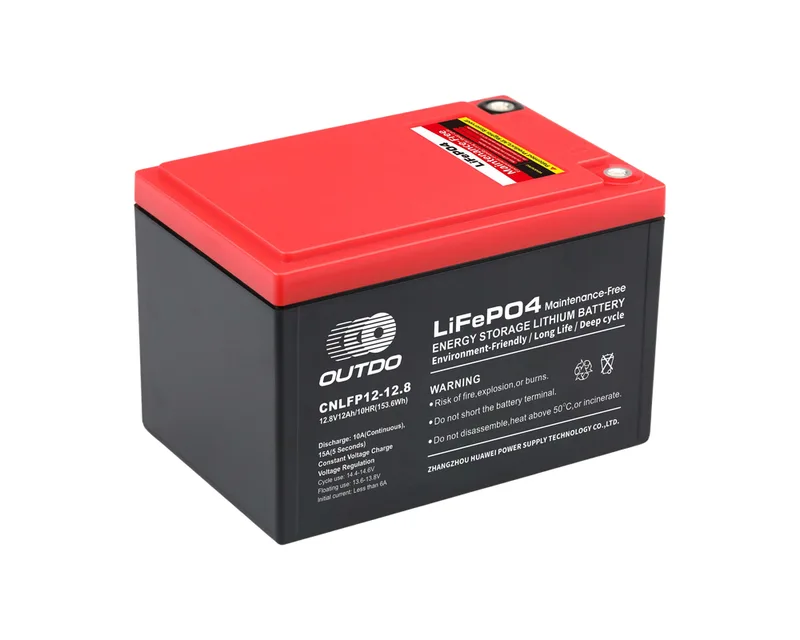

CNLFP12-12	12V Type	12.8	12	153.6	F2	+ -	2.4	6	10	151100102*T105	1.58	OT12-12(GEL)	302150036-00027	PDF

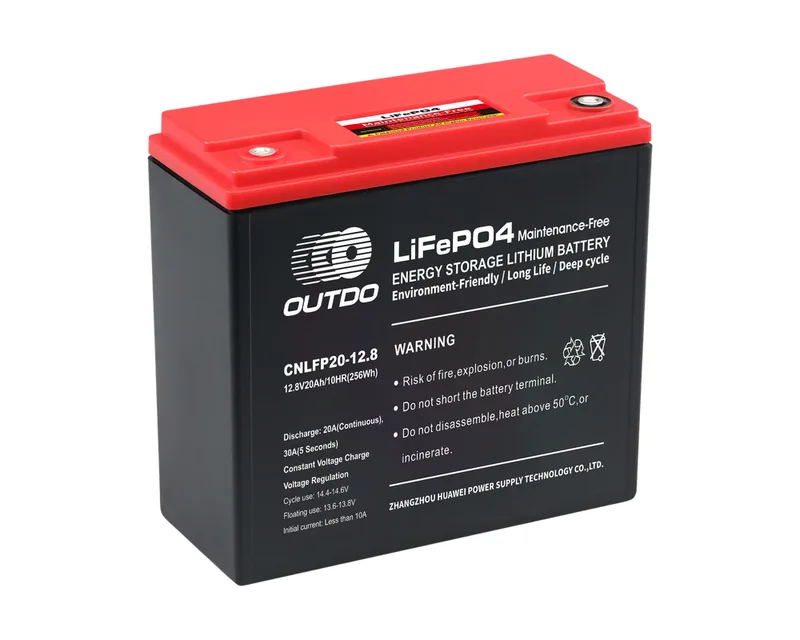

CNLFP20-12	12V Type	12.8	20	256	LC1	+ -	4	10	20	18479172	2.93	OT20-12(GEL)	302150036-00005	PDF

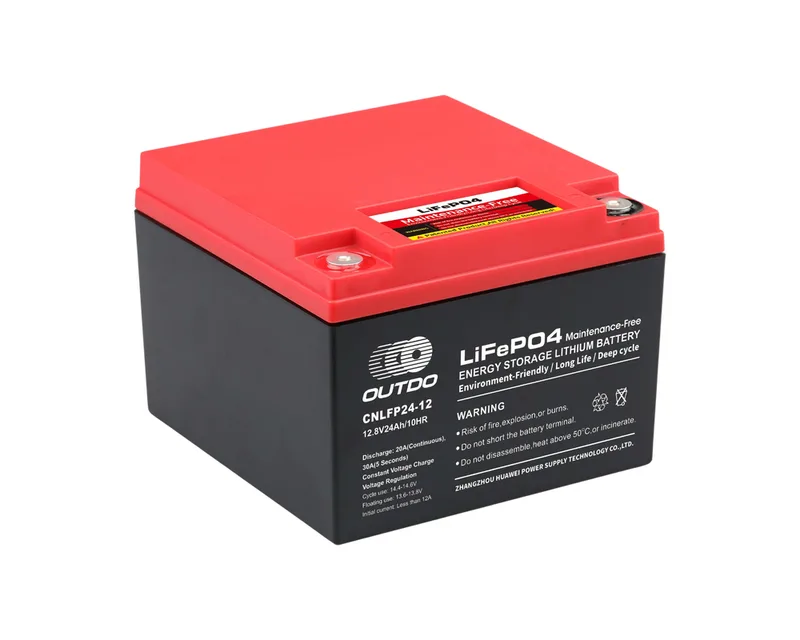

CNLFP24-12	12V Type	12.8	24	307.2	LC2	+ -	4.8	12	20	166175126	3.08	OT24-12(GEL)	302150036-00028	PDF

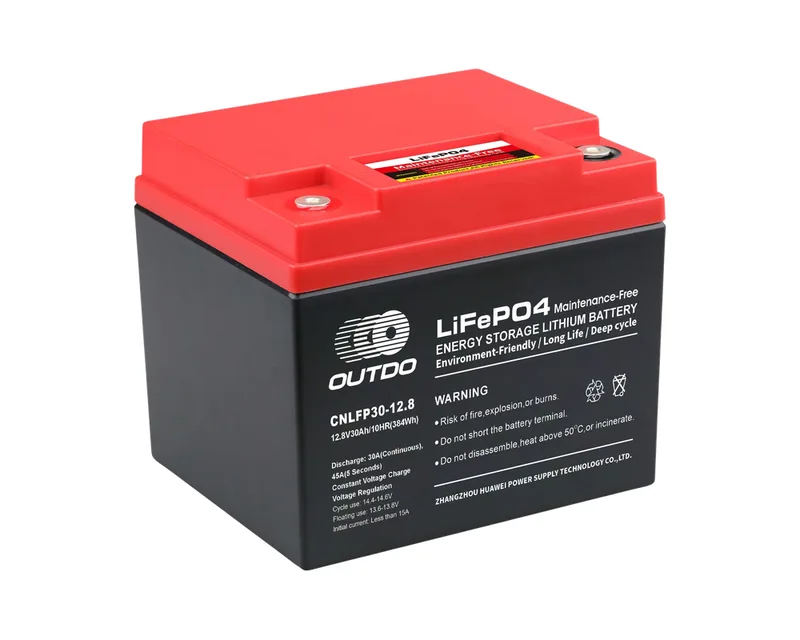

CNLFP30-12	12V Type	12.8	30	384	LC3	+ -	6	15	30	197166173	4.4	OT38-12(GEL)	302150036-00072

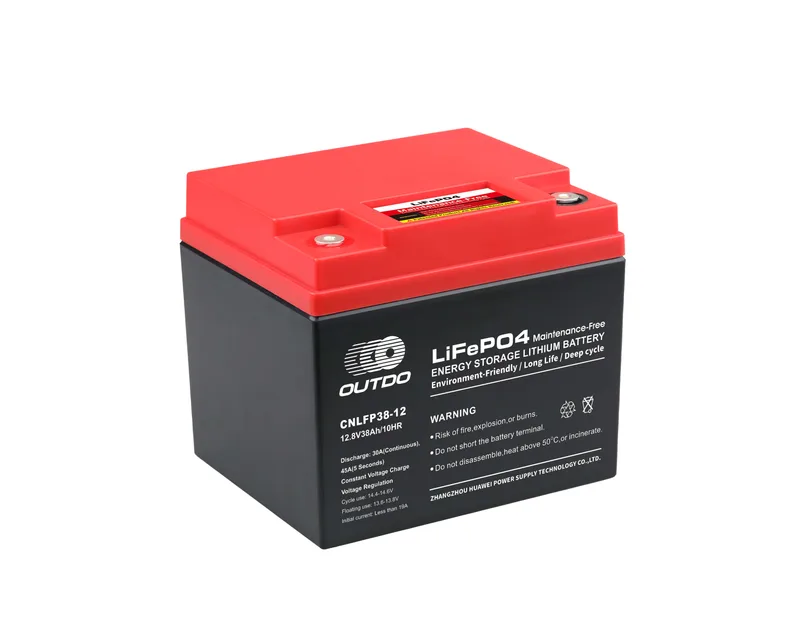

CNLFP38-12	12V Type	12.8	38	486.4	LC3	+ -	7.6	19	38	197166173	5.08	OT38-12(GEL)	302150036-00029	PDF
CNLFP55-12	12V Type	12.8	55	704	LC5	+ -	11	27.5	55	228138215	7.3	OT55-12(GEL)	302150036-00030	PDF

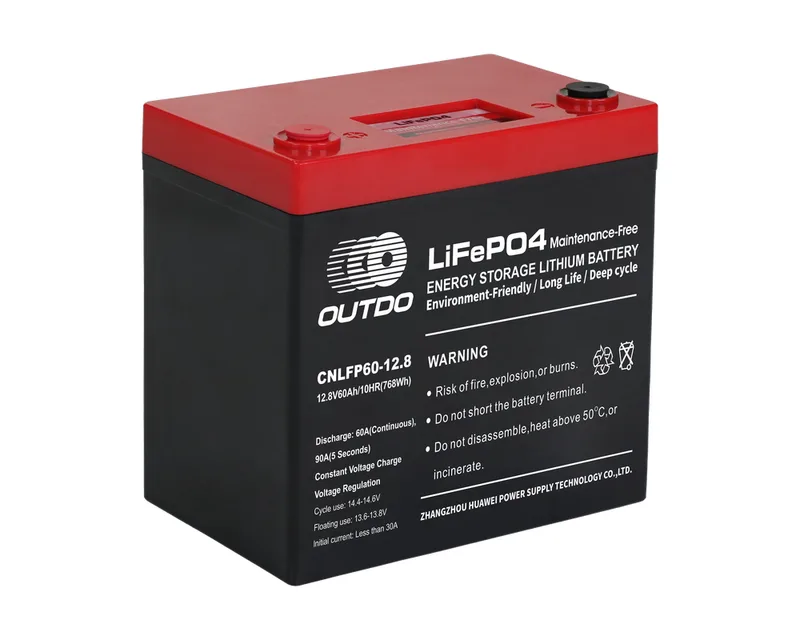

CNLFP60-12	12V Type	12.8	60	768	LC4	+ -	12	30	60	358166173	7.5	OT60-12(GEL)	302150036-00031	PDF

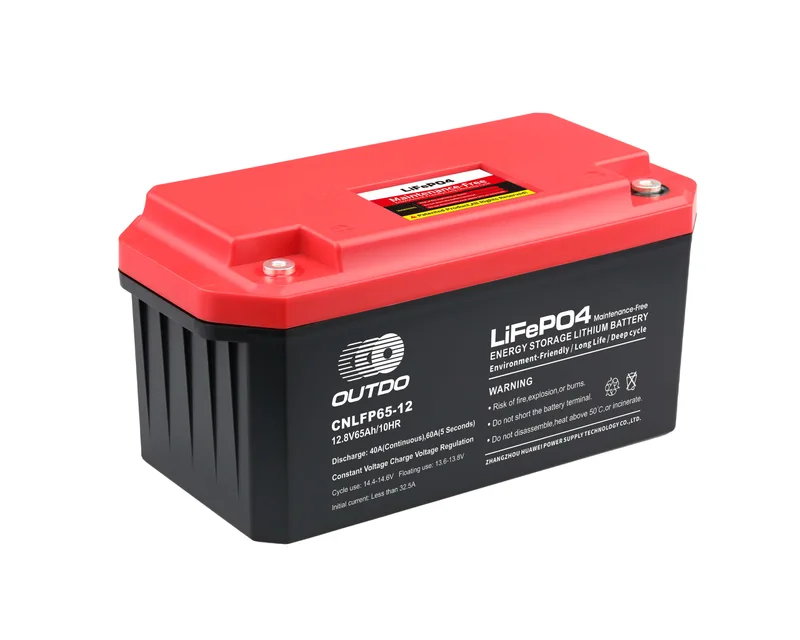

CNLFP65-12	12V Type	12.8	65	832	LC4	+ -	13	32.5	60	358166173	7.8	OT65-12(GEL)	302150036-00032	PDF
CNLFP75-12	12V Type	12.8	75	960	LC5	+ -	15	37.5	60	260170215	9.3	OT75-12(GEL)	302150036-00033	PDF
CNLFP80-12	12V Type	12.8	80	1024	LC4	+ -	16	40	60	331173220	9.9	OT80-12(GEL)	302150036-00034	PDF

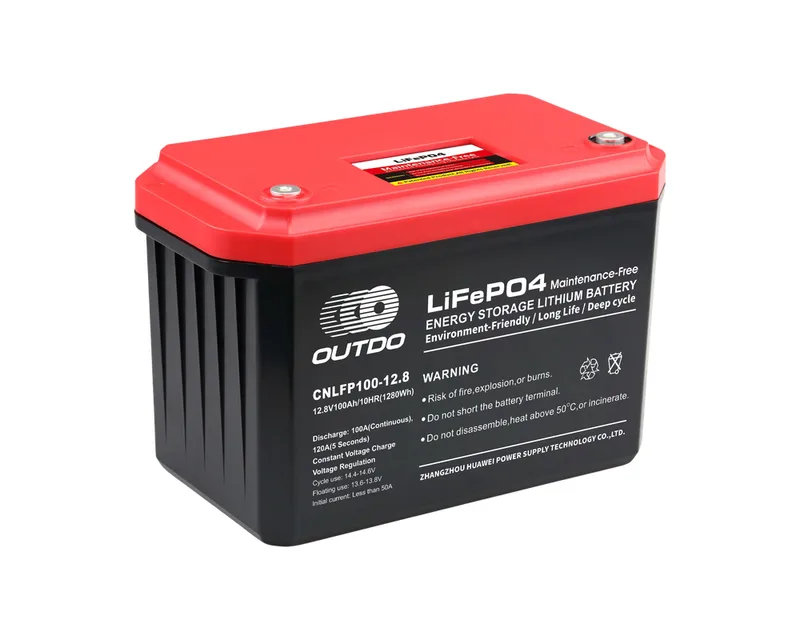

CNLFP100-12	12V Type	12.8	100	1280	LC4	+ -	20	50	60	331173220	11.7	OT100-12(GEL)	302150036-00035	PDF
CNLFP120-12	12V Type	12.8	120	1536	LC4	+ -	24	60	60	331173220	13.7	OT120-12(GEL)	302150036-00036

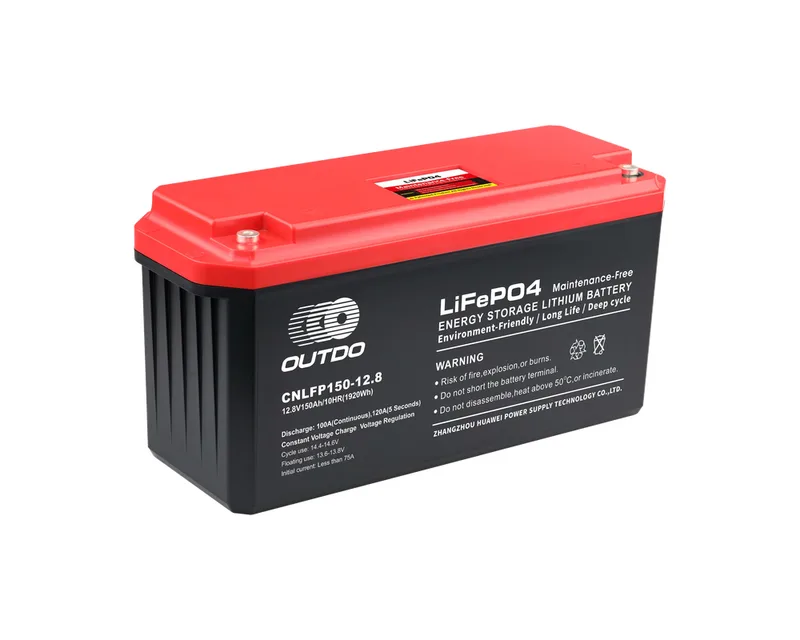

CNLFP150-12	12V Type	12.8	150	1920	LC4	+ -	30	60	60	484170241	17.9	OT150-12(GEL)	302150036-00037	PDF

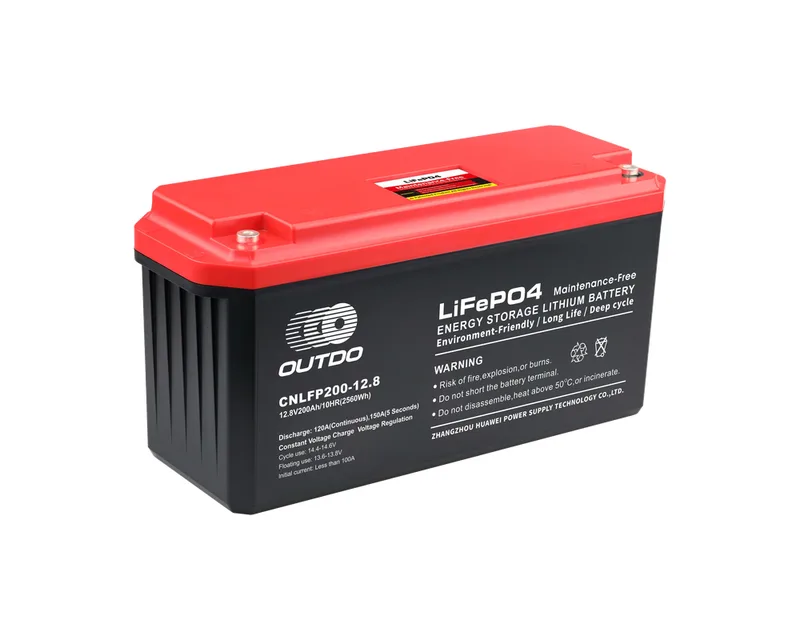

CNLFP200-12	12V Type	12.8	200	2560	LC4	+ -	40	60	60	484170241	22.25	OT200-12(GEL)	302150036-00038	PDF

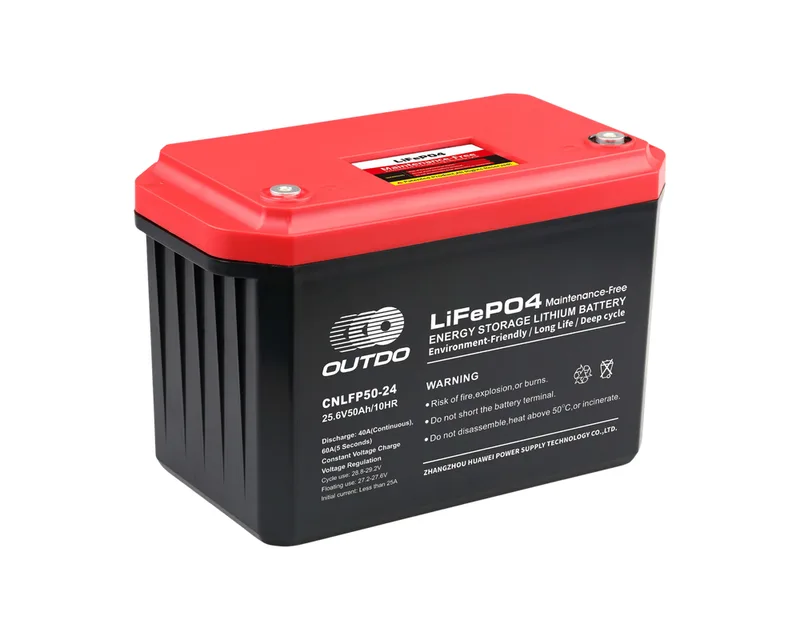

CNLFP50-24	24V Type	25.6	50	1280	LC4	+ -	10	25	40	331173220	10.8	/	302150036-00039
CNLFP100-24	24V Type	25.6	100	2560	LC5	+ -	20	50	60	522240222	23.1	/	302150036-00040
CNLFP120-24	24V Type	25.6	120	3072	LC5	+ -	24	60	60	522240222	27.96	/	302150036-00041
CNLFP50-12(F)	12V Type	12.8	50	640	LC5	+ -	10	25	50	228138215	5.8	OT50-12(GEL)	302150036-00042
CNLFP60-12(F)	12V Type	12.8	60	768	LC4	+ -	12	30	60	260170215	6.8	OT60-12(GEL)	302150036-00043
CNLFP75-12(F)	12V Type	12.8	75	960	LC4	+ -	15	37.5	75	331173220	8.5	OT75-12(GEL)	302150036-00044	PDF

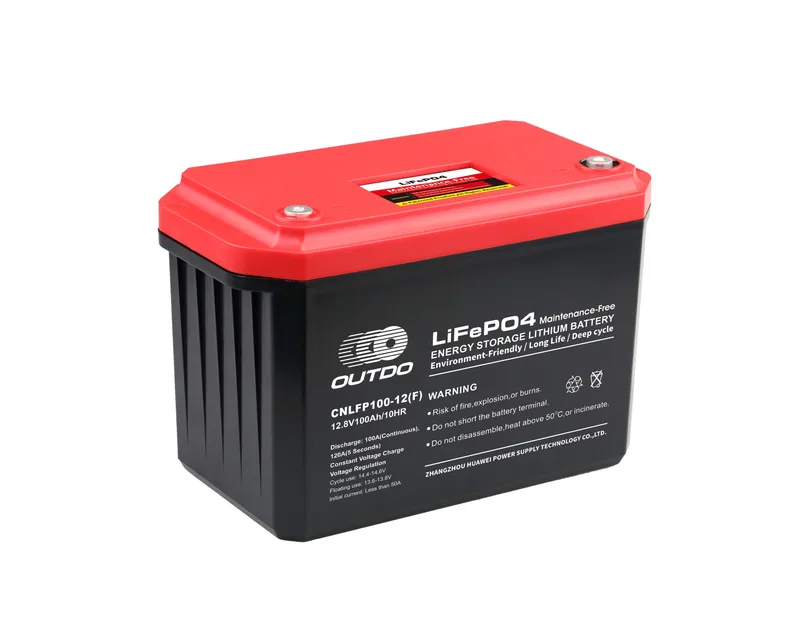

CNLFP100-12(F)	12V Type	12.8	100	1280	LC4	+ -	20	50	100	331173220	11.2	OT100-12(GEL)	302150036-00045	PDF

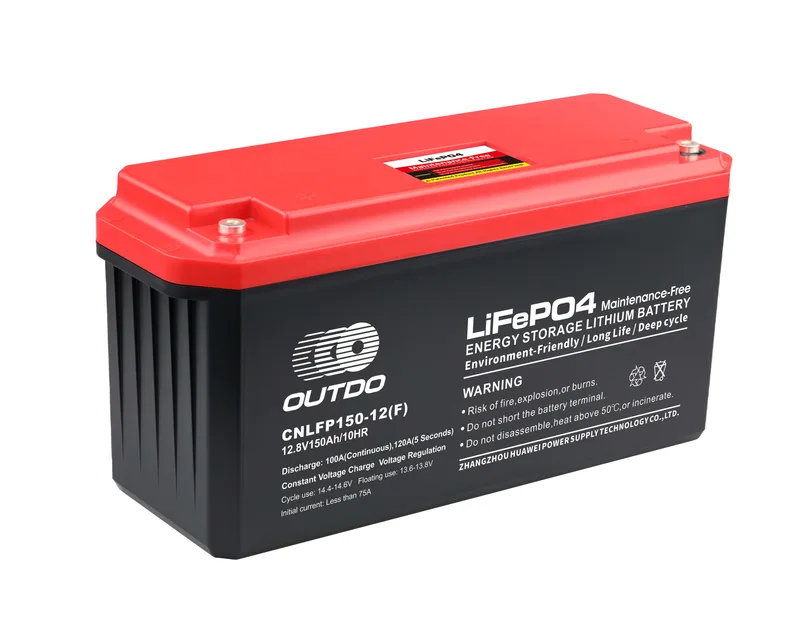

CNLFP150-12(F)	12V Type	12.8	150	1920	LC4	+ -	30	75	100	484170241	14.3	OT150-12(GEL)	302150036-00046	PDF
CNLFP200-12(F)	12V Type	12.8	200	2560	LC4	+ -	40	100	100	522240222	19.3	OT200-12(GEL)	302150036-00047
CNLFP50-48(F)	48V Type	48	50	2400	TC1002	+ -	10	50	50	484430134	25	/	302150036-00074
CNLFP80-48(F)	48V Type	48	80	3840	TC1002	+ -	16	80	80	484500178	40	/	302150036-00075
CNLFP100-48(F)	48V Type	48	100	4800	TC1503	+ -	20	100	100	484500178	42	/	302150036-00076
CNLFP120-48(F)	48V Type	48	120	5760	TC1503	+ -	24	100	100	484500223	54	/	302150036-00077
CNLFP150-48(F)	48V Type	48	150	7200	TC2003	+ -	30	100	100	484680178	68	/	302150036-00078
CNLFP200-48(F)	48V Type	48	200	9600	TC2003	+ -	40	100	100	484550223	85	/	302150036-00079
