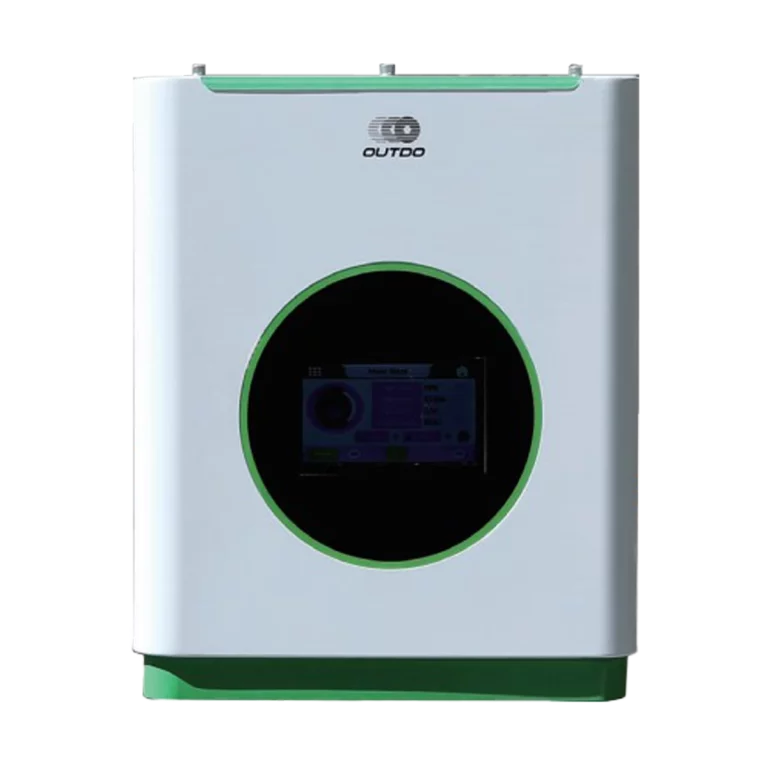

Semi-Solid Wall Mounted
Semi-Solid Lithium Ion Wall Mounted Storage
The Semi-Solid Lithium-Ion Wall-Mounted Energy Storage Battery is a safe, reliable, and space-saving energy storage solution designed for flexible residential and commercial applications. Featuring a customized BMS communication protocol and broad inverter compatibility, it enables efficient and reliable energy management. Its compact, lightweight design makes transportation and installation easy, while customizable colors and appearance provide flexible options for different applications.
Key Features of Our Semi-Solid Wall-Mounted Battery
High-Level Security Standard
A ceramic-material versatile diaphragm produces no smoke, fire, or explosion in the puncture test.
Lighter Weight & Smaller Volume
Energy density of at least 170 Wh/kg, around 45% of the weight and volume of a comparable lead-acid battery.
Wide Working Temperature Range
Operates reliably across a -20°C to 60°C range.
APP Intelligent Monitoring
Monitor the battery from the app over Bluetooth or Wi-Fi.
Longer Cycle Life
More than 5,000 cycles at 100% depth of discharge.
BMS Intelligent Management
Built-in reliable BMS with charge and discharge protection and real-time monitoring.

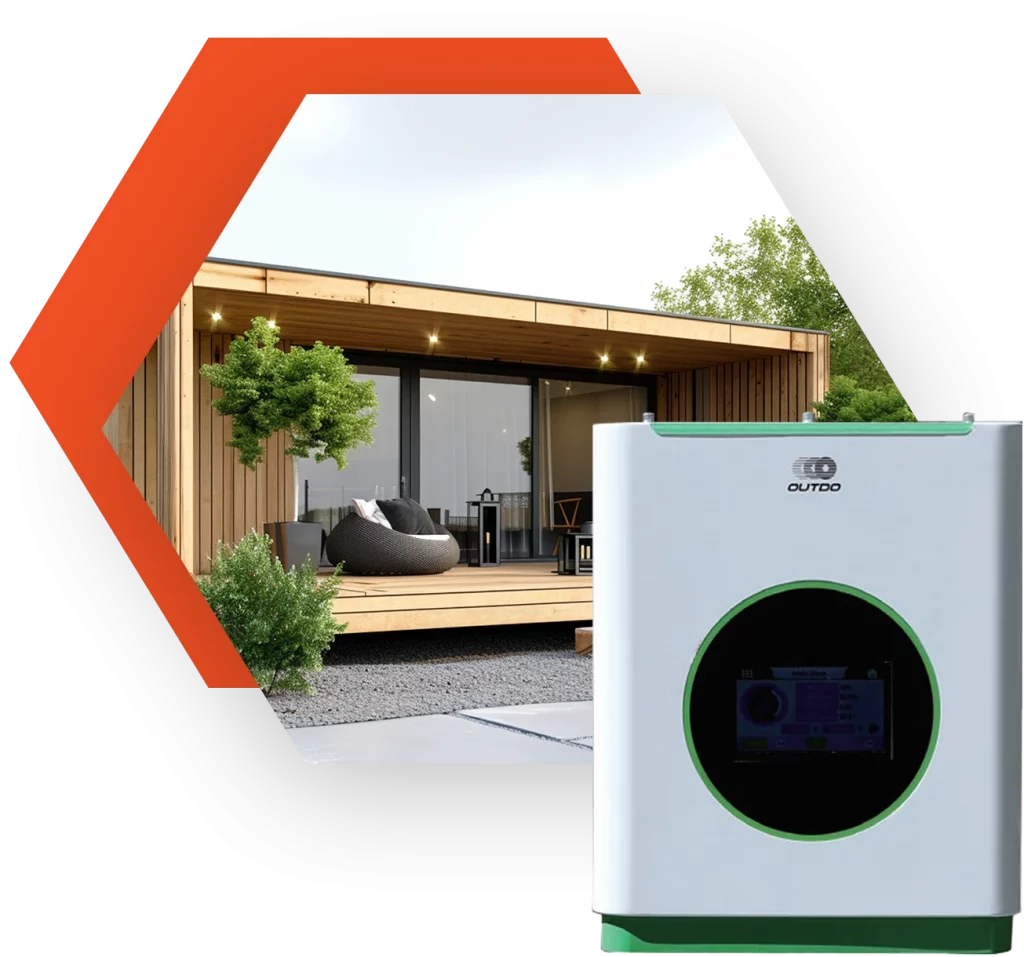

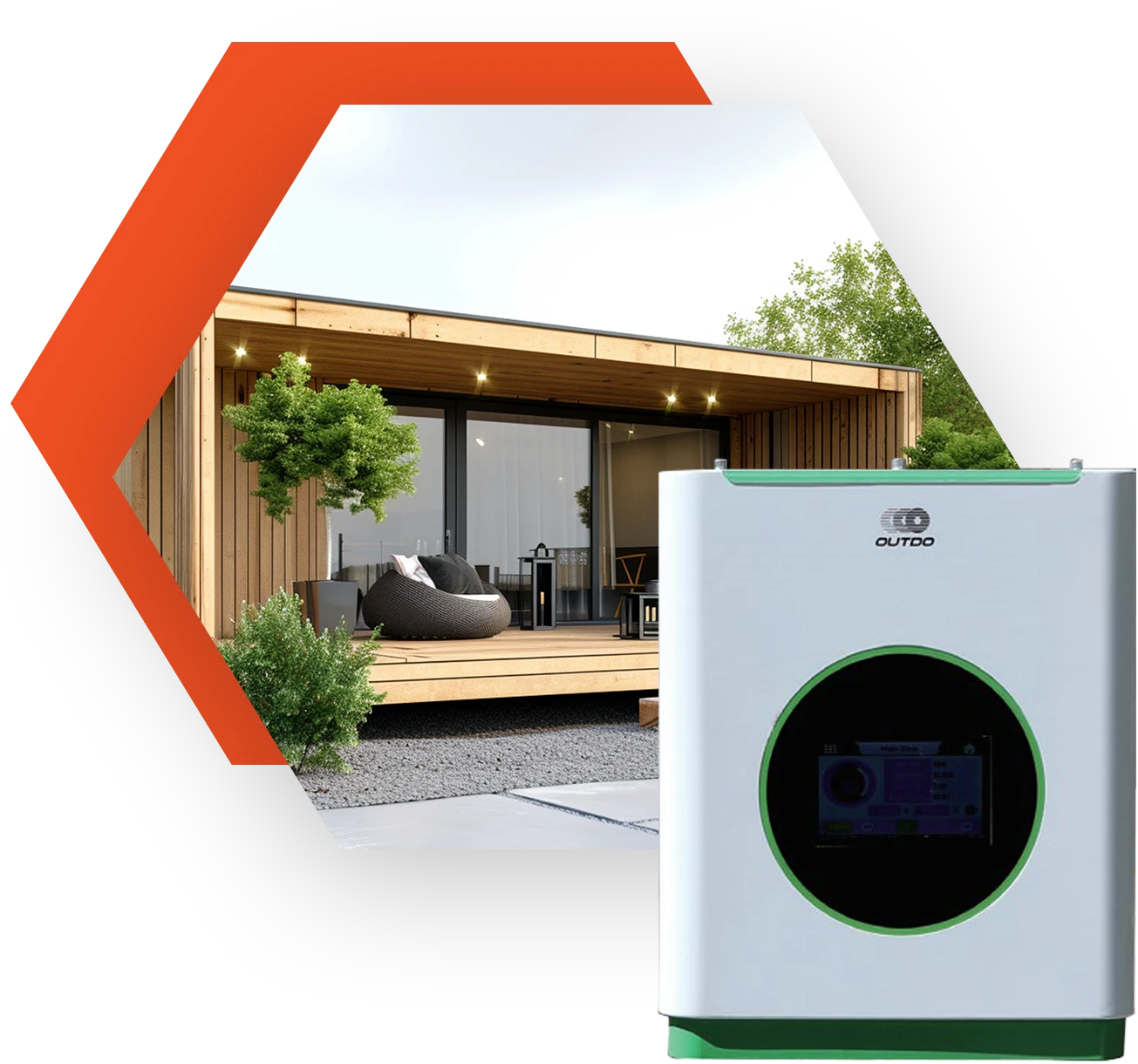

APPLICATION
- •Uninterrupted energy
- •Home backup
- •Hospitals
- •Banks
- •Small businesses
- •Small base stations
- •Backup power systems
- •Data processing centers
| Model | Series | Standard Communication Interface | Voltage (V) | Series/Parallel Connection | Standard Capacity (Ah) | Standard Power (Wh) | Standard Charge Current (A) | Max Charge Current (A) | Standard Discharge Current (A) | Max Discharge Current (A) | BMS | Dimensions±2 (mm) | Weight±3% (KG) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BGSSS100-51.2 | 51.2V | 486 233 CAN | 51.2 | 16S1P | 100 | 5120 | 20 | 100 | 20 | 100 | 100 | 550*459*175*H185 | 48 |
