Stacking System
Lithium Ion Stacking System
The stacking system lithium iron phosphate series batteries are customized with the BMS communication protocol, which is safe and reliable, and supports the corresponding inverter system. Compared with similar products, it has the smallest volume to save space and it is easy to transport. The appearance and color can be customized.
OUTDO
Stacking System
APPLICATION
- Home Energy Storage System
- Photovoltaic Energy Storage System
- Lithium battery replace the lead acid battery
- AGV, construction machinery
- High Voltage Energy Storage System

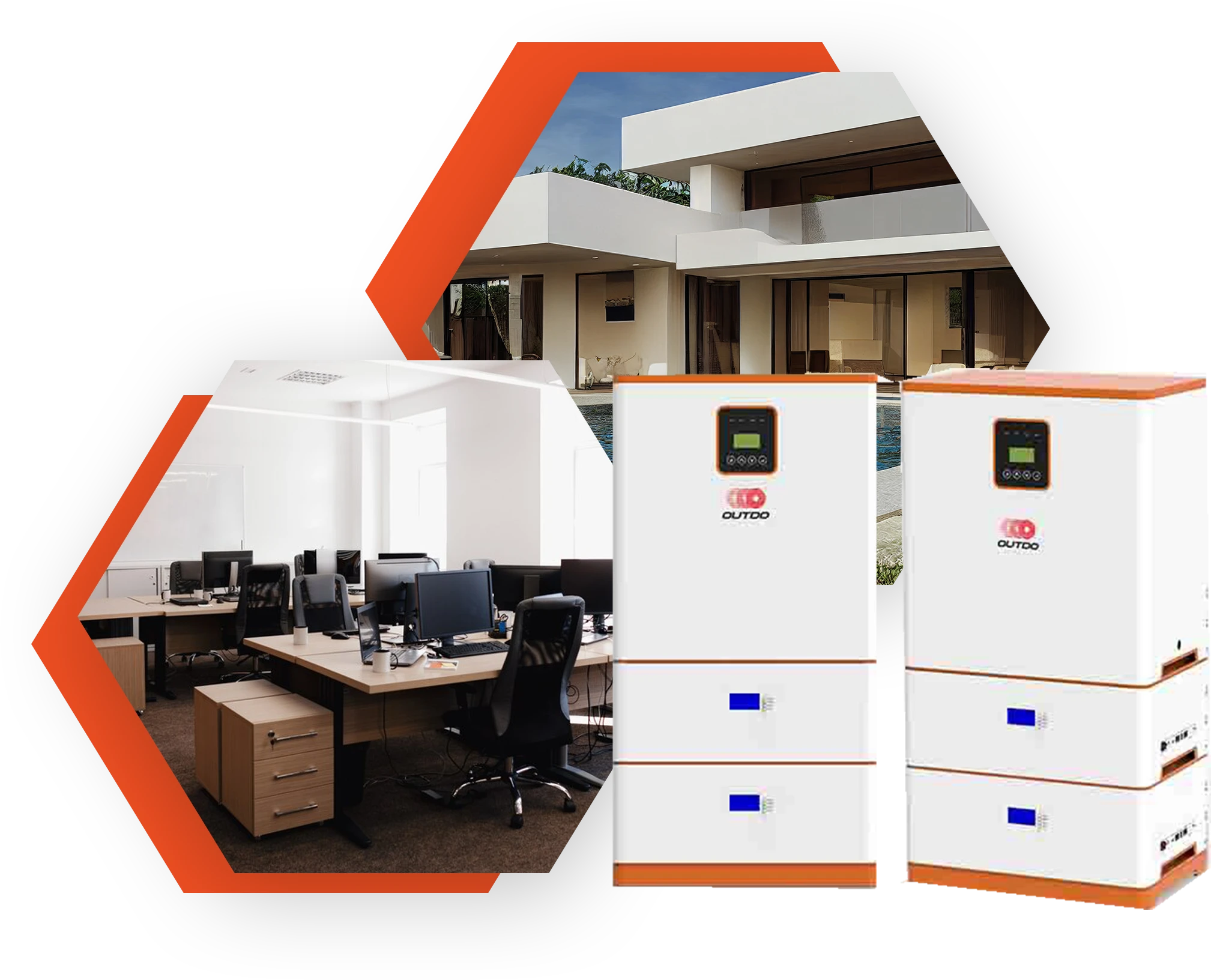

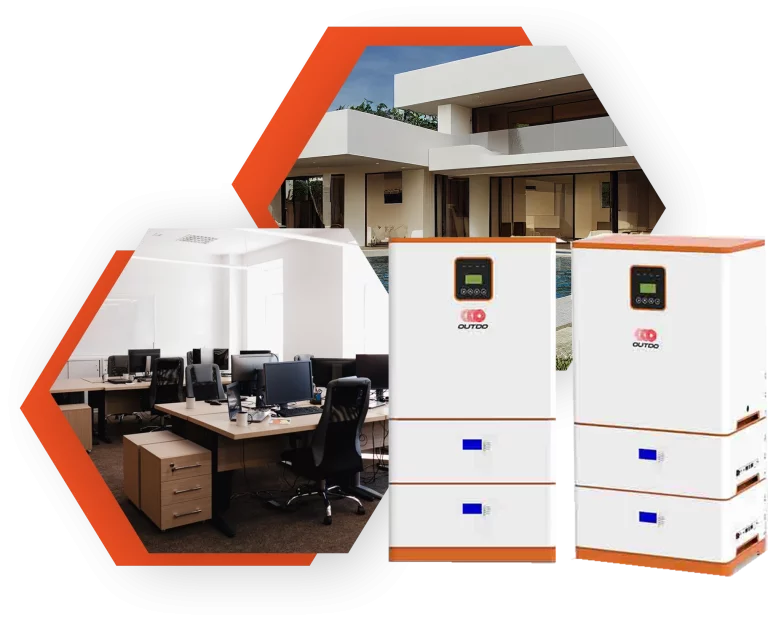

PRODUCT DETAIL

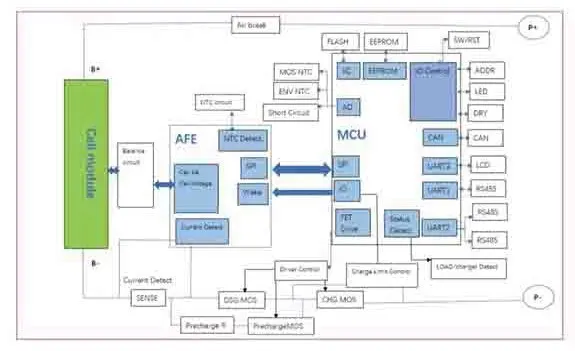

SYSTEM DIAGRAM
- When communicating with the smart inverter, it comes with 485 and CAN communication.
- Use with off-grid ordinary inverters.
- Use with 48V DC load.
- The same series and models can be used in parallel, and a maximum of 15 parallel connections are supported.
- The use of a single battery product is that the output load power is less than 4500w.
Related Products
| Series | Model | Standard Communication Interface | Voltage (V) | Parallel Connection | Standard Capacity (Ah) | Standard Power (Wh) | Max Charge Current (A) | Standard Charge Current (A) | Max Discharge Current (A) | Standard Discharge Current (A) | BMS | Dimensions±2 (mm) | Weight±3% (KG) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48V | DDLFP160-48 | 485 232 CAN | 48 | 15S1P | 160 | 7680 | 20 | 90 | 32 | 100 | 100 | 635*400*217 | 63 | |
| 48V | DDLFP200-48 | 485 232 CAN | 48 | 15S1P | 200 | 9600 | 30 | 90 | 40 | 100 | 100 | 635*400*266 | 81 | |
| 48V | DDLFP230-48 | 485 232 CAN | 48 | 15S1P | 230 | 11040 | 46 | 90 | 46 | 100 | 100 | 635*400*266 | 85 | |
| 51.2V | DDLFP160-51.2 | 485 232 CAN | 51.2 | 16S1P | 160 | 8192 | 20 | 90 | 32 | 100 | 100 | 635*400*217 | 66 | |
| 51.2V | DDLFP200-51.2 | 485 232 CAN | 51.2 | 16S1P | 200 | 10240 | 30 | 90 | 40 | 100 | 100 | 635*400*266 | 85 | |
| 51.2V | DDLFP230-51.2 | 485 232 CAN | 51.2 | 16S1P | 230 | 11776 | 46 | 90 | 46 | 100 | 100 | 635*400*266 | 89 |
