YB3L-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 3Ah
- CCA (-18°C)
- 35A
- Dimensions (L x W x H)
- 98 x 56 x 109 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.19 kg
- Terminal
- C6
- Charge Current
- 0.3A
- Meter CCA
- 80A
DS-iGEL
Motorcycle Battery
DS-iGEL is an intelligent motorcycle battery equipped with an LCD display that monitors battery status in real time and records battery usage days. It alerts users when abnormal voltage or low capacity is detected, helping ensure timely maintenance and extending battery service life.
Key Features of Our DS-iGEL Battery
100% Pre-Delivery Tested
Every battery passes a full pre-delivery inspection, so quality is guaranteed.

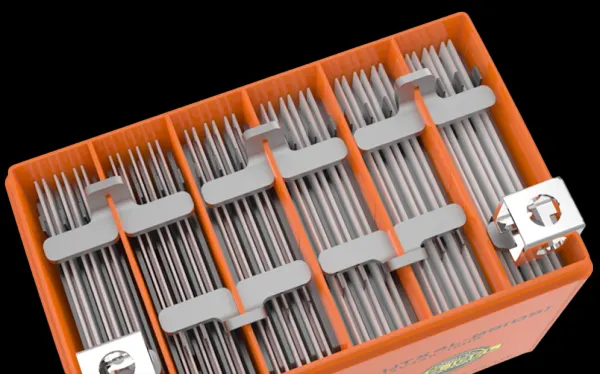

Pb-Ca Grid Alloy
Lead-calcium grid alloy plates keep water loss low for stable, long-term quality.
Maintenance-Free
Sealed and maintenance free, with a low self-discharge rate.
Patented Chip Design
Exclusive patented design with a built-in electronic chip.
Ready to Use
Convenient to use directly, with no acid filling needed before first use.

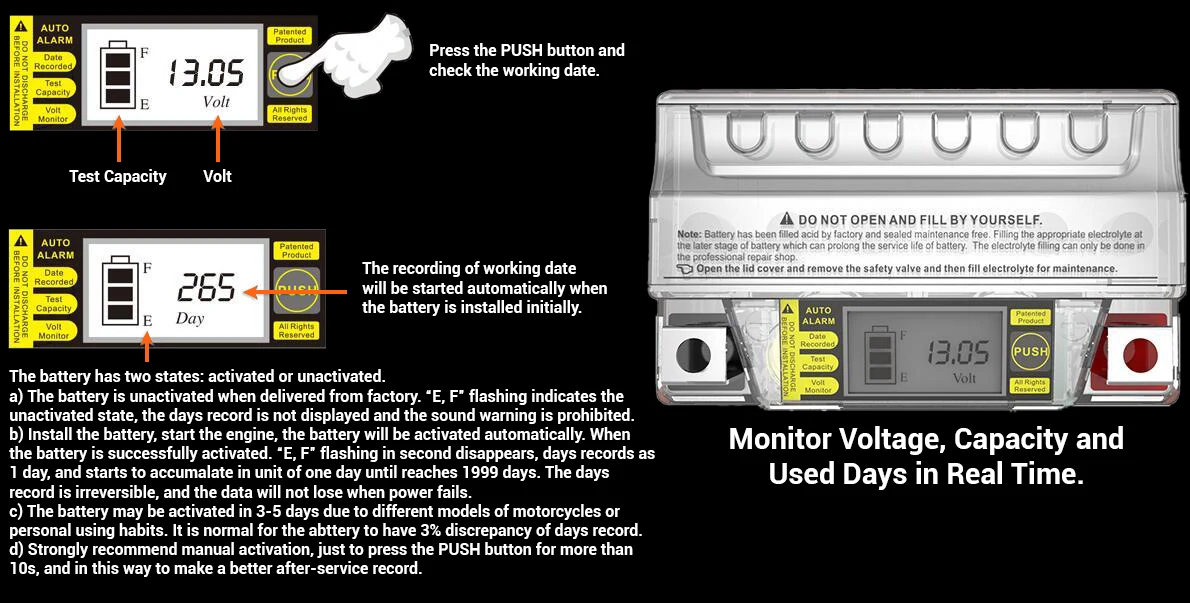

Monitor Voltage, Capacity and Used Days in Real Time
- Press the PUSH button to read the battery voltage, the remaining capacity and the number of days the battery has been in service.
- The usage-day record starts automatically at first installation, counts up one day at a time to a maximum of 1,999 days, cannot be reset, and is kept even when power is lost.
- Flashing E and F marks mean the battery is not activated yet, so the day count stays hidden and the alarm is muted.
- After installation, starting the engine activates the battery automatically within 3 to 5 days, depending on the motorcycle and riding habits. A day-count variance of about 3% is normal.
- For the most accurate service record, hold the PUSH button for more than 10 seconds to activate the battery manually.
The LCD activates automatically when the engine starts and shows live voltage and usage days.

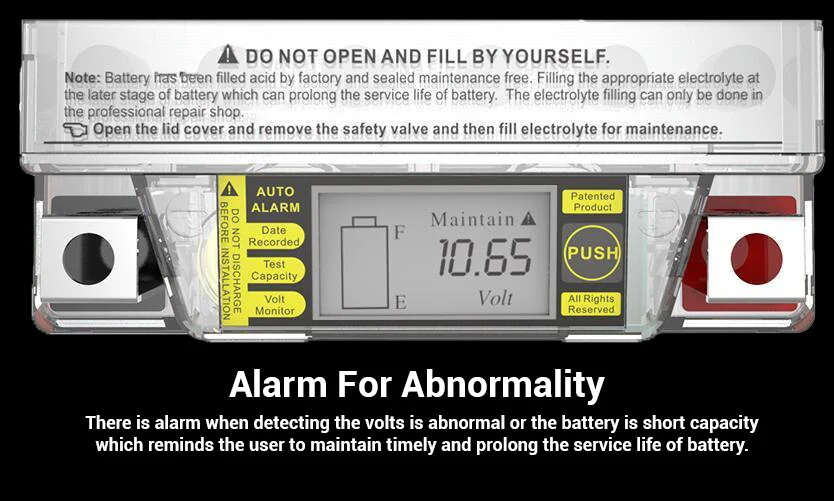

Alarm for Abnormality
When the battery detects abnormal voltage or low capacity, it triggers an alarm to prompt timely maintenance and help extend the battery's service life.

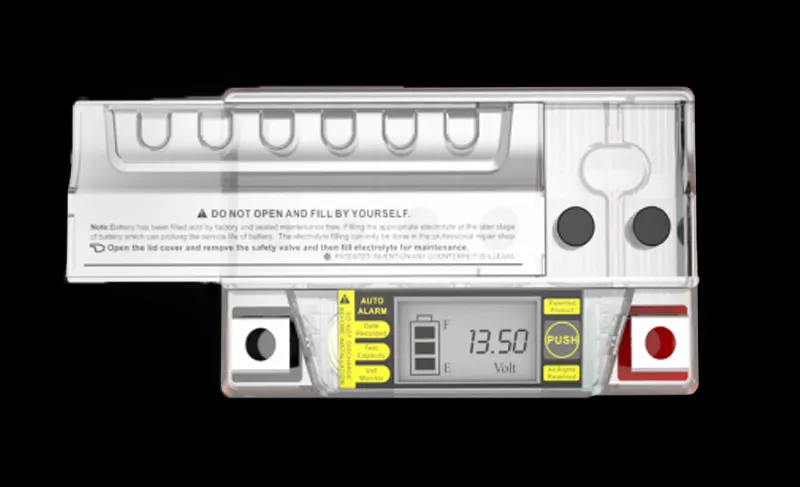

Push-to-open Lid Cover
Adding acid for maintenance by opening lid cover to prolong the battery service life.
Injected with Gel electrolyte instead of acid, the battery is of super performance
- •Higher capacity.
- •Good performance in the low temperatures, can meet requirements of starting currents in -30℃ to -50℃.
- •Stable characteristic in high temperatures, can meet requirements of its usage in temperature of 65℃ and even higher.
- •Longer cycle service life than normal lead acid battery type.
DS-iGEL Safe Use Precautions
I. Warning
- The electrolyte inside the battery is corrosive and may damage metal, cotton products, and stone. Handle the battery properly.
- Do NOT place the battery on its side or upside down to prevent acid leakage.
- Hydrogen gas may be generated during battery operation and charging. If exposed to fire or sparks, it may cause an explosion. Please observe the following precautions:
- Use and maintain the battery in a well-ventilated area.
- Keep sparks and open flames away during battery maintenance.
- If the battery is charged outside the vehicle, do not install it immediately after charging. Let it rest for at least 10 minutes to allow hydrogen gas to dissipate.
- After riding, do not remove the battery immediately. Let it rest for at least 10 minutes.
- During charging, the ambient temperature should not exceed 45°C. If it does, cool the battery with water or reduce the charging current and voltage.
- Do NOT place metal tools or conductive materials near the terminals to avoid short-circuiting.
- Do NOT strike the terminals with a hammer during battery installation.
- Handle the battery carefully during transportation to avoid impact or damage.
II. DS-iGEL Installation and Maintenance
- Connect the positive terminal first. Do NOT reverse the polarity, otherwise the motorcycle's electrical equipment may be damaged.
- Activation Notice:
- Some batteries may not be activated immediately due to differences in vehicle performance. Start the engine several times or gently apply the throttle to help activate the battery more easily.
- Manual activation is recommended to ensure the exact activation date is recorded.
- During acid filling, wear acid-resistant clothing, rubber boots, safety goggles, and rubber gloves. If acid splashes onto skin or clothing, rinse immediately with a large amount of water. Seek medical attention if necessary.
- Do NOT over-discharge the battery. Recharge the battery promptly after it has been discharged.
- Disconnect the negative terminal if the motorcycle will not be used for a long period.
- Do NOT check whether the battery has power by short-circuiting the terminals.
- Regularly check the terminal connections and ensure the terminals are clean to maintain good contact.
- Store the battery in a dry, well-ventilated place at 5-25°C, away from direct sunlight. Keep the battery at least 2 meters away from heat sources. Check and maintain the battery regularly.
Every model in this series. Filter by voltage or type, or search a model number.
Type
Showing 38 of 38 models
.webp)

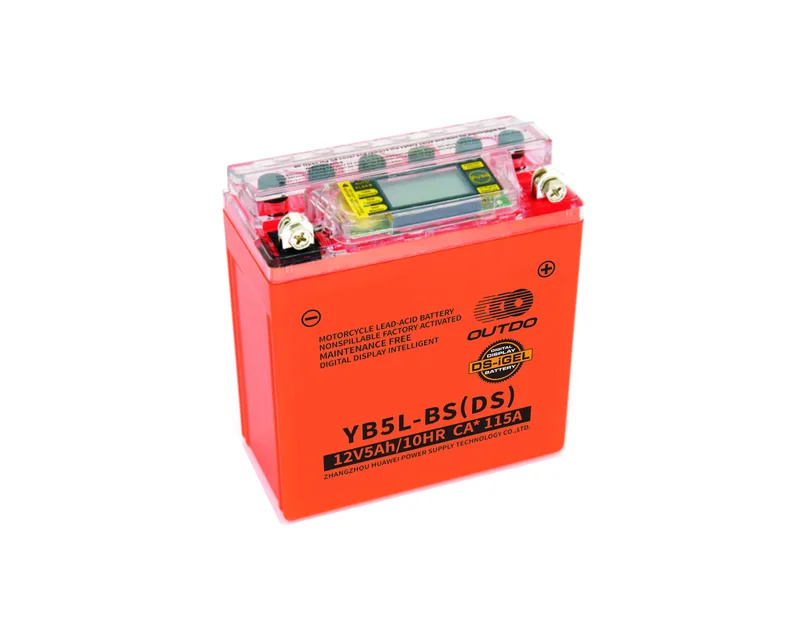

YB5L-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 55A
- Dimensions (L x W x H)
- 119 x 60 x 129 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.77 kg
- Terminal
- C6
- Charge Current
- 0.5A
- Meter CCA
- 115A
Variants
- Type
- YB Type
- Voltage
- 12V
- Capacity
- 5Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 119 x 60 x 129 mm
- Polarity
- - +
- Weight
- 1.86 kg
- Terminal
- C6
- Charge Current
- 0.5A
- Meter CCA
- 80A
- CCA (-18°C)
- 50A
- Type
- YB Type
- Voltage
- 12V
- Capacity
- 5Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 119 x 60 x 129 mm
- Polarity
- - +
- Weight
- 1.77 kg
- Terminal
- C6
- Charge Current
- 0.5A
- Meter CCA
- 115A
- CCA (-18°C)
- 55A
.webp)

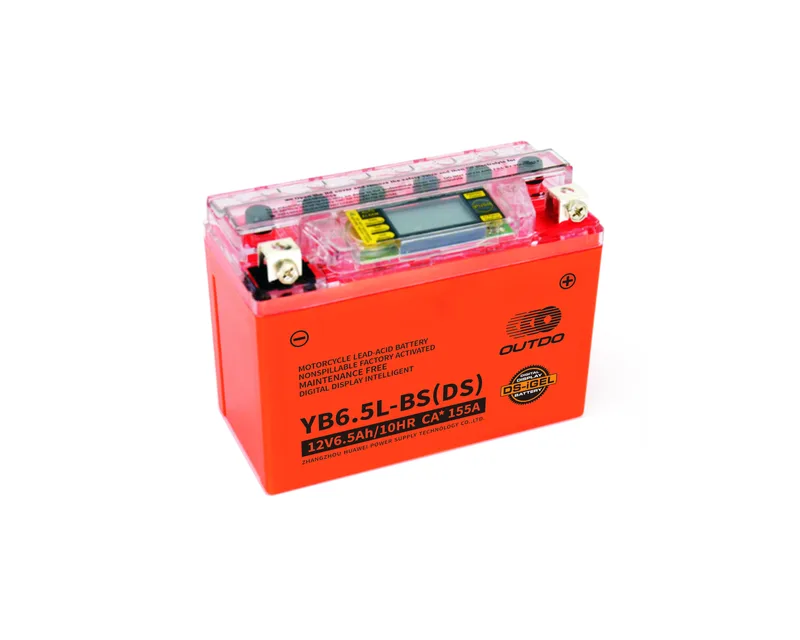

YB6.5L-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 75A
- Dimensions (L x W x H)
- 138 x 65 x 100 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.98 kg
- Terminal
- C8
- Charge Current
- 0.65A
- Meter CCA
- 155A
Variants
- Type
- YB Type
- Voltage
- 12V
- Capacity
- 6.5Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 138 x 65 x 100 mm
- Polarity
- - +
- Weight
- 2.16 kg
- Terminal
- C8
- Charge Current
- 0.65A
- Meter CCA
- 140A
- CCA (-18°C)
- 75A
YB7B-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 75A
- Dimensions (L x W x H)
- 148 x 60 x 128 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.21 kg
- Terminal
- C7
- Charge Current
- 0.7A
- Meter CCA
- 140A
.webp)

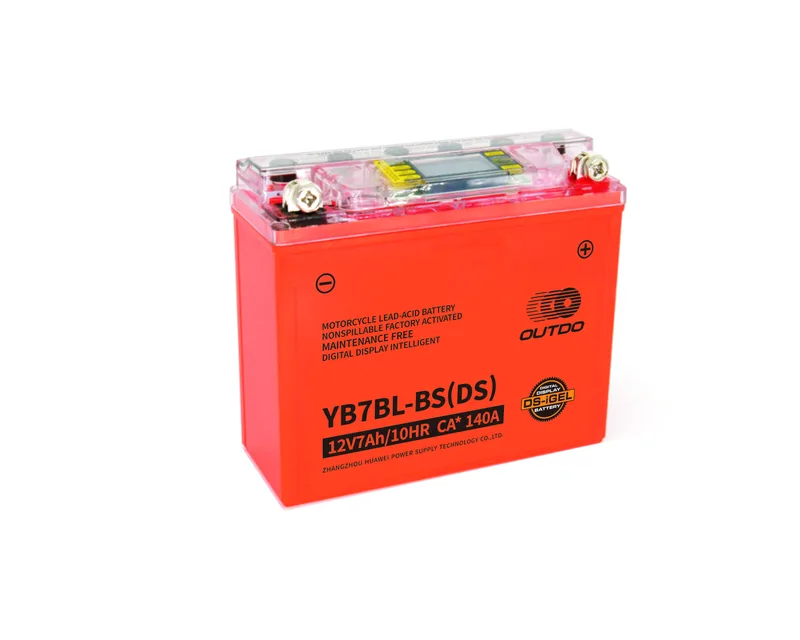

YB7BL-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 75A
- Dimensions (L x W x H)
- 148 x 60 x 128 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.21 kg
- Terminal
- C7
- Charge Current
- 0.7A
- Meter CCA
- 140A
YB7-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 137 x 76 x 128 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.65 kg
- Terminal
- C7
- Charge Current
- 0.8A
- Meter CCA
- 140A
YB7L-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 137 x 76 x 128 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.65 kg
- Terminal
- C7
- Charge Current
- 0.8A
- Meter CCA
- 140A
.webp)
YB9-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 137 x 76 x 134 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.7 kg
- Terminal
- C7
- Charge Current
- 0.9A
- Meter CCA
- 140A
Variants
- Type
- YB Type
- Voltage
- 12V
- Capacity
- 9Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 137 x 76 x 134 mm
- Polarity
- + -
- Weight
- 2.8 kg
- Terminal
- C7
- Charge Current
- 0.9A
- Meter CCA
- 160A
- CCA (-18°C)
- 100A
- Type
- YB Type
- Voltage
- 12V
- Capacity
- 9Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 137 x 76 x 134 mm
- Polarity
- + -
- Weight
- 2.95 kg
- Terminal
- C7
- Charge Current
- 0.9A
- Meter CCA
- 180A
- CCA (-18°C)
- 110A
.webp)

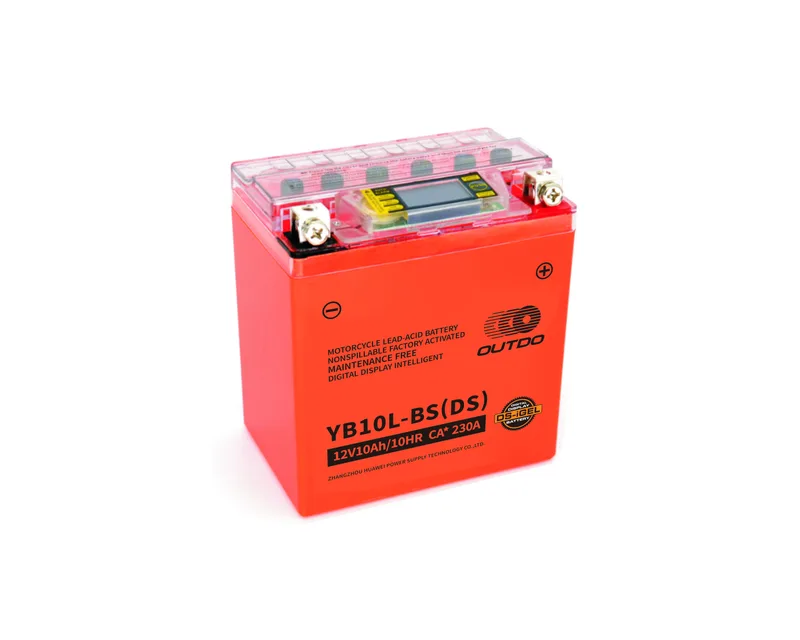

YB10L-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 132 x 88 x 145 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.45 kg
- Terminal
- Z1
- Charge Current
- 1A
- Meter CCA
- 230A
.webp)

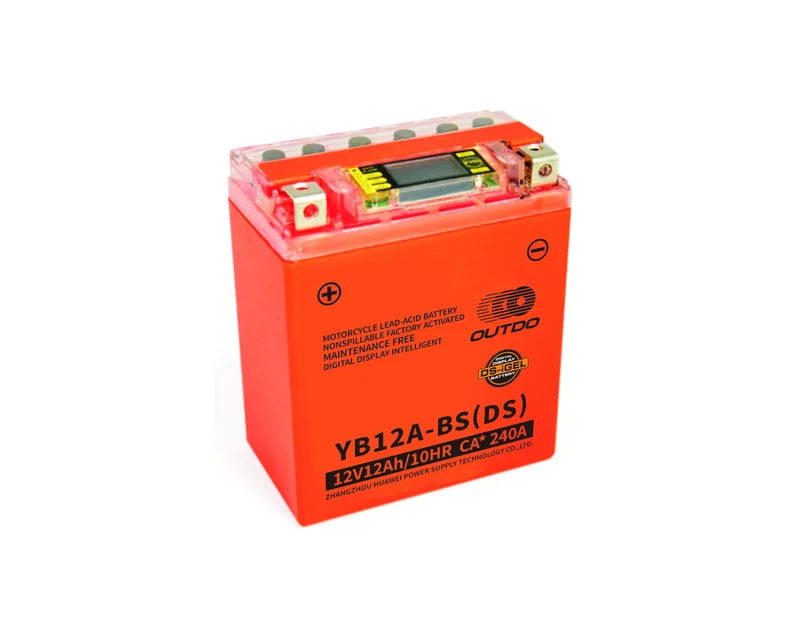

YB12A-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 140A
- Dimensions (L x W x H)
- 134 x 78 x 156 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.63 kg
- Terminal
- Z1
- Charge Current
- 1.2A
- Meter CCA
- 240A
YB12AL-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 140A
- Dimensions (L x W x H)
- 134 x 78 x 156 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.63 kg
- Terminal
- Z1
- Charge Current
- 1.2A
- Meter CCA
- 240A
YB14-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 132 x 88 x 163 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.54 kg
- Terminal
- Z1
- Charge Current
- 1.4A
- Meter CCA
- 285A
.webp)

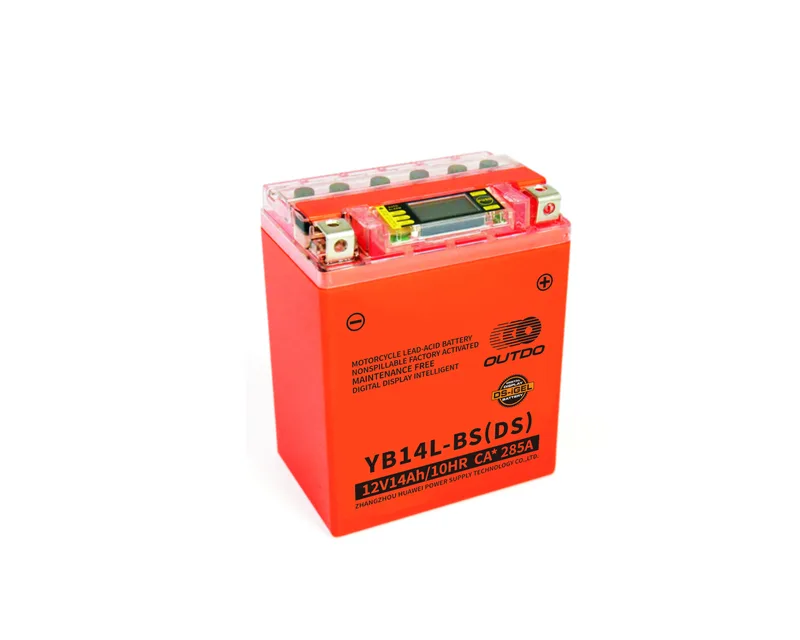

YB14L-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 132 x 88 x 163 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.54 kg
- Terminal
- Z1
- Charge Current
- 1.4A
- Meter CCA
- 285A
YB16L-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 240A
- Dimensions (L x W x H)
- 173 x 100 x 152 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.15 kg
- Terminal
- Z2
- Charge Current
- 1.9A
- Meter CCA
- 390A
YB16CL-BS(DS)
YB Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 240A
- Dimensions (L x W x H)
- 173 x 100 x 175 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.25 kg
- Terminal
- C9
- Charge Current
- 1.9A
- Meter CCA
- 320A
.webp)

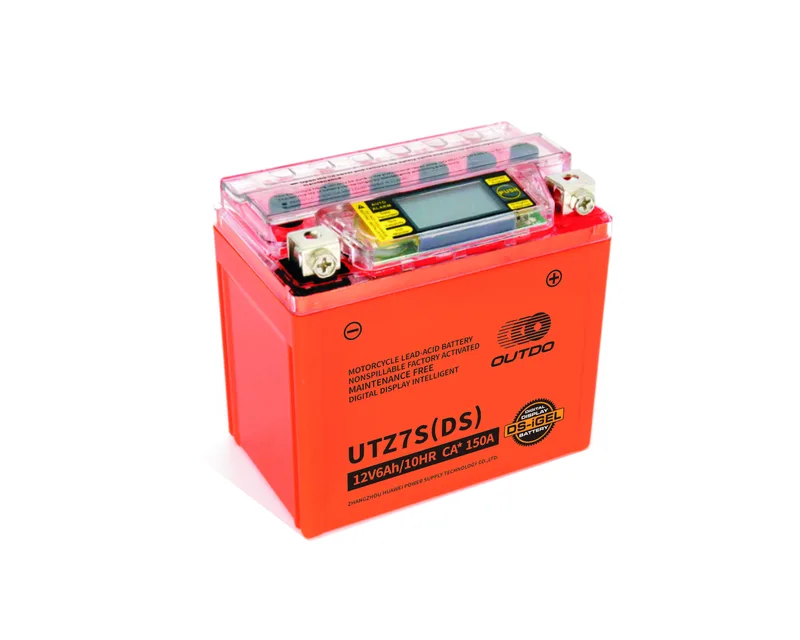

UTZ7S(DS)
UT Type- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 113 x 70 x 107 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.02 kg
- Terminal
- C8
- Charge Current
- 0.6A
- Meter CCA
- 150A
.webp)

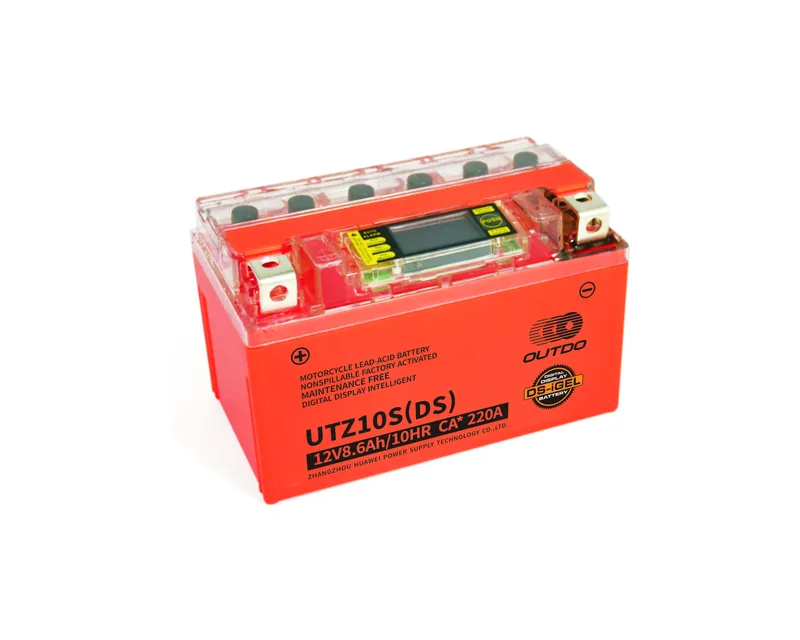

UTZ10S(DS)
UT Type- Voltage
- 12V
- Capacity
- 8.6Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 150 x 86 x 94 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.85 kg
- Terminal
- Z1
- Charge Current
- 0.86A
- Meter CCA
- 220A
.webp)

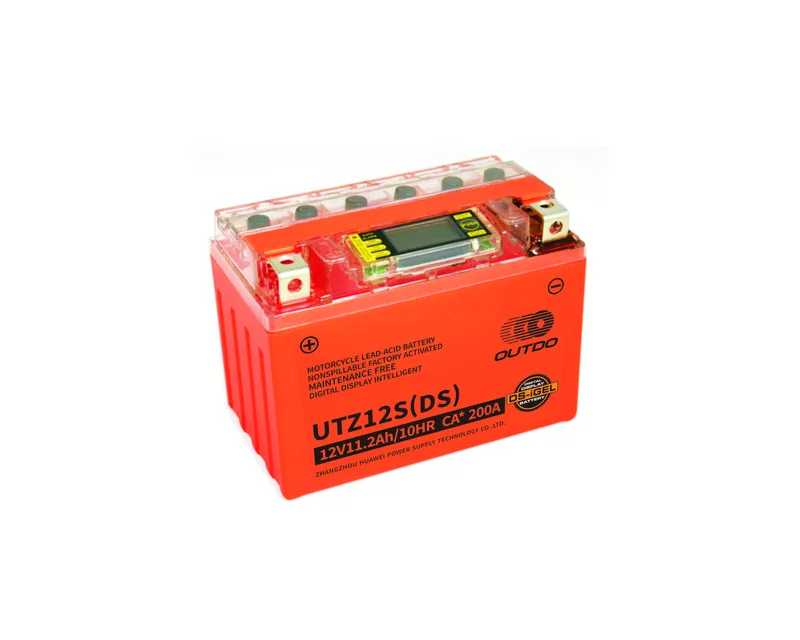

UTZ12S(DS)
UT Type- Voltage
- 12V
- Capacity
- 11.2Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 150 x 86 x 111 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.36 kg
- Terminal
- Z1
- Charge Current
- 1.12A
- Meter CCA
- 200A
.webp)

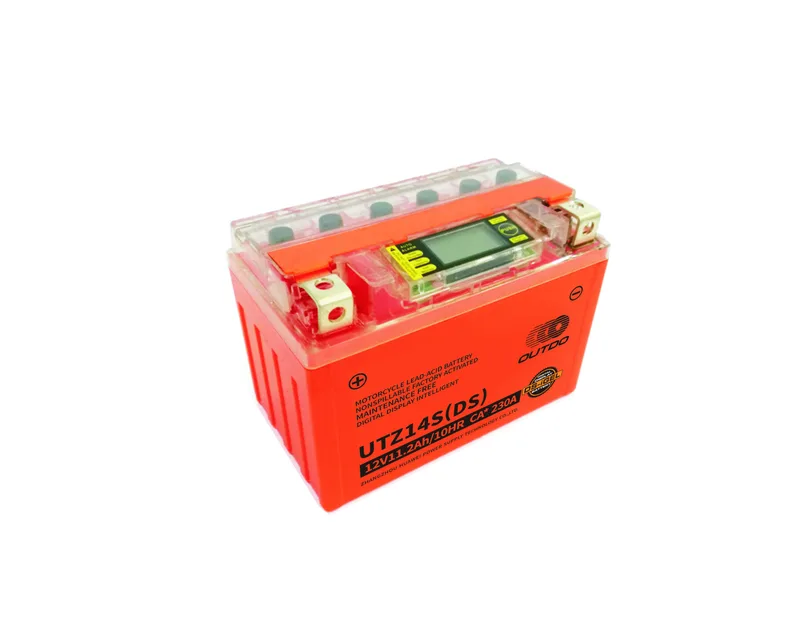

UTZ14S(DS)
UT Type- Voltage
- 12V
- Capacity
- 11.2Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 150 x 86 x 111 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.52 kg
- Terminal
- Z1
- Charge Current
- 1.12A
- Meter CCA
- 230A
.webp)

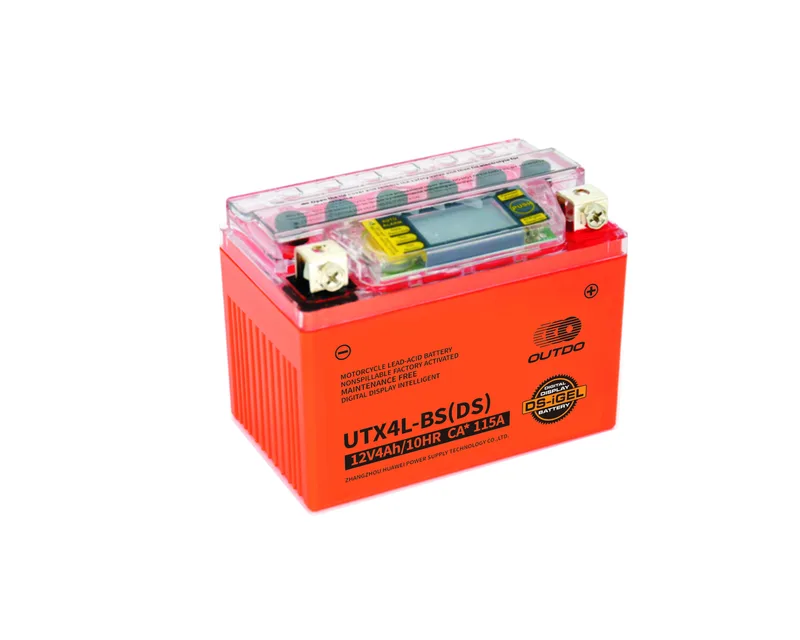

UTX4L-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 4Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 113 x 70 x 85 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.3 kg
- Terminal
- C8
- Charge Current
- 0.4A
- Meter CCA
- 115A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 4Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 113 x 70 x 85 mm
- Polarity
- - +
- Weight
- 1.4 kg
- Terminal
- C8
- Charge Current
- 0.4A
- Meter CCA
- 120A
- CCA (-18°C)
- 50A
.webp)

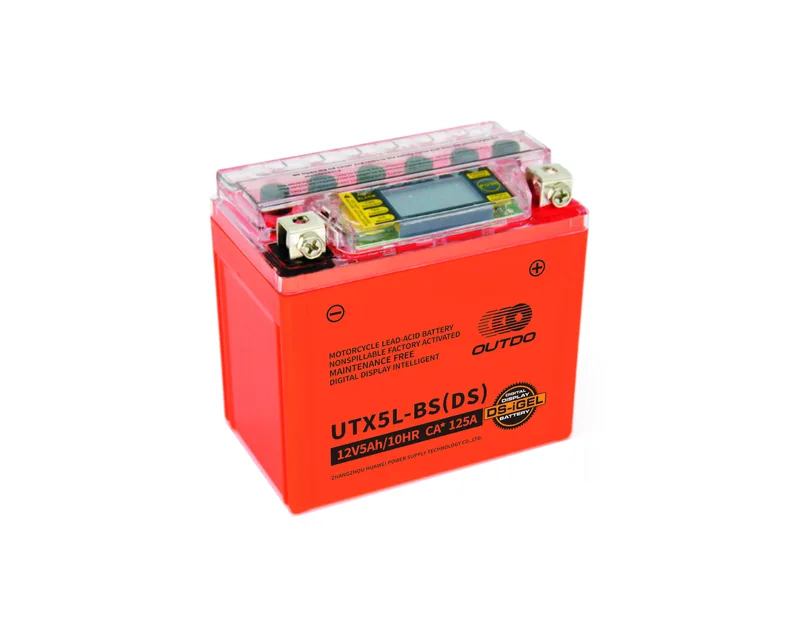

UTX5L-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 55A
- Dimensions (L x W x H)
- 113 x 70 x 107 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.64 kg
- Terminal
- C8
- Charge Current
- 0.5A
- Meter CCA
- 125A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 5Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 113 x 70 x 107 mm
- Polarity
- - +
- Weight
- 1.79 kg
- Terminal
- C8
- Charge Current
- 0.5A
- Meter CCA
- 130A
- CCA (-18°C)
- 70A
.webp)

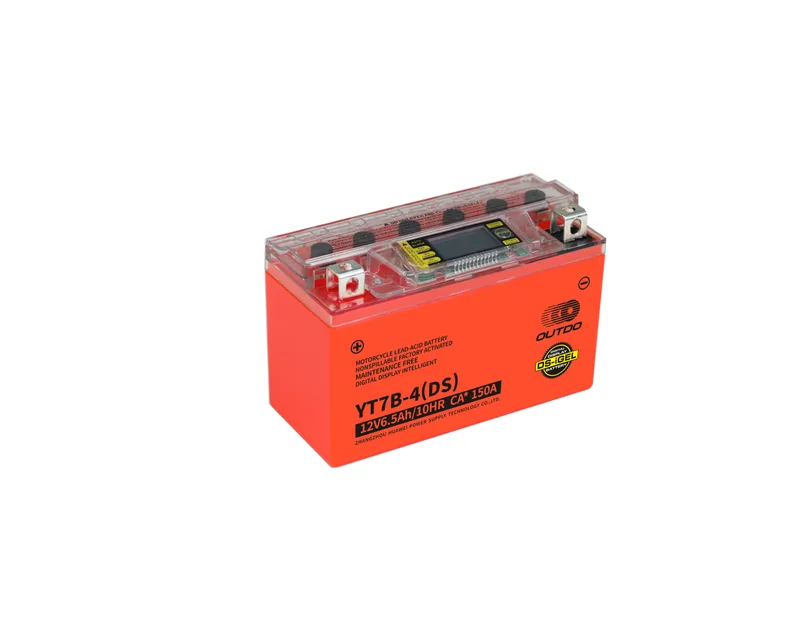

YT7B-4(DS)
UT Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 80A
- Dimensions (L x W x H)
- 150 x 65 x 94 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.15 kg
- Terminal
- C9
- Charge Current
- 0.65A
- Meter CCA
- 150A
.webp)

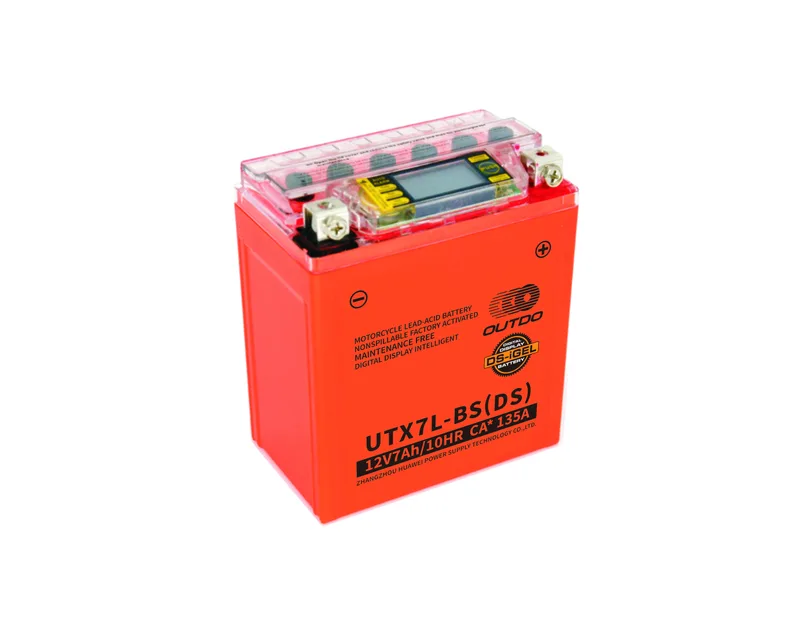

UTX7L-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 75A
- Dimensions (L x W x H)
- 113 x 70 x 130 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.15 kg
- Terminal
- C8
- Charge Current
- 0.7A
- Meter CCA
- 135A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 7Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 113 x 70 x 130 mm
- Polarity
- - +
- Weight
- 2.24 kg
- Terminal
- C8
- Charge Current
- 0.7A
- Meter CCA
- 140A
- CCA (-18°C)
- 85A
.webp)

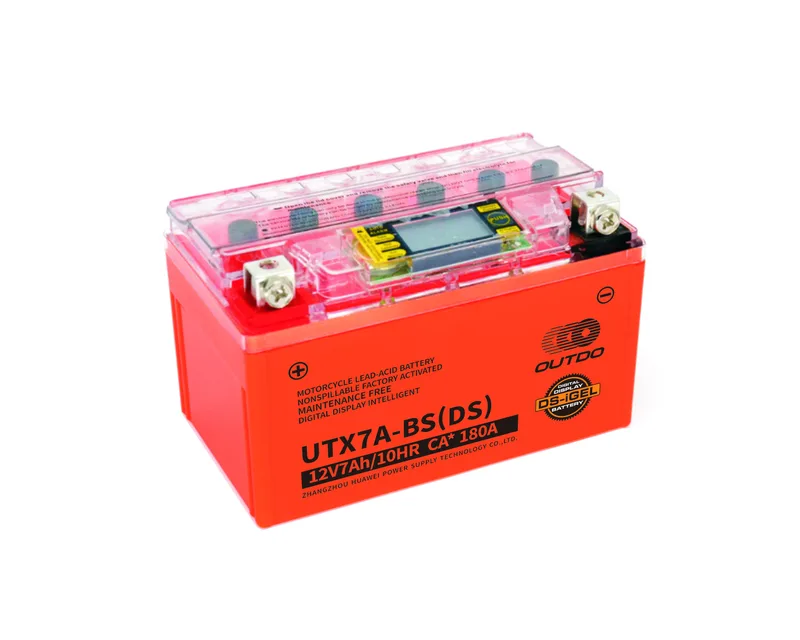

UTX7A-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 90A
- Dimensions (L x W x H)
- 150 x 86 x 94 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.4 kg
- Terminal
- C9
- Charge Current
- 0.7A
- Meter CCA
- 180A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 7Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 94 mm
- Polarity
- + -
- Weight
- 2.48 kg
- Terminal
- C9
- Charge Current
- 0.7A
- Meter CCA
- 185A
- CCA (-18°C)
- 100A
.webp)

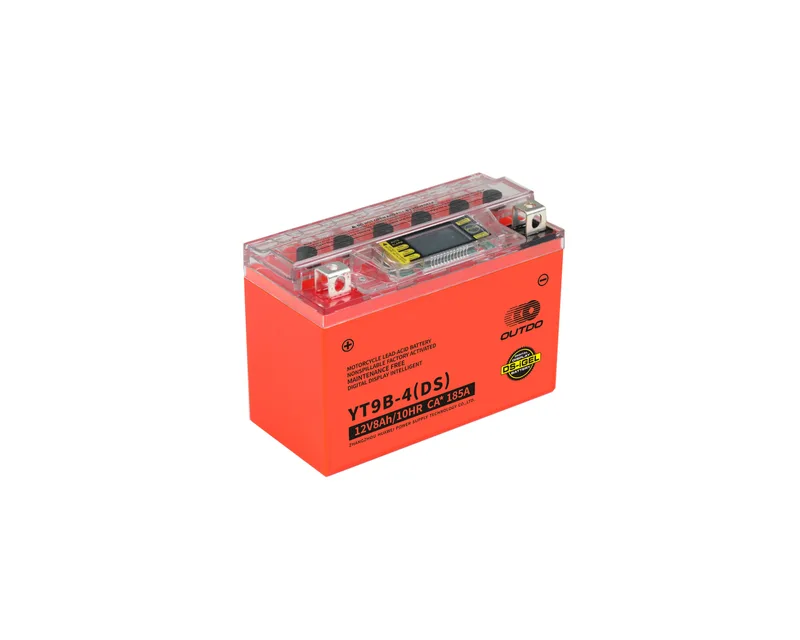

YT9B-4(DS)
UT Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 150 x 70 x 105 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.61 kg
- Terminal
- C9
- Charge Current
- 0.8A
- Meter CCA
- 185A
.webp)

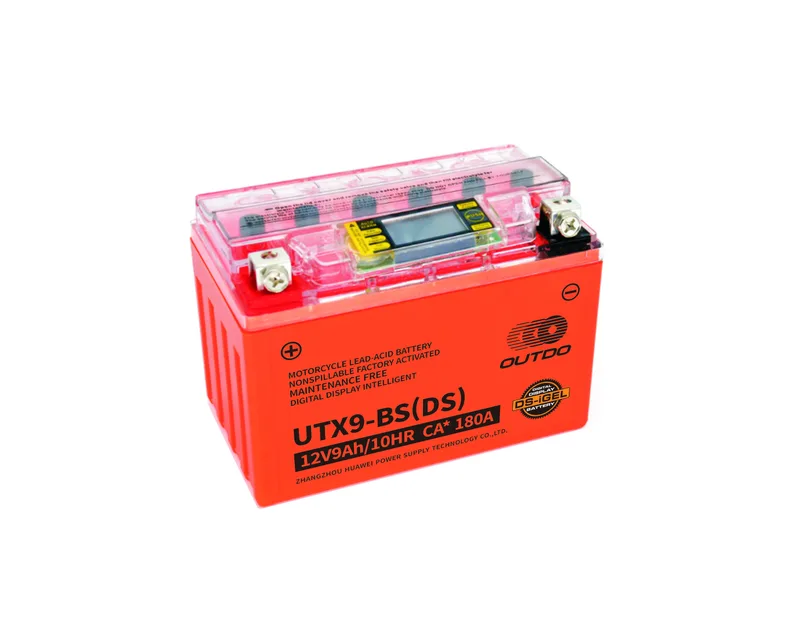

UTX9-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 150 x 86 x 107 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.93 kg
- Terminal
- C9
- Charge Current
- 0.9A
- Meter CCA
- 180A
.webp)
YT12A-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 9.5Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 150 x 86 x 107 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.13 kg
- Terminal
- Z1
- Charge Current
- 0.95A
- Meter CCA
- 200A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 10Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 107 mm
- Polarity
- + -
- Weight
- 3.32 kg
- Terminal
- Z1
- Charge Current
- 1A
- Meter CCA
- 245A
- CCA (-18°C)
- 135A
.webp)

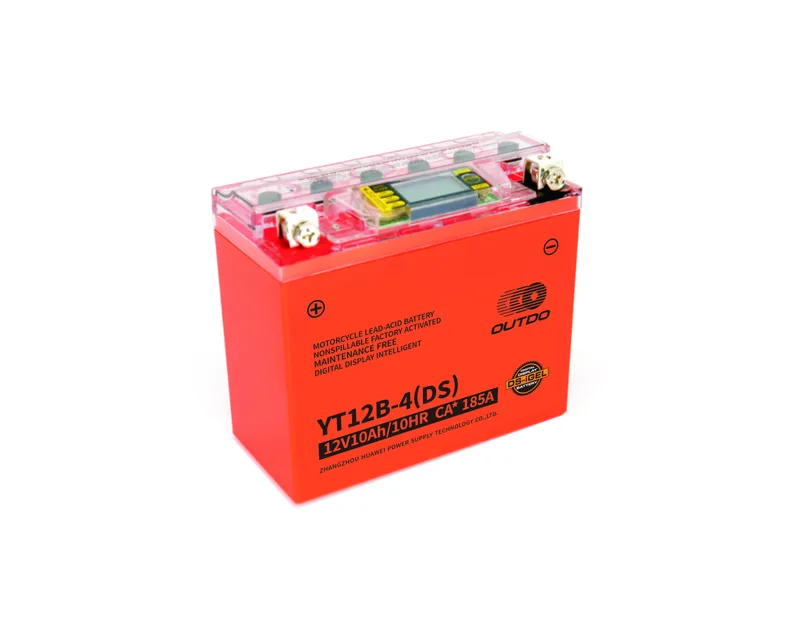

YT12B-4(DS)
UT Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 150 x 70 x 130 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.12 kg
- Terminal
- C9
- Charge Current
- 1A
- Meter CCA
- 185A
.webp)

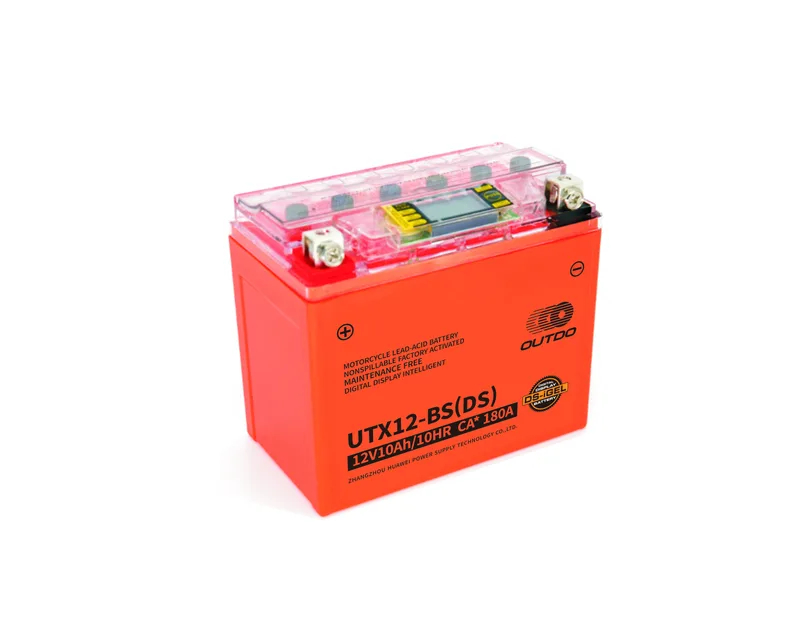

UTX12-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 150 x 86 x 130 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.29 kg
- Terminal
- C9
- Charge Current
- 1A
- Meter CCA
- 180A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 12Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 130 mm
- Polarity
- + -
- Weight
- 3.87 kg
- Terminal
- Z1
- Charge Current
- 1.2A
- Meter CCA
- 210A
- CCA (-18°C)
- 140A
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 12Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 130 mm
- Polarity
- + -
- Weight
- 4.12 kg
- Terminal
- Z1
- Charge Current
- 1.2A
- Meter CCA
- 240A
- CCA (-18°C)
- 165A
YT14B-4(DS)
UT Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 115A
- Dimensions (L x W x H)
- 150 x 70 x 145 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.8 kg
- Terminal
- C9
- Charge Current
- 1.2A
- Meter CCA
- 185A
.webp)

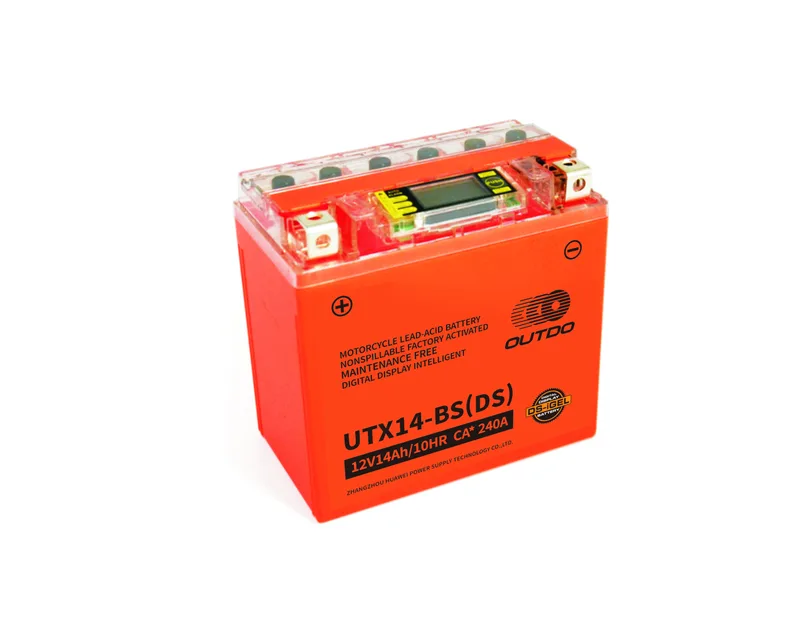

UTX14-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.4 kg
- Terminal
- Z1
- Charge Current
- 1.2A
- Meter CCA
- 220A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 14Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
- Polarity
- + -
- Weight
- 4.68 kg
- Terminal
- Z1
- Charge Current
- 1.4A
- Meter CCA
- 240A
- CCA (-18°C)
- 185A
UTX14L-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.4 kg
- Terminal
- Z1
- Charge Current
- 1.2A
- Meter CCA
- 220A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 14Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
- Polarity
- - +
- Weight
- 4.68 kg
- Terminal
- Z1
- Charge Current
- 1.4A
- Meter CCA
- 240A
- CCA (-18°C)
- 185A
UTX16-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 165A
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 5 kg
- Terminal
- Z1
- Charge Current
- 1.4A
- Meter CCA
- 235A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 16Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
- Polarity
- + -
- Weight
- 5.3 kg
- Terminal
- Z1
- Charge Current
- 1.6A
- Meter CCA
- 255A
- CCA (-18°C)
- 200A
UTX16L-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 165A
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5 kg
- Terminal
- Z1
- Charge Current
- 1.4A
- Meter CCA
- 235A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 16Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
- Polarity
- - +
- Weight
- 5.3 kg
- Terminal
- Z1
- Charge Current
- 1.6A
- Meter CCA
- 255A
- CCA (-18°C)
- 200A
YT20-4(DS)
UT Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 5.9 kg
- Terminal
- Z2
- Charge Current
- 1.8A
- Meter CCA
- 290A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 20Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
- Polarity
- + -
- Weight
- 6.2 kg
- Terminal
- Z2
- Charge Current
- 2A
- Meter CCA
- 330A
- CCA (-18°C)
- 240A
YT20L-4(DS)
UT Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5.9 kg
- Terminal
- Z2
- Charge Current
- 1.8A
- Meter CCA
- 290A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 20Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
- Polarity
- - +
- Weight
- 6.2 kg
- Terminal
- Z2
- Charge Current
- 2A
- Meter CCA
- 330A
- CCA (-18°C)
- 240A
UTX21L-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 21Ah
- CCA (-18°C)
- 220A
- Dimensions (L x W x H)
- 205 x 91 x 161 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.78 kg
- Terminal
- Z2
- Charge Current
- 2.1A
- Meter CCA
- 310A
UTX24L-BS(DS)
UT Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 320A
- Dimensions (L x W x H)
- 205 x 91 x 161 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 7.4 kg
- Terminal
- Z2
- Charge Current
- 2.4A
- Meter CCA
- 400A
| Model | Type | Voltage (V) | Capacity (Ah) | Hour Rate (HR) | Dimension±2 (mm) | Polarity | Weight±3% (KG) | Terminal | Regular Charge Current (A) | Meter CCA (25±5°C) | CCA (-18°C) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YB3L-BS(DS) | YB Type | 12 | 3 | 10 | 98*56*109 | - + | 1.19 | C6 | 0.3 | 80 | 35 | |
| YB5L-BS(DS) | YB Type | 12 | 5 | 10 | 119*60*129 | - + | 1.77 | C6 | 0.5 | 115 | 55 | |
| YB5L-BS(DS) | YB Type | 12 | 5 | 10 | 119*60*129 | - + | 1.86 | C6 | 0.5 | 80 | 50 | |
| YB6.5L-BS(DS) | YB Type | 12 | 6.5 | 10 | 138*65*100 | - + | 1.98 | C8 | 0.65 | 155 | 75 | |
| YB5L-BS(DS) | YB Type | 12 | 5 | 10 | 119*60*129 | - + | 1.77 | C6 | 0.5 | 115 | 55 | |
| YB6.5L-BS(DS) | YB Type | 12 | 6.5 | 10 | 138*65*100 | - + | 2.16 | C8 | 0.65 | 140 | 75 | |
| YB7B-BS(DS) | YB Type | 12 | 7 | 10 | 148*60*128 | + - | 2.21 | C7 | 0.7 | 140 | 75 | |
| YB7BL-BS(DS) | YB Type | 12 | 7 | 10 | 148*60*128 | - + | 2.21 | C7 | 0.7 | 140 | 75 | |
| YB7-BS(DS) | YB Type | 12 | 8 | 10 | 137*76*128 | + - | 2.65 | C7 | 0.8 | 140 | 85 | |
| YB7L-BS(DS) | YB Type | 12 | 8 | 10 | 137*76*128 | - + | 2.65 | C7 | 0.8 | 140 | 85 | |
| YB9-BS(DS) | YB Type | 12 | 9 | 10 | 137*76*134 | + - | 2.7 | C7 | 0.9 | 140 | 85 | |
| YB9-BS(DS) | YB Type | 12 | 9 | 10 | 137*76*134 | + - | 2.8 | C7 | 0.9 | 160 | 100 | |
| YB9-BS(DS) | YB Type | 12 | 9 | 10 | 137*76*134 | + - | 2.95 | C7 | 0.9 | 180 | 110 | |
| YB10L-BS(DS) | YB Type | 12 | 10 | 10 | 132*88*145 | - + | 3.45 | Z1 | 1 | 230 | 120 | |
| YB12A-BS(DS) | YB Type | 12 | 12 | 10 | 134*78*156 | + - | 3.63 | Z1 | 1.2 | 240 | 140 | |
| YB12AL-BS(DS) | YB Type | 12 | 12 | 10 | 134*78*156 | - + | 3.63 | Z1 | 1.2 | 240 | 140 | |
| YB14-BS(DS) | YB Type | 12 | 14 | 10 | 132*88*163 | + - | 4.54 | Z1 | 1.4 | 285 | 185 | |
| YB14L-BS(DS) | YB Type | 12 | 14 | 10 | 132*88*163 | - + | 4.54 | Z1 | 1.4 | 285 | 185 | |
| YB16L-BS(DS) | YB Type | 12 | 19 | 10 | 173*100*152 | - + | 6.15 | Z2 | 1.9 | 390 | 240 | |
| YB16CL-BS(DS) | YB Type | 12 | 19 | 10 | 173*100*175 | - + | 6.25 | C9 | 1.9 | 320 | 240 | |
| UTZ7S(DS) | UT Type | 12 | 6 | 10 | 113*70*107 | - + | 2.02 | C8 | 0.6 | 150 | 85 | |
| UTZ10S(DS) | UT Type | 12 | 8.6 | 10 | 150*86*94 | + - | 2.85 | Z1 | 0.86 | 220 | 120 | |
| UTZ12S(DS) | UT Type | 12 | 11.2 | 10 | 150*86*111 | + - | 3.36 | Z1 | 1.12 | 200 | 130 | |
| UTZ14S(DS) | UT Type | 12 | 11.2 | 10 | 150*86*111 | + - | 3.52 | Z1 | 1.12 | 230 | 150 | |
| UTX4L-BS(DS) | UT Type | 12 | 4 | 10 | 113*70*85 | - + | 1.3 | C8 | 0.4 | 115 | 45 | |
| UTX4L-BS(DS) | UT Type | 12 | 4 | 10 | 113*70*85 | - + | 1.4 | C8 | 0.4 | 120 | 50 | |
| UTX5L-BS(DS) | UT Type | 12 | 5 | 10 | 113*70*107 | - + | 1.64 | C8 | 0.5 | 125 | 55 | |
| UTX5L-BS(DS) | UT Type | 12 | 5 | 10 | 113*70*107 | - + | 1.79 | C8 | 0.5 | 130 | 70 | |
| YT7B-4(DS) | UT Type | 12 | 6.5 | 10 | 150*65*94 | + - | 2.15 | C9 | 0.65 | 150 | 80 | |
| UTX7L-BS(DS) | UT Type | 12 | 7 | 10 | 113*70*130 | - + | 2.15 | C8 | 0.7 | 135 | 75 | |
| UTX7L-BS(DS) | UT Type | 12 | 7 | 10 | 113*70*130 | - + | 2.24 | C8 | 0.7 | 140 | 85 | |
| UTX7A-BS(DS) | UT Type | 12 | 7 | 10 | 150*86*94 | + - | 2.4 | C9 | 0.7 | 180 | 90 | |
| UTX7A-BS(DS) | UT Type | 12 | 7 | 10 | 150*86*94 | + - | 2.48 | C9 | 0.7 | 185 | 100 | |
| YT9B-4(DS) | UT Type | 12 | 8 | 10 | 150*70*105 | + - | 2.61 | C9 | 0.8 | 185 | 100 | |
| UTX9-BS(DS) | UT Type | 12 | 9 | 10 | 150*86*107 | + - | 2.93 | C9 | 0.9 | 180 | 120 | |
| YT12A-BS(DS) | UT Type | 12 | 9.5 | 10 | 150*86*107 | + - | 3.13 | Z1 | 0.95 | 200 | 120 | |
| YT12A-BS(DS) | UT Type | 12 | 10 | 10 | 150*86*107 | + - | 3.32 | Z1 | 1 | 245 | 135 | |
| YT12B-4(DS) | UT Type | 12 | 10 | 10 | 150*70*130 | + - | 3.12 | C9 | 1 | 185 | 100 | |
| UTX12-BS(DS) | UT Type | 12 | 10 | 10 | 150*86*130 | + - | 3.29 | C9 | 1 | 180 | 100 | |
| UTX12-BS(DS) | UT Type | 12 | 12 | 10 | 150*86*130 | + - | 3.87 | Z1 | 1.2 | 210 | 140 | |
| UTX12-BS(DS) | UT Type | 12 | 12 | 10 | 150*86*130 | + - | 4.12 | Z1 | 1.2 | 240 | 165 | |
| YT14B-4(DS) | UT Type | 12 | 12 | 10 | 150*70*145 | + - | 3.8 | C9 | 1.2 | 185 | 115 | |
| UTX14-BS(DS) | UT Type | 12 | 12 | 10 | 150*86*145 | + - | 4.4 | Z1 | 1.2 | 220 | 150 | |
| UTX14L-BS(DS) | UT Type | 12 | 12 | 10 | 150*86*145 | - + | 4.4 | Z1 | 1.2 | 220 | 150 | |
| UTX14-BS(DS) | UT Type | 12 | 14 | 10 | 150*86*145 | + - | 4.68 | Z1 | 1.4 | 240 | 185 | |
| UTX14L-BS(DS) | UT Type | 12 | 14 | 10 | 150*86*145 | - + | 4.68 | Z1 | 1.4 | 240 | 185 | |
| UTX16-BS(DS) | UT Type | 12 | 14 | 10 | 150*86*161 | + - | 5 | Z1 | 1.4 | 235 | 165 | |
| UTX16L-BS(DS) | UT Type | 12 | 14 | 10 | 150*86*161 | - + | 5 | Z1 | 1.4 | 235 | 165 | |
| UTX16-BS(DS) | UT Type | 12 | 16 | 10 | 150*86*161 | + - | 5.3 | Z1 | 1.6 | 255 | 200 | |
| UTX16L-BS(DS) | UT Type | 12 | 16 | 10 | 150*86*161 | - + | 5.3 | Z1 | 1.6 | 255 | 200 | |
| YT20-4(DS) | UT Type | 12 | 18 | 10 | 177*88*155 | + - | 5.9 | Z2 | 1.8 | 290 | 200 | |
| YT20L-4(DS) | UT Type | 12 | 18 | 10 | 177*88*155 | - + | 5.9 | Z2 | 1.8 | 290 | 200 | |
| YT20-4(DS) | UT Type | 12 | 20 | 10 | 177*88*155 | + - | 6.2 | Z2 | 2 | 330 | 240 | |
| YT20L-4(DS) | UT Type | 12 | 20 | 10 | 177*88*155 | - + | 6.2 | Z2 | 2 | 330 | 240 | |
| UTX21L-BS(DS) | UT Type | 12 | 21 | 10 | 205*91*161 | - + | 6.78 | Z2 | 2.1 | 310 | 220 | |
| UTX24L-BS(DS) | UT Type | 12 | 24 | 10 | 205*91*161 | - + | 7.4 | Z2 | 2.4 | 400 | 320 |
