6N2-2A
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.37 kg
- Terminal
- (+)310mmCA103 (-)145mmCA103
- Charge Current
- 0.2A
Flooded Dry Charged
Motorcycle Battery
Flooded Rechargeable Lead Acid Battery is charged-and-dry, which means that it may be put into service immediately after filling with acid. However, to insure good battery performance and long life, 5-hours' freshening charge is recommended after acid filling.
Key Features of Our Flooded Dry-Charged Battery
100% Pre-Delivery Tested
Every battery passes a full pre-delivery inspection to ensure stable quality and reliable performance.
Pb-Ca Grid Alloy Plates
Lead-calcium grid alloy battery plates give low water loss, stable quality, and a low self-discharge rate.
Flooded Electrolyte Design
Sufficient flooded electrolyte gives high over-charge and over-discharge resistance.
Low Internal Resistance
Low internal resistance delivers strong high-rate discharge performance for reliable starts.
Wide Temperature Range
Excellent high- and low-temperature performance, with a working temperature range of -30°C to 55°C.
3-5 Year Service Life
Designed float service life of 3 to 5 years.
Flooded Dry Charged Safe Use Precautions
I. Warning
- The electrolyte inside the battery is corrosive and may damage metal, cotton products, and stone. Handle the battery properly.
- Do NOT place the battery on its side or upside down to prevent acid leakage.
- Hydrogen gas may be generated during battery operation and charging. If exposed to fire or sparks, it may cause an explosion. Please observe the following precautions:
- Use and maintain the battery in a well-ventilated area.
- Keep sparks and open flames away during battery maintenance.
- If the battery is charged outside the vehicle, do not install it immediately after charging. Let it rest for at least 10 minutes to allow hydrogen gas to dissipate.
- After riding, do not remove the battery immediately. Let it rest for at least 10 minutes.
- During charging, the ambient temperature should not exceed 45°C. If it does, cool the battery with water or reduce the charging current and voltage.
- Do NOT place metal tools or conductive materials near the terminals to avoid short-circuiting.
- Do NOT strike the terminals with a hammer during battery installation.
- Handle the battery carefully during transportation to avoid impact or damage.
II. Flooded Dry Charged Installation and Maintenance
- Connect the positive terminal first. Do NOT reverse the polarity, otherwise the motorcycle's electrical equipment may be damaged.
- Activation Notice:
- Some batteries may not be activated immediately due to differences in vehicle performance. Start the engine several times or gently apply the throttle to help activate the battery more easily.
- Manual activation is recommended to ensure the exact activation date is recorded.
- During acid filling, wear acid-resistant clothing, rubber boots, safety goggles, and rubber gloves. If acid splashes onto skin or clothing, rinse immediately with a large amount of water. Seek medical attention if necessary.
- Do NOT over-discharge the battery. Recharge the battery promptly after it has been discharged.
- Disconnect the negative terminal if the motorcycle will not be used for a long period.
- Do NOT check whether the battery has power by short-circuiting the terminals.
- Regularly check the terminal connections and ensure the terminals are clean to maintain good contact.
- Store the battery in a dry, well-ventilated place at 5-25°C, away from direct sunlight. Keep the battery at least 2 meters away from heat sources. Check and maintain the battery regularly.
Every model in this series. Filter by voltage or type, or search a model number.
Voltage
Type
Showing 196 of 196 models
6N2-2A-1
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.37 kg
- Terminal
- (+)175mmCA103 (-)300mmCA103
- Charge Current
- 0.2A
6N2-2A-2
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.37 kg
- Terminal
- (+)100mmCA103 (-)150mmCB103
- Charge Current
- 0.2A
6N2-2A-3
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.37 kg
- Terminal
- (+)100mmCB104 (-)150mmLA106
- Charge Current
- 0.2A
6N2-2A-4
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.37 kg
- Terminal
- (+)100mmCB104 (-)100mmCB104
- Charge Current
- 0.2A
6N2-2A-5
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.37 kg
- Terminal
- (+)150mmCB104 (-)150mmLA106
- Charge Current
- 0.2A
6N2-2A-6
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.37 kg
- Terminal
- (+)150mmCA104 (-)150mmCB104
- Charge Current
- 0.2A
6N2-2A-7
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.37 kg
- Terminal
- (+)110mmCB104 (-)110mmCB104
- Charge Current
- 0.2A
6N2-2A-8
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.37 kg
- Terminal
- (+)270mmCB103 (-)140mmCA103
- Charge Current
- 0.2A
6N2-2D
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.37 kg
- Terminal
- (+)370mmCA103 (-)320mmCA103
- Charge Current
- 0.2A
6N2A-2C
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 105 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.38 kg
- Terminal
- (+)240mm (-)90mm
- Charge Current
- 0.2A
6N2A-2C-1
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 105 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.38 kg
- Terminal
- (+)240mm (-)90mm
- Charge Current
- 0.2A
6N2A-2C-2
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 105 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.38 kg
- Terminal
- (+)100mm (-)150mm
- Charge Current
- 0.2A
6N2A-2C-3
Standard Type- Voltage
- 6V
- Capacity
- 2Ah
- Dimensions (L x W x H)
- 70 x 46 x 105 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.38 kg
- Terminal
- (+)230mm (-)95mm
- Charge Current
- 0.2A

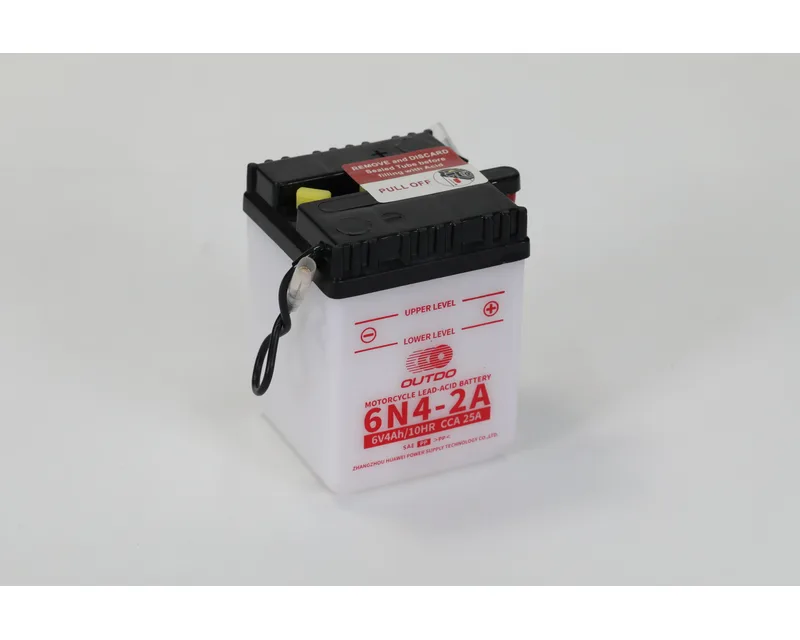

6N4-2A
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)90mmCB104 (-)90mmCB104
- Charge Current
- 0.4A
6N4-2A-1
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)175mmCW104 (-)105mmCB104
- Charge Current
- 0.4A
6N4-2A-2
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)100mmCB104 (-)150mmLA106
- Charge Current
- 0.4A
6N4-2A-3
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)150mmCA104 (-)150mmCB104
- Charge Current
- 0.4A

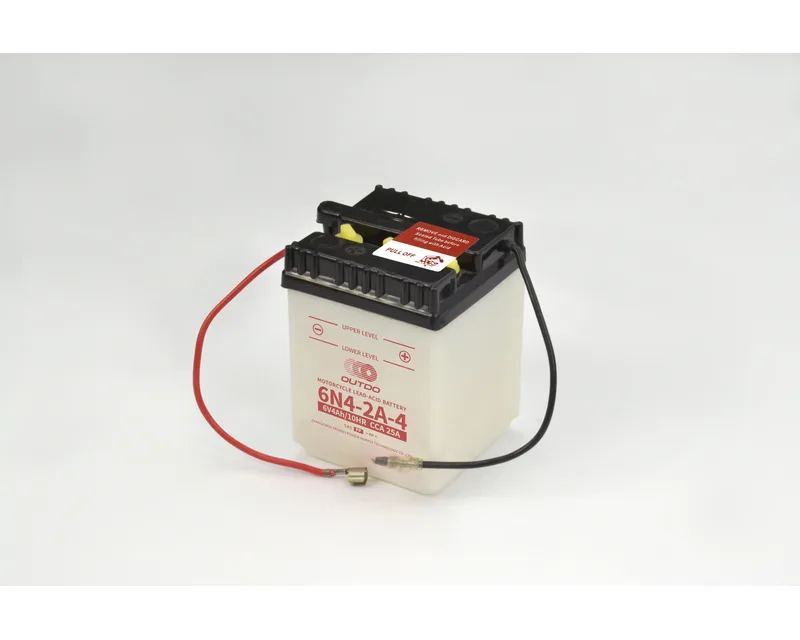

6N4-2A-4
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)310mmCA103 (-)145mmCA103
- Charge Current
- 0.4A
6N4-2A-5
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)140mmCB104 (-)140mmLA106
- Charge Current
- 0.4A
6N4-2A-6
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)320mm (-)180mm
- Charge Current
- 0.4A
6N4-2A-7
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)270mmCB103 (-)140mmCA103
- Charge Current
- 0.4A
6N4-2A-8
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.49 kg
- Terminal
- (+)400mm (-)180mm
- Charge Current
- 0.4A
6N4A-4D
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 60 x 56 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.62 kg
- Terminal
- (+)800mmCB104 (-)140mmLA106
- Charge Current
- 0.4A
6N4A-4D-1
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 60 x 56 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.62 kg
- Terminal
- (+)95mmCB104 (-)95mmCB104
- Charge Current
- 0.4A
6N4B-2A
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 101 x 47 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.51 kg
- Terminal
- (+)95mmCB104 (-)95mmCB104
- Charge Current
- 0.4A
6N4B-2A-1
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 101 x 47 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.51 kg
- Terminal
- (+)300mmCA103 (-)80mmCA103
- Charge Current
- 0.4A
6N4B-2A-2
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 101 x 47 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.51 kg
- Terminal
- (+)80mmCB104 (-)250mmCA104 CB104LA106
- Charge Current
- 0.4A
6N4B-2A-3
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 101 x 47 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.51 kg
- Terminal
- (+)100mmCB104 (-)100mmCA104
- Charge Current
- 0.4A
6N4B-2A-4
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 101 x 47 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.51 kg
- Terminal
- (+)265mmCB103 (-)165mmCA103
- Charge Current
- 0.4A
6N4B-2A-5
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 101 x 47 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.51 kg
- Terminal
- (+)400mm (-)55mm
- Charge Current
- 0.4A
6N4C-1B
Standard Type- Voltage
- 6V
- Capacity
- 4Ah
- Dimensions (L x W x H)
- 70 x 70 x 104 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.55 kg
- Terminal
- (+)290mm (-)95mm
- Charge Current
- 0.4A
6N5.5-1D
Standard Type- Voltage
- 6V
- Capacity
- 5.5Ah
- Dimensions (L x W x H)
- 89 x 69 x 99 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.7 kg
- Terminal
- (+)325mmCB103 (-)105mmLA106
- Charge Current
- 0.55A
6N5.5-1D-1
Standard Type- Voltage
- 6V
- Capacity
- 5.5Ah
- Dimensions (L x W x H)
- 89 x 69 x 99 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.7 kg
- Terminal
- (+)370mmCW1-2 (-)328mmCA103
- Charge Current
- 0.55A
6N5.5-3D
Standard Type- Voltage
- 6V
- Capacity
- 5.5Ah
- Dimensions (L x W x H)
- 89 x 69 x 99 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.7 kg
- Terminal
- (+)290mmCB103 (-)105mmLA106
- Charge Current
- 0.55A
6N6-1B
Standard Type- Voltage
- 6V
- Capacity
- 6Ah
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.65 kg
- Terminal
- (+)190mmCB103 (-)135mmCA103
- Charge Current
- 0.6A
6N6-1B-1
Standard Type- Voltage
- 6V
- Capacity
- 6Ah
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.65 kg
- Terminal
- (+)190mmCB103 (-)130mm
- Charge Current
- 0.6A
6N6-3B
Standard Type- Voltage
- 6V
- Capacity
- 6Ah
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.65 kg
- Terminal
- G1
- Charge Current
- 0.6A
6N6-3B-1
Standard Type- Voltage
- 6V
- Capacity
- 6Ah
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.65 kg
- Terminal
- G1
- Charge Current
- 0.6A
6N6-1D
Standard Type- Voltage
- 6V
- Capacity
- 6Ah
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.65 kg
- Terminal
- (+)405mmCA104 CB103CW1-1 (-)145mmLA106
- Charge Current
- 0.6A
6N6-1D-2
Standard Type- Voltage
- 6V
- Capacity
- 6Ah
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.65 kg
- Terminal
- (+)150mmCW104 (-)50mmCA104
- Charge Current
- 0.6A
6N6-1C
Standard Type- Voltage
- 6V
- Capacity
- 6Ah
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.65 kg
- Terminal
- (+)150mmCW104 (-)100mmCA104
- Charge Current
- 0.6A
B39-6
Standard Type- Voltage
- 6V
- Capacity
- 7Ah
- Dimensions (L x W x H)
- 126 x 48 x 126 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.95 kg
- Terminal
- G1
- Charge Current
- 0.7A
B49-6
Standard Type- Voltage
- 6V
- Capacity
- 10Ah
- Dimensions (L x W x H)
- 91 x 83 x 161 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.21 kg
- Terminal
- G1
- Charge Current
- 1A
6N11-2D
Standard Type- Voltage
- 6V
- Capacity
- 11Ah
- Dimensions (L x W x H)
- 149 x 69 x 99 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.24 kg
- Terminal
- G1
- Charge Current
- 1.1A
6N11A-1B
Standard Type- Voltage
- 6V
- Capacity
- 11Ah
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.34 kg
- Terminal
- G1
- Charge Current
- 1.1A
6N11A-3
Standard Type- Voltage
- 6V
- Capacity
- 11Ah
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.34 kg
- Terminal
- G1
- Charge Current
- 1.1A
6N11A-4
Standard Type- Voltage
- 6V
- Capacity
- 11Ah
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.34 kg
- Terminal
- G1
- Charge Current
- 1.1A
6N11A-3A
Standard Type- Voltage
- 6V
- Capacity
- 11Ah
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.34 kg
- Terminal
- G1
- Charge Current
- 1.1A
6N11A-3B
Standard Type- Voltage
- 6V
- Capacity
- 11Ah
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.34 kg
- Terminal
- G1
- Charge Current
- 1.1A
6N11A-4A
Standard Type- Voltage
- 6V
- Capacity
- 11Ah
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.34 kg
- Terminal
- G1
- Charge Current
- 1.1A
6N12A-2C
Standard Type- Voltage
- 6V
- Capacity
- 12Ah
- Dimensions (L x W x H)
- 155 x 56 x 115 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.14 kg
- Terminal
- G1
- Charge Current
- 1.2A
6N12A-2D
Standard Type- Voltage
- 6V
- Capacity
- 12Ah
- Dimensions (L x W x H)
- 155 x 56 x 115 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.14 kg
- Terminal
- G1
- Charge Current
- 1.2A
6N12-1B
Standard Type- Voltage
- 6V
- Capacity
- 12Ah
- Dimensions (L x W x H)
- 104 x 75 x 140 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.53 kg
- Terminal
- G1
- Charge Current
- 1.2A
B38-6A
Standard Type- Voltage
- 6V
- Capacity
- 13Ah
- Dimensions (L x W x H)
- 119 x 83 x 161 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.62 kg
- Terminal
- G1
- Charge Current
- 1.3A
6YB8-3B
Standard Type- Voltage
- 6V
- Capacity
- 8Ah
- Dimensions (L x W x H)
- 120 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.06 kg
- Terminal
- G1
- Charge Current
- 0.8A
6YB11-2D
Standard Type- Voltage
- 6V
- Capacity
- 11Ah
- Dimensions (L x W x H)
- 150 x 70 x 100 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.32 kg
- Terminal
- G1
- Charge Current
- 1.1A
6N18-3B
Standard Type- Voltage
- 6V
- Capacity
- 18Ah
- Dimensions (L x W x H)
- 118 x 80 x 147 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.7 kg
- Terminal
- G1
- Charge Current
- 1.8A
12N4-3B
Standard Type- Voltage
- 12V
- Capacity
- 4Ah
- CCA (-18°C)
- 40A
- Dimensions (L x W x H)
- 120 x 70 x 92 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.05 kg
- Terminal
- G3
- Charge Current
- 0.4A
12N5-3B
Standard Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.4 kg
- Terminal
- G1
- Charge Current
- 0.5A
12N5-3B-2
Standard Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.4 kg
- Terminal
- G2
- Charge Current
- 0.5A
12N5-4A
Standard Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.4 kg
- Terminal
- G1
- Charge Current
- 0.5A
12N5-4B
Standard Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.4 kg
- Terminal
- G1
- Charge Current
- 0.5A
12N5.5-3B
Standard Type- Voltage
- 12V
- Capacity
- 5.5Ah
- CCA (-18°C)
- 50A
- Dimensions (L x W x H)
- 135 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.46 kg
- Terminal
- G1
- Charge Current
- 0.55A
12N5.5-4A
Standard Type- Voltage
- 12V
- Capacity
- 5.5Ah
- CCA (-18°C)
- 50A
- Dimensions (L x W x H)
- 135 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.46 kg
- Terminal
- G1
- Charge Current
- 0.55A
12N5.5-4B
Standard Type- Voltage
- 12V
- Capacity
- 5.5Ah
- CCA (-18°C)
- 50A
- Dimensions (L x W x H)
- 135 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.46 kg
- Terminal
- G1
- Charge Current
- 0.55A
12N5.5A-3B
Standard Type- Voltage
- 12V
- Capacity
- 5.5Ah
- CCA (-18°C)
- 50A
- Dimensions (L x W x H)
- 103 x 90 x 114 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.46 kg
- Terminal
- G7
- Charge Current
- 0.55A
12N6-3B
Standard Type- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 50A
- Dimensions (L x W x H)
- 135 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.33 kg
- Terminal
- G1
- Charge Current
- 0.6A
Variants
- Type
- Standard Type
- Voltage
- 12V
- Capacity
- 6Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 135 x 70 x 95 mm
- Polarity
- - +
- Weight
- 1.43 kg
- Terminal
- G1
- Charge Current
- 0.6A
- CCA (-18°C)
- 50A
12N6-4A
Standard Type- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 50A
- Dimensions (L x W x H)
- 135 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.43 kg
- Terminal
- G1
- Charge Current
- 0.6A
12N6-4B
Standard Type- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 50A
- Dimensions (L x W x H)
- 135 x 70 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.43 kg
- Terminal
- G1
- Charge Current
- 0.6A
12N6.5-3B
Standard Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 55A
- Dimensions (L x W x H)
- 138 x 66 x 100 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.55 kg
- Terminal
- G1
- Charge Current
- 0.65A
12N6.5A-4B
Standard Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 55A
- Dimensions (L x W x H)
- 138 x 72 x 118 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.55 kg
- Terminal
- G1
- Charge Current
- 0.65A
12N6.5B-4B
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 80A
- Dimensions (L x W x H)
- 150 x 87 x 95 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.81 kg
- Terminal
- G3
- Charge Current
- 0.7A
12N7-3A
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.7 kg
- Terminal
- G1
- Charge Current
- 0.7A
12N7-3B
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.7 kg
- Terminal
- G1
- Charge Current
- 0.7A
12N7-3B2
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.7 kg
- Terminal
- G3
- Charge Current
- 0.7A
12N7-4A
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.78 kg
- Terminal
- G1
- Charge Current
- 0.7A
12N7-4A2
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.7 kg
- Terminal
- G3
- Charge Current
- 0.7A

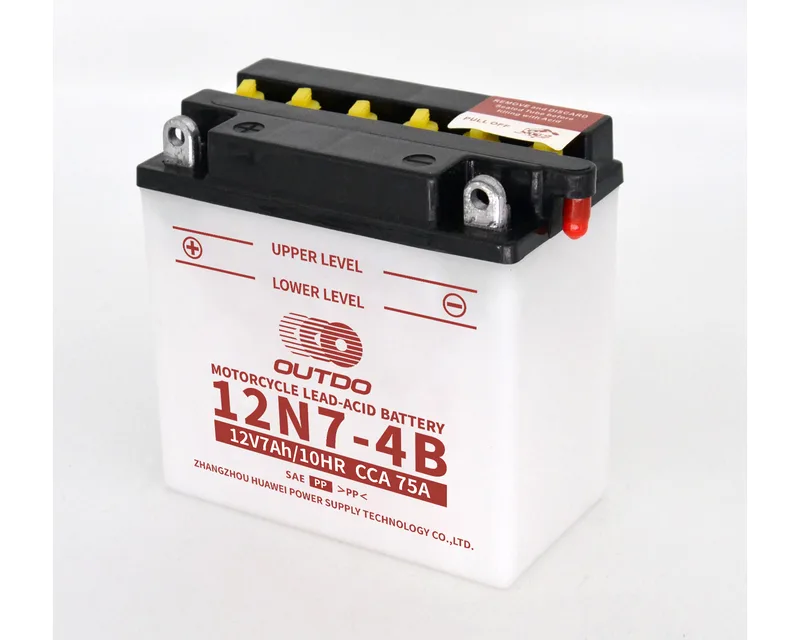

12N7-4B
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.7 kg
- Terminal
- G1
- Charge Current
- 0.7A
12N7A(B)-3A
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 150 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.74 kg
- Terminal
- G1
- Charge Current
- 0.7A
12N7A(B)-3B
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 150 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.74 kg
- Terminal
- G1
- Charge Current
- 0.7A
12N7A(B)-4A
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 150 x 60 x 130 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.74 kg
- Terminal
- G1
- Charge Current
- 0.7A
12N7D-3B
Standard Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 135 x 75 x 149 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.81 kg
- Terminal
- G1
- Charge Current
- 0.7A
12N9-3A
Standard Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.05 kg
- Terminal
- G1
- Charge Current
- 0.9A
12N9-3B
Standard Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.05 kg
- Terminal
- G1
- Charge Current
- 0.9A
12N9-4A
Standard Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.05 kg
- Terminal
- G1
- Charge Current
- 0.9A

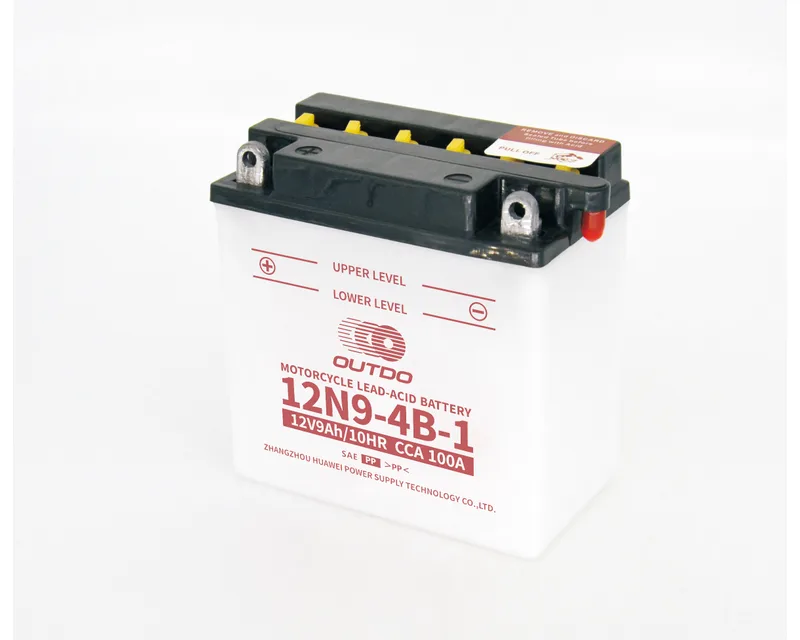

12N9-4B-1
Standard Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.05 kg
- Terminal
- G1
- Charge Current
- 0.9A
12N10-3A
Standard Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 110A
- Dimensions (L x W x H)
- 135 x 90 x 145 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.12 kg
- Terminal
- G1
- Charge Current
- 1A
12N10-3A-2
Standard Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 110A
- Dimensions (L x W x H)
- 135 x 90 x 145 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.12 kg
- Terminal
- G3
- Charge Current
- 1A
12N10-3B
Standard Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 110A
- Dimensions (L x W x H)
- 135 x 90 x 145 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.12 kg
- Terminal
- G1
- Charge Current
- 1A
12N11-3A
Standard Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 135 x 90 x 155 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.7 kg
- Terminal
- G1
- Charge Current
- 1.1A
12N11-3B
Standard Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 135 x 90 x 155 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.7 kg
- Terminal
- G1
- Charge Current
- 1.1A
12N12-3A
Standard Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 200 x 75 x 133 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.75 kg
- Terminal
- G1
- Charge Current
- 1.2A
12N12-3B
Standard Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 200 x 75 x 133 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.75 kg
- Terminal
- G1
- Charge Current
- 1.2A

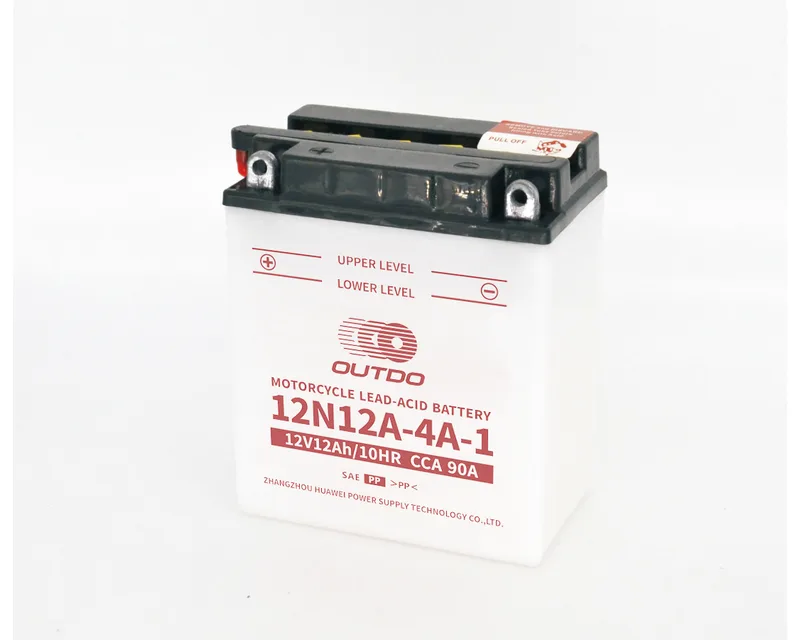

12N12A-4A-1
Standard Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 134 x 80 x 160 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.45 kg
- Terminal
- G1
- Charge Current
- 1.2A
12N12A-3A
Standard Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 134 x 80 x 160 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.45 kg
- Terminal
- G1
- Charge Current
- 1.2A
12N14-3A
Standard Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.05 kg
- Terminal
- G3
- Charge Current
- 1.4A
12N14-3B
Standard Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.05 kg
- Terminal
- G3
- Charge Current
- 1.4A
12N14-4A
Standard Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.05 kg
- Terminal
- G3
- Charge Current
- 1.4A
12N14-4B
Standard Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.05 kg
- Terminal
- G3
- Charge Current
- 1.4A
12N16-3A
Standard Type- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 145A
- Dimensions (L x W x H)
- 175 x 100 x 155 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.88 kg
- Terminal
- G1
- Charge Current
- 1.6A
12N16-3B
Standard Type- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 145A
- Dimensions (L x W x H)
- 175 x 100 x 155 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.88 kg
- Terminal
- G1
- Charge Current
- 1.6A
12N16-4A
Standard Type- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 145A
- Dimensions (L x W x H)
- 175 x 100 x 155 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.88 kg
- Terminal
- G1
- Charge Current
- 1.6A
12N16-4B
Standard Type- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 145A
- Dimensions (L x W x H)
- 175 x 100 x 155 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.88 kg
- Terminal
- G1
- Charge Current
- 1.6A
12C16A-3A
Standard Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 170A
- Dimensions (L x W x H)
- 186 x 82 x 171 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.25 kg
- Terminal
- G7
- Charge Current
- 1.9A
12C16A-3B
Standard Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 170A
- Dimensions (L x W x H)
- 186 x 82 x 171 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.25 kg
- Terminal
- G7
- Charge Current
- 1.9A
12N18-3
Standard Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.66 kg
- Terminal
- G2
- Charge Current
- 1.8A
12N18-3A
Standard Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.66 kg
- Terminal
- G2
- Charge Current
- 1.8A
12N18-3B
Standard Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.66 kg
- Terminal
- G2
- Charge Current
- 1.8A
12N18-4
Standard Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.66 kg
- Terminal
- G2
- Charge Current
- 1.8A
12N18-4A
Standard Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.66 kg
- Terminal
- G2
- Charge Current
- 1.8A
12N18-4B
Standard Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.66 kg
- Terminal
- G2
- Charge Current
- 1.8A
12N24-3
Standard Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 184 x 124 x 174 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.9 kg
- Terminal
- G6
- Charge Current
- 2.4A
12N24-3A
Standard Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 184 x 124 x 174 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.9 kg
- Terminal
- G6
- Charge Current
- 2.4A
12N24-4
Standard Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 184 x 124 x 174 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.9 kg
- Terminal
- G6
- Charge Current
- 2.4A
12N24-4A
Standard Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 184 x 124 x 174 mm
More specifications
- Type
- Standard Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.9 kg
- Terminal
- G6
- Charge Current
- 2.4A
YB2.5L-C
Heavy Duty Type- Voltage
- 12V
- Capacity
- 2.5Ah
- CCA (-18°C)
- 20A
- Dimensions (L x W x H)
- 80 x 70 x 105 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.72 kg
- Terminal
- (+)100mmCB103 (-)100mmCA103
- Charge Current
- 0.25A
YB2.5L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 2.5Ah
- CCA (-18°C)
- 20A
- Dimensions (L x W x H)
- 80 x 70 x 105 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.72 kg
- Terminal
- (+)100mmCB103 (-)100mmCA103
- Charge Current
- 0.25A

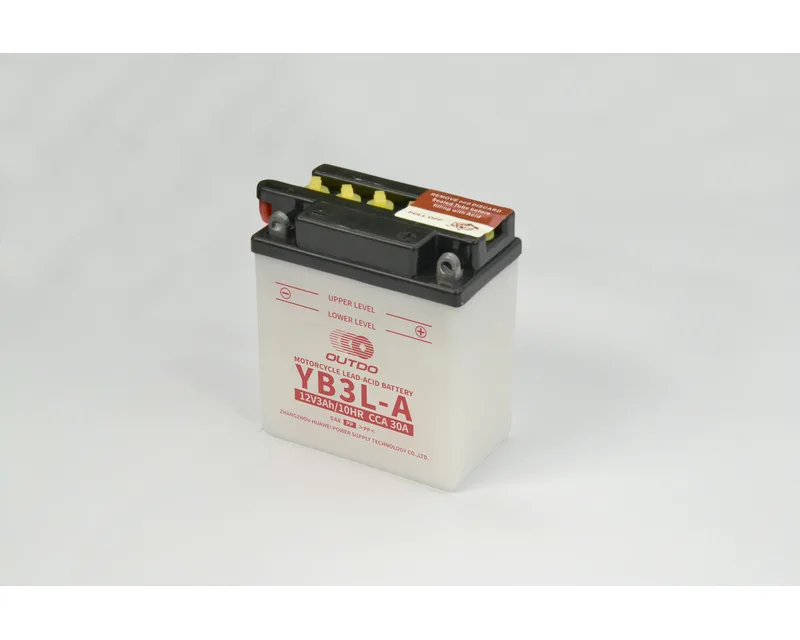

YB3L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 3Ah
- CCA (-18°C)
- 30A
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.88 kg
- Terminal
- G1
- Charge Current
- 0.3A

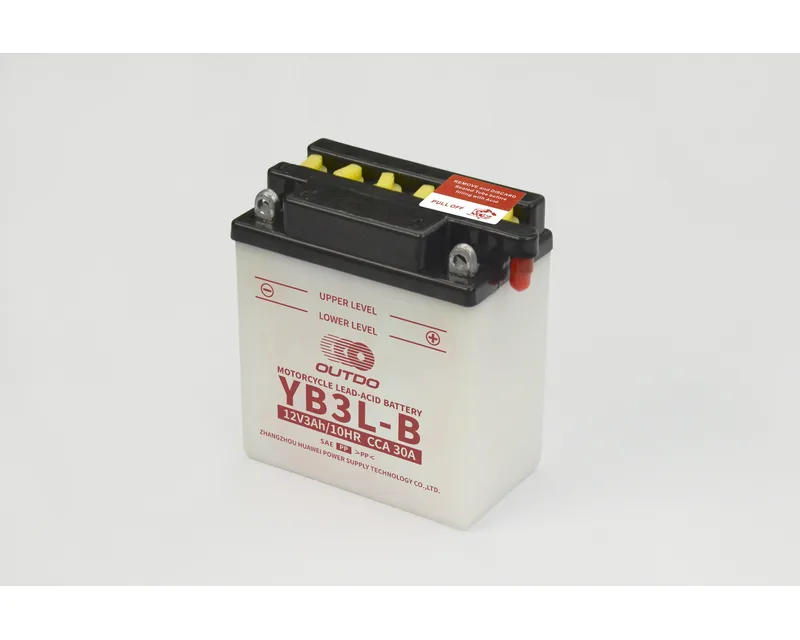

YB3L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 3Ah
- CCA (-18°C)
- 30A
- Dimensions (L x W x H)
- 98 x 56 x 110 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 0.88 kg
- Terminal
- G1
- Charge Current
- 0.3A
YB4L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 4Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 120 x 70 x 92 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.14 kg
- Terminal
- G3
- Charge Current
- 0.4A

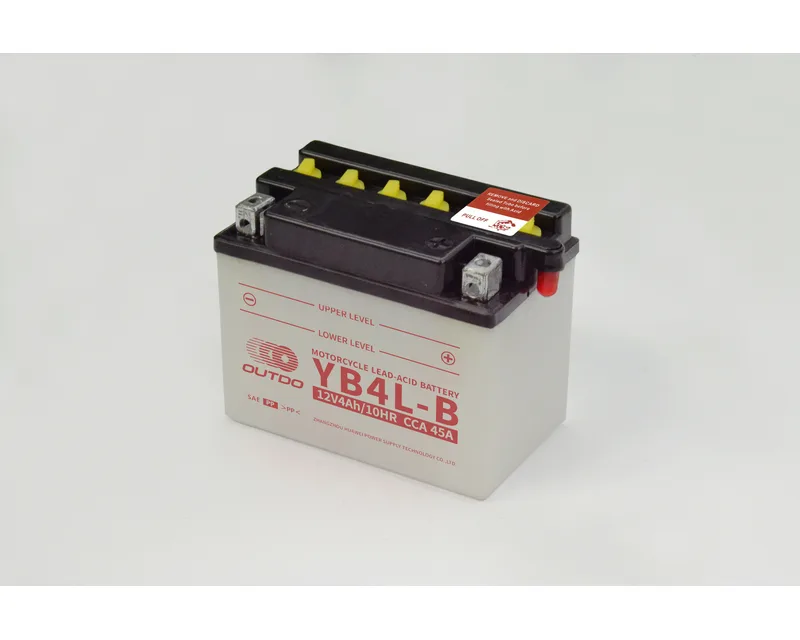

YB4L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 4Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 120 x 70 x 92 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.14 kg
- Terminal
- G3
- Charge Current
- 0.4A
YB5L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 60A
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.44 kg
- Terminal
- G1
- Charge Current
- 0.5A
YB5L-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 60A
- Dimensions (L x W x H)
- 120 x 60 x 130 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.44 kg
- Terminal
- G2
- Charge Current
- 0.5A
YB6.5B-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 60A
- Dimensions (L x W x H)
- 138 x 72 x 100 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.55 kg
- Terminal
- G1
- Charge Current
- 0.65A
YB6.5BL-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 60A
- Dimensions (L x W x H)
- 138 x 72 x 100 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.55 kg
- Terminal
- G1
- Charge Current
- 0.65A
YB6.5L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 60A
- Dimensions (L x W x H)
- 138 x 72 x 100 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.55 kg
- Terminal
- G1
- Charge Current
- 0.65A
YB7-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.95 kg
- Terminal
- G1
- Charge Current
- 0.8A
YB7-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.95 kg
- Terminal
- G1
- Charge Current
- 0.8A
YB7-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.95 kg
- Terminal
- G3
- Charge Current
- 0.8A
YB7L-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.95 kg
- Terminal
- G3
- Charge Current
- 0.8A
YB7-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.95 kg
- Terminal
- G3
- Charge Current
- 0.8A
YB7L-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.95 kg
- Terminal
- G3
- Charge Current
- 0.8A
YB7A-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 150 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.98 kg
- Terminal
- G1
- Charge Current
- 0.8A
YB7B-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 150 x 60 x 130 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 1.74 kg
- Terminal
- G1
- Charge Current
- 0.7A
YB7C-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 90A
- Dimensions (L x W x H)
- 130 x 90 x 114 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.85 kg
- Terminal
- G9
- Charge Current
- 0.7A
YB7L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.95 kg
- Terminal
- G1
- Charge Current
- 0.8A
YB7L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 135 x 75 x 133 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.95 kg
- Terminal
- G1
- Charge Current
- 0.8A
YB9-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.16 kg
- Terminal
- G1
- Charge Current
- 0.9A
YB9-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.16 kg
- Terminal
- G3
- Charge Current
- 0.9A
YB9A-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 155 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.18 kg
- Terminal
- G1
- Charge Current
- 0.9A
YB9-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.16 kg
- Terminal
- G1
- Charge Current
- 0.9A
YB9-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.16 kg
- Terminal
- G3
- Charge Current
- 0.9A
YB9L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.16 kg
- Terminal
- G1
- Charge Current
- 0.9A
YB9L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.16 kg
- Terminal
- G1
- Charge Current
- 0.9A
YB9L-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.16 kg
- Terminal
- G3
- Charge Current
- 0.9A
YB9L-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 105A
- Dimensions (L x W x H)
- 135 x 75 x 139 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.16 kg
- Terminal
- G3
- Charge Current
- 0.9A
YB10-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 145 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.62 kg
- Terminal
- G3
- Charge Current
- 1.1A
YB10-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 145 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.62 kg
- Terminal
- G3
- Charge Current
- 1.1A
YB10L-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 145 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.62 kg
- Terminal
- G3
- Charge Current
- 1.1A
YB10L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 145 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.62 kg
- Terminal
- G1
- Charge Current
- 1.1A
YB10L-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 145 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.62 kg
- Terminal
- G3
- Charge Current
- 1.1A
YB10A-A1
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 155 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.62 kg
- Terminal
- G1
- Charge Current
- 1.1A
YB10A-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 155 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.62 kg
- Terminal
- G3
- Charge Current
- 1.1A
YB10AL-A1
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 155 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.62 kg
- Terminal
- G1
- Charge Current
- 1.1A
YB10AL-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 11Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 135 x 90 x 155 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.62 kg
- Terminal
- G3
- Charge Current
- 1.1A
YB12A-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 155A
- Dimensions (L x W x H)
- 134 x 80 x 160 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.03 kg
- Terminal
- G1
- Charge Current
- 1.2A
YB12A-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 155A
- Dimensions (L x W x H)
- 134 x 80 x 160 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.03 kg
- Terminal
- G1
- Charge Current
- 1.2A
YB12AL-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 155A
- Dimensions (L x W x H)
- 134 x 80 x 160 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.03 kg
- Terminal
- G1
- Charge Current
- 1.2A
YB12AL-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 155A
- Dimensions (L x W x H)
- 134 x 80 x 160 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.03 kg
- Terminal
- G1
- Charge Current
- 1.2A
YB12AL-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 155A
- Dimensions (L x W x H)
- 134 x 80 x 160 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.03 kg
- Terminal
- G3
- Charge Current
- 1.2A
YB12B-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 165A
- Dimensions (L x W x H)
- 160 x 90 x 130 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.05 kg
- Terminal
- G3
- Charge Current
- 1.2A
YB12C-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 155A
- Dimensions (L x W x H)
- 134 x 80 x 175 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.05 kg
- Terminal
- G3
- Charge Current
- 1.2A
YB14-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.44 kg
- Terminal
- G3
- Charge Current
- 1.4A
YB14-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.44 kg
- Terminal
- G3
- Charge Current
- 1.4A
YB14A-A1
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 134 x 89 x 176 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.44 kg
- Terminal
- G1
- Charge Current
- 1.4A
YB14A-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 134 x 89 x 176 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.44 kg
- Terminal
- G3
- Charge Current
- 1.4A
YB14L-A1
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.44 kg
- Terminal
- G4
- Charge Current
- 1.4A
YB14L-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.44 kg
- Terminal
- G3
- Charge Current
- 1.4A
YB14L-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 185A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.44 kg
- Terminal
- G3
- Charge Current
- 1.4A
SYB14L-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 170A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.16 kg
- Terminal
- G3
- Charge Current
- 1.4A
YB16L-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 230A
- Dimensions (L x W x H)
- 175 x 100 x 155 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.5 kg
- Terminal
- G8
- Charge Current
- 1.9A
YB16AL-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 205 x 70 x 162 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.1 kg
- Terminal
- G5
- Charge Current
- 1.6A
YB16B-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 160 x 90 x 161 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.43 kg
- Terminal
- G2
- Charge Current
- 1.6A
YB16B-A1
Heavy Duty Type- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 160 x 90 x 161 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.43 kg
- Terminal
- G4
- Charge Current
- 1.6A
YB16C-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 230A
- Dimensions (L x W x H)
- 175 x 100 x 175 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.6 kg
- Terminal
- G3
- Charge Current
- 1.9A
YB16CL-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 230A
- Dimensions (L x W x H)
- 175 x 100 x 175 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.6 kg
- Terminal
- G3
- Charge Current
- 1.9A
HYB16A-A(AB)
Heavy Duty Type- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 160A
- Dimensions (L x W x H)
- 151 x 91 x 180 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.36 kg
- Terminal
- G8
- Charge Current
- 1.6A
YB18-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 180 x 90 x 162 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.9 kg
- Terminal
- G8
- Charge Current
- 1.8A
YB18L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 180 x 90 x 162 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.9 kg
- Terminal
- G8
- Charge Current
- 1.8A
YB18L-A2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 180 x 90 x 162 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.9 kg
- Terminal
- G8
- Charge Current
- 1.8A
Y50-N18A-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 205 x 90 x 176 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.35 kg
- Terminal
- G2
- Charge Current
- 2A
Y50-N18L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.35 kg
- Terminal
- G8
- Charge Current
- 2A
Y50-N18L-A3
Heavy Duty Type- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.35 kg
- Terminal
- G2
- Charge Current
- 2A
Y60-N24-A(B68-12)
Heavy Duty Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 184 x 124 x 170 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.9 kg
- Terminal
- G6
- Charge Current
- 2.4A
Y60-N24-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 184 x 124 x 170 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.9 kg
- Terminal
- G6
- Charge Current
- 2.4A
Y60-N24L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 184 x 124 x 170 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.9 kg
- Terminal
- G6
- Charge Current
- 2.4A
Y60-N24L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 184 x 124 x 170 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.9 kg
- Terminal
- G6
- Charge Current
- 2.4A
Y60-N30L-A(53030)
Heavy Duty Type- Voltage
- 12V
- Capacity
- 30Ah
- CCA (-18°C)
- 280A
- Dimensions (L x W x H)
- 187 x 130 x 170 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5.7 kg
- Terminal
- G7
- Charge Current
- 3A
Y60-N30-A(53034)
Heavy Duty Type- Voltage
- 12V
- Capacity
- 30Ah
- CCA (-18°C)
- 280A
- Dimensions (L x W x H)
- 187 x 130 x 170 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 5.7 kg
- Terminal
- G7
- Charge Current
- 3A
Y60-N30L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 30Ah
- CCA (-18°C)
- 280A
- Dimensions (L x W x H)
- 187 x 130 x 170 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5.7 kg
- Terminal
- G7
- Charge Current
- 3A
YHD4-12(YHD-12)
Heavy Duty Type- Voltage
- 12V
- Capacity
- 28Ah
- CCA (-18°C)
- 280A
- Dimensions (L x W x H)
- 205 x 130 x 165 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 5.7 kg
- Terminal
- G10
- Charge Current
- 2.8A
YB30L-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 30Ah
- CCA (-18°C)
- 280A
- Dimensions (L x W x H)
- 168 x 132 x 176 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5.7 kg
- Terminal
- G2
- Charge Current
- 3A
YB30CL-B
Heavy Duty Type- Voltage
- 12V
- Capacity
- 30Ah
- CCA (-18°C)
- 280A
- Dimensions (L x W x H)
- 168 x 132 x 192 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5.7 kg
- Terminal
- G2
- Charge Current
- 3A
SYB14L-B2
Heavy Duty Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 170A
- Dimensions (L x W x H)
- 134 x 89 x 166 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.16 kg
- Terminal
- G3
- Charge Current
- 1.4A
SY50-N18L-A
Heavy Duty Type- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 250A
- Dimensions (L x W x H)
- 205 x 90 x 162 mm
More specifications
- Type
- Heavy Duty Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.35 kg
- Terminal
- G8
- Charge Current
- 2A
| Model | Type | Voltage (V) | Capacity (Ah) | Hour Rate (HR) | Dimension±2 (mm) | Polarity | Dry Weight ±3% (KG) | Acid Volume (L) | Terminal | Regular Charge Current (A) | CCA (-18°C) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6N2-2A | Standard Type | 6 | 2 | 10 | 70*46*95 | - + | 0.37 | 0.19 | (+)310mmCA103 (-)145mmCA103 | 0.2 | N/A | |
| 6N2-2A-1 | Standard Type | 6 | 2 | 10 | 70*46*95 | + - | 0.37 | 0.19 | (+)175mmCA103 (-)300mmCA103 | 0.2 | N/A | |
| 6N2-2A-2 | Standard Type | 6 | 2 | 10 | 70*46*95 | + - | 0.37 | 0.19 | (+)100mmCA103 (-)150mmCB103 | 0.2 | N/A | |
| 6N2-2A-3 | Standard Type | 6 | 2 | 10 | 70*46*95 | + - | 0.37 | 0.19 | (+)100mmCB104 (-)150mmLA106 | 0.2 | N/A | |
| 6N2-2A-4 | Standard Type | 6 | 2 | 10 | 70*46*95 | + - | 0.37 | 0.19 | (+)100mmCB104 (-)100mmCB104 | 0.2 | N/A | |
| 6N2-2A-5 | Standard Type | 6 | 2 | 10 | 70*46*95 | + - | 0.37 | 0.19 | (+)150mmCB104 (-)150mmLA106 | 0.2 | N/A | |
| 6N2-2A-6 | Standard Type | 6 | 2 | 10 | 70*46*95 | + - | 0.37 | 0.19 | (+)150mmCA104 (-)150mmCB104 | 0.2 | N/A | |
| 6N2-2A-7 | Standard Type | 6 | 2 | 10 | 70*46*95 | + - | 0.37 | 0.19 | (+)110mmCB104 (-)110mmCB104 | 0.2 | N/A | |
| 6N2-2A-8 | Standard Type | 6 | 2 | 10 | 70*46*95 | + - | 0.37 | 0.19 | (+)270mmCB103 (-)140mmCA103 | 0.2 | N/A | |
| 6N2-2D | Standard Type | 6 | 2 | 10 | 70*46*95 | - + | 0.37 | 0.19 | (+)370mmCA103 (-)320mmCA103 | 0.2 | N/A | |
| 6N2A-2C | Standard Type | 6 | 2 | 10 | 70*46*105 | - + | 0.38 | 0.19 | (+)240mm (-)90mm | 0.2 | N/A | |
| 6N2A-2C-1 | Standard Type | 6 | 2 | 10 | 70*46*105 | + - | 0.38 | 0.19 | (+)240mm (-)90mm | 0.2 | N/A | |
| 6N2A-2C-2 | Standard Type | 6 | 2 | 10 | 70*46*105 | - + | 0.38 | 0.19 | (+)100mm (-)150mm | 0.2 | N/A | |
| 6N2A-2C-3 | Standard Type | 6 | 2 | 10 | 70*46*105 | - + | 0.38 | 0.19 | (+)230mm (-)95mm | 0.2 | N/A | |
| 6N4-2A | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)90mmCB104 (-)90mmCB104 | 0.4 | N/A | |
| 6N4-2A-1 | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)175mmCW104 (-)105mmCB104 | 0.4 | N/A | |
| 6N4-2A-2 | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)100mmCB104 (-)150mmLA106 | 0.4 | N/A | |
| 6N4-2A-3 | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)150mmCA104 (-)150mmCB104 | 0.4 | N/A | |
| 6N4-2A-4 | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)310mmCA103 (-)145mmCA103 | 0.4 | N/A | |
| 6N4-2A-5 | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)140mmCB104 (-)140mmLA106 | 0.4 | N/A | |
| 6N4-2A-6 | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)320mm (-)180mm | 0.4 | N/A | |
| 6N4-2A-7 | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)270mmCB103 (-)140mmCA103 | 0.4 | N/A | |
| 6N4-2A-8 | Standard Type | 6 | 4 | 10 | 70*70*95 | + - | 0.49 | 0.27 | (+)400mm (-)180mm | 0.4 | N/A | |
| 6N4A-4D | Standard Type | 6 | 4 | 10 | 60*56*130 | - + | 0.62 | 0.27 | (+)800mmCB104 (-)140mmLA106 | 0.4 | N/A | |
| 6N4A-4D-1 | Standard Type | 6 | 4 | 10 | 60*56*130 | - + | 0.62 | 0.27 | (+)95mmCB104 (-)95mmCB104 | 0.4 | N/A | |
| 6N4B-2A | Standard Type | 6 | 4 | 10 | 101*47*95 | - + | 0.51 | 0.27 | (+)95mmCB104 (-)95mmCB104 | 0.4 | N/A | |
| 6N4B-2A-1 | Standard Type | 6 | 4 | 10 | 101*47*95 | - + | 0.51 | 0.27 | (+)300mmCA103 (-)80mmCA103 | 0.4 | N/A | |
| 6N4B-2A-2 | Standard Type | 6 | 4 | 10 | 101*47*95 | - + | 0.51 | 0.27 | (+)80mmCB104 (-)250mmCA104 CB104LA106 | 0.4 | N/A | |
| 6N4B-2A-3 | Standard Type | 6 | 4 | 10 | 101*47*95 | + - | 0.51 | 0.27 | (+)100mmCB104 (-)100mmCA104 | 0.4 | N/A | |
| 6N4B-2A-4 | Standard Type | 6 | 4 | 10 | 101*47*95 | + - | 0.51 | 0.27 | (+)265mmCB103 (-)165mmCA103 | 0.4 | N/A | |
| 6N4B-2A-5 | Standard Type | 6 | 4 | 10 | 101*47*95 | + - | 0.51 | 0.27 | (+)400mm (-)55mm | 0.4 | N/A | |
| 6N4C-1B | Standard Type | 6 | 4 | 10 | 70*70*104 | - + | 0.55 | 0.27 | (+)290mm (-)95mm | 0.4 | N/A | |
| 6N5.5-1D | Standard Type | 6 | 5.5 | 10 | 89*69*99 | - + | 0.7 | 0.32 | (+)325mmCB103 (-)105mmLA106 | 0.55 | N/A | |
| 6N5.5-1D-1 | Standard Type | 6 | 5.5 | 10 | 89*69*99 | - + | 0.7 | 0.32 | (+)370mmCW1-2 (-)328mmCA103 | 0.55 | N/A | |
| 6N5.5-3D | Standard Type | 6 | 5.5 | 10 | 89*69*99 | - + | 0.7 | 0.32 | (+)290mmCB103 (-)105mmLA106 | 0.55 | N/A | |
| 6N6-1B | Standard Type | 6 | 6 | 10 | 98*56*110 | - + | 0.65 | 0.3 | (+)190mmCB103 (-)135mmCA103 | 0.6 | N/A | |
| 6N6-1B-1 | Standard Type | 6 | 6 | 10 | 98*56*110 | - + | 0.65 | 0.3 | (+)190mmCB103 (-)130mm | 0.6 | N/A | |
| 6N6-3B | Standard Type | 6 | 6 | 10 | 98*56*110 | - + | 0.65 | 0.3 | G1 | 0.6 | N/A | |
| 6N6-3B-1 | Standard Type | 6 | 6 | 10 | 98*56*110 | - + | 0.65 | 0.3 | G1 | 0.6 | N/A | |
| 6N6-1D | Standard Type | 6 | 6 | 10 | 98*56*110 | - + | 0.65 | 0.3 | (+)405mmCA104 CB103CW1-1 (-)145mmLA106 | 0.6 | N/A | |
| 6N6-1D-2 | Standard Type | 6 | 6 | 10 | 98*56*110 | - + | 0.65 | 0.3 | (+)150mmCW104 (-)50mmCA104 | 0.6 | N/A | |
| 6N6-1C | Standard Type | 6 | 6 | 10 | 98*56*110 | - + | 0.65 | 0.3 | (+)150mmCW104 (-)100mmCA104 | 0.6 | N/A | |
| B39-6 | Standard Type | 6 | 7 | 10 | 126*48*126 | - + | 0.95 | 0.34 | G1 | 0.7 | N/A | |
| B49-6 | Standard Type | 6 | 10 | 10 | 91*83*161 | - + | 1.21 | 0.7 | G1 | 1 | N/A | |
| 6N11-2D | Standard Type | 6 | 11 | 10 | 149*69*99 | - + | 1.24 | 0.45 | G1 | 1.1 | N/A | |
| 6N11A-1B | Standard Type | 6 | 11 | 10 | 120*60*130 | - + | 1.34 | 0.45 | G1 | 1.1 | N/A | |
| 6N11A-3 | Standard Type | 6 | 11 | 10 | 120*60*130 | - + | 1.34 | 0.45 | G1 | 1.1 | N/A | |
| 6N11A-4 | Standard Type | 6 | 11 | 10 | 120*60*130 | + - | 1.34 | 0.45 | G1 | 1.1 | N/A | |
| 6N11A-3A | Standard Type | 6 | 11 | 10 | 120*60*130 | - + | 1.34 | 0.45 | G1 | 1.1 | N/A | |
| 6N11A-3B | Standard Type | 6 | 11 | 10 | 120*60*130 | + - | 1.34 | 0.45 | G1 | 1.1 | N/A | |
| 6N11A-4A | Standard Type | 6 | 11 | 10 | 120*60*130 | + - | 1.34 | 0.45 | G1 | 1.1 | N/A | |
| 6N12A-2C | Standard Type | 6 | 12 | 10 | 155*56*115 | - + | 1.14 | 0.5 | G1 | 1.2 | N/A | |
| 6N12A-2D | Standard Type | 6 | 12 | 10 | 155*56*115 | - + | 1.14 | 0.5 | G1 | 1.2 | N/A | |
| 6N12-1B | Standard Type | 6 | 12 | 10 | 104*75*140 | - + | 1.53 | 0.6 | G1 | 1.2 | N/A | |
| B38-6A | Standard Type | 6 | 13 | 10 | 119*83*161 | - + | 1.62 | 0.7 | G1 | 1.3 | N/A | |
| 6YB8-3B | Standard Type | 6 | 8 | 10 | 120*70*95 | - + | 1.06 | 0.48 | G1 | 0.8 | N/A | |
| 6YB11-2D | Standard Type | 6 | 11 | 10 | 150*70*100 | - + | 1.32 | 0.5 | G1 | 1.1 | N/A | |
| 6N18-3B | Standard Type | 6 | 18 | 10 | 118*80*147 | - + | 1.7 | 0.72 | G1 | 1.8 | N/A | |
| 12N4-3B | Standard Type | 12 | 4 | 10 | 120*70*92 | - + | 1.05 | 0.4 | G3 | 0.4 | 40 | |
| 12N5-3B | Standard Type | 12 | 5 | 10 | 120*60*130 | - + | 1.4 | 0.45 | G1 | 0.5 | 45 | |
| 12N5-3B-2 | Standard Type | 12 | 5 | 10 | 120*60*130 | - + | 1.4 | 0.45 | G2 | 0.5 | 45 | |
| 12N5-4A | Standard Type | 12 | 5 | 10 | 120*60*130 | + - | 1.4 | 0.45 | G1 | 0.5 | 45 | |
| 12N5-4B | Standard Type | 12 | 5 | 10 | 120*60*130 | + - | 1.4 | 0.45 | G1 | 0.5 | 45 | |
| 12N5.5-3B | Standard Type | 12 | 5.5 | 10 | 135*60*130 | - + | 1.46 | 0.45 | G1 | 0.55 | 50 | |
| 12N5.5-4A | Standard Type | 12 | 5.5 | 10 | 135*60*130 | + - | 1.46 | 0.45 | G1 | 0.55 | 50 | |
| 12N5.5-4B | Standard Type | 12 | 5.5 | 10 | 135*60*130 | + - | 1.46 | 0.45 | G1 | 0.55 | 50 | |
| 12N5.5A-3B | Standard Type | 12 | 5.5 | 10 | 103*90*114 | - + | 1.46 | 0.45 | G7 | 0.55 | 50 | |
| 12N6-3B | Standard Type | 12 | 6 | 10 | 135*70*95 | - + | 1.33 | 0.36 | G1 | 0.6 | 50 | |
| 12N6-3B | Standard Type | 12 | 6 | 10 | 135*70*95 | - + | 1.43 | 0.36 | G1 | 0.6 | 50 | |
| 12N6-4A | Standard Type | 12 | 6 | 10 | 135*70*95 | + - | 1.43 | 0.36 | G1 | 0.6 | 50 | |
| 12N6-4B | Standard Type | 12 | 6 | 10 | 135*70*95 | + - | 1.43 | 0.36 | G1 | 0.6 | 50 | |
| 12N6.5-3B | Standard Type | 12 | 6.5 | 10 | 138*66*100 | - + | 1.55 | 0.45 | G1 | 0.65 | 55 | |
| 12N6.5A-4B | Standard Type | 12 | 6.5 | 10 | 138*72*118 | + - | 1.55 | 0.45 | G1 | 0.65 | 55 | |
| 12N6.5B-4B | Standard Type | 12 | 7 | 10 | 150*87*95 | + - | 1.81 | 0.61 | G3 | 0.7 | 80 | |
| 12N7-3A | Standard Type | 12 | 7 | 10 | 135*75*133 | - + | 1.7 | 0.61 | G1 | 0.7 | 85 | |
| 12N7-3B | Standard Type | 12 | 7 | 10 | 135*75*133 | - + | 1.7 | 0.61 | G1 | 0.7 | 85 | |
| 12N7-3B2 | Standard Type | 12 | 7 | 10 | 135*75*133 | - + | 1.7 | 0.61 | G3 | 0.7 | 85 | |
| 12N7-4A | Standard Type | 12 | 7 | 10 | 135*75*133 | + - | 1.78 | 0.61 | G1 | 0.7 | 85 | |
| 12N7-4A2 | Standard Type | 12 | 7 | 10 | 135*75*133 | + - | 1.7 | 0.61 | G3 | 0.7 | 85 | |
| 12N7-4B | Standard Type | 12 | 7 | 10 | 135*75*133 | + - | 1.7 | 0.61 | G1 | 0.7 | 85 | |
| 12N7A(B)-3A | Standard Type | 12 | 7 | 10 | 150*60*130 | - + | 1.74 | 0.61 | G1 | 0.7 | 85 | |
| 12N7A(B)-3B | Standard Type | 12 | 7 | 10 | 150*60*130 | - + | 1.74 | 0.61 | G1 | 0.7 | 85 | |
| 12N7A(B)-4A | Standard Type | 12 | 7 | 10 | 150*60*130 | + - | 1.74 | 0.61 | G1 | 0.7 | 85 | |
| 12N7D-3B | Standard Type | 12 | 7 | 10 | 135*75*149 | - + | 1.81 | 0.61 | G1 | 0.7 | 85 | |
| 12N9-3A | Standard Type | 12 | 9 | 10 | 135*75*139 | - + | 2.05 | 0.7 | G1 | 0.9 | 100 | |
| 12N9-3B | Standard Type | 12 | 9 | 10 | 135*75*139 | - + | 2.05 | 0.7 | G1 | 0.9 | 100 | |
| 12N9-4A | Standard Type | 12 | 9 | 10 | 135*75*139 | + - | 2.05 | 0.7 | G1 | 0.9 | 100 | |
| 12N9-4B-1 | Standard Type | 12 | 9 | 10 | 135*75*139 | + - | 2.05 | 0.7 | G1 | 0.9 | 100 | |
| 12N10-3A | Standard Type | 12 | 10 | 10 | 135*90*145 | - + | 2.12 | 0.76 | G1 | 1 | 110 | |
| 12N10-3A-2 | Standard Type | 12 | 10 | 10 | 135*90*145 | - + | 2.12 | 0.76 | G3 | 1 | 110 | |
| 12N10-3B | Standard Type | 12 | 10 | 10 | 135*90*145 | - + | 2.12 | 0.76 | G1 | 1 | 110 | |
| 12N11-3A | Standard Type | 12 | 11 | 10 | 135*90*155 | - + | 2.7 | 0.76 | G1 | 1.1 | 120 | |
| 12N11-3B | Standard Type | 12 | 11 | 10 | 135*90*155 | - + | 2.7 | 0.76 | G1 | 1.1 | 120 | |
| 12N12-3A | Standard Type | 12 | 12 | 10 | 200*75*133 | - + | 2.75 | 1 | G1 | 1.2 | 130 | |
| 12N12-3B | Standard Type | 12 | 12 | 10 | 200*75*133 | - + | 2.75 | 1 | G1 | 1.2 | 130 | |
| 12N12A-4A-1 | Standard Type | 12 | 12 | 10 | 134*80*160 | + - | 2.45 | 0.76 | G1 | 1.2 | 120 | |
| 12N12A-3A | Standard Type | 12 | 12 | 10 | 134*80*160 | - + | 2.45 | 0.76 | G1 | 1.2 | 120 | |
| 12N14-3A | Standard Type | 12 | 14 | 10 | 134*89*166 | - + | 3.05 | 0.95 | G3 | 1.4 | 150 | |
| 12N14-3B | Standard Type | 12 | 14 | 10 | 134*89*166 | - + | 3.05 | 0.95 | G3 | 1.4 | 150 | |
| 12N14-4A | Standard Type | 12 | 14 | 10 | 134*89*166 | + - | 3.05 | 0.95 | G3 | 1.4 | 150 | |
| 12N14-4B | Standard Type | 12 | 14 | 10 | 134*89*166 | + - | 3.05 | 0.95 | G3 | 1.4 | 150 | |
| 12N16-3A | Standard Type | 12 | 16 | 10 | 175*100*155 | - + | 3.88 | 1.4 | G1 | 1.6 | 145 | |
| 12N16-3B | Standard Type | 12 | 16 | 10 | 175*100*155 | - + | 3.88 | 1.4 | G1 | 1.6 | 145 | |
| 12N16-4A | Standard Type | 12 | 16 | 10 | 175*100*155 | + - | 3.88 | 1.4 | G1 | 1.6 | 145 | |
| 12N16-4B | Standard Type | 12 | 16 | 10 | 175*100*155 | + - | 3.88 | 1.4 | G1 | 1.6 | 145 | |
| 12C16A-3A | Standard Type | 12 | 19 | 10 | 186*82*171 | - + | 4.25 | 1.4 | G7 | 1.9 | 170 | |
| 12C16A-3B | Standard Type | 12 | 19 | 10 | 186*82*171 | - + | 4.25 | 1.4 | G7 | 1.9 | 170 | |
| 12N18-3 | Standard Type | 12 | 18 | 10 | 205*90*162 | - + | 3.66 | 1.4 | G2 | 1.8 | 190 | |
| 12N18-3A | Standard Type | 12 | 18 | 10 | 205*90*162 | - + | 3.66 | 1.4 | G2 | 1.8 | 190 | |
| 12N18-3B | Standard Type | 12 | 18 | 10 | 205*90*162 | - + | 3.66 | 1.4 | G2 | 1.8 | 190 | |
| 12N18-4 | Standard Type | 12 | 18 | 10 | 205*90*162 | + - | 3.66 | 1.4 | G2 | 1.8 | 190 | |
| 12N18-4A | Standard Type | 12 | 18 | 10 | 205*90*162 | + - | 3.66 | 1.4 | G2 | 1.8 | 190 | |
| 12N18-4B | Standard Type | 12 | 18 | 10 | 205*90*162 | + - | 3.66 | 1.4 | G2 | 1.8 | 190 | |
| 12N24-3 | Standard Type | 12 | 24 | 10 | 184*124*174 | - + | 4.9 | 1.9 | G6 | 2.4 | 250 | |
| 12N24-3A | Standard Type | 12 | 24 | 10 | 184*124*174 | - + | 4.9 | 1.9 | G6 | 2.4 | 250 | |
| 12N24-4 | Standard Type | 12 | 24 | 10 | 184*124*174 | + - | 4.9 | 1.9 | G6 | 2.4 | 250 | |
| 12N24-4A | Standard Type | 12 | 24 | 10 | 184*124*174 | + - | 4.9 | 1.9 | G6 | 2.4 | 250 | |
| YB2.5L-C | Heavy Duty Type | 12 | 2.5 | 10 | 80*70*105 | - + | 0.72 | 0.27 | (+)100mmCB103 (-)100mmCA103 | 0.25 | 20 | |
| YB2.5L-A | Heavy Duty Type | 12 | 2.5 | 10 | 80*70*105 | - + | 0.72 | 0.27 | (+)100mmCB103 (-)100mmCA103 | 0.25 | 20 | |
| YB3L-A | Heavy Duty Type | 12 | 3 | 10 | 98*56*110 | - + | 0.88 | 0.3 | G1 | 0.3 | 30 | |
| YB3L-B | Heavy Duty Type | 12 | 3 | 10 | 98*56*110 | - + | 0.88 | 0.3 | G1 | 0.3 | 30 | |
| YB4L-A | Heavy Duty Type | 12 | 4 | 10 | 120*70*92 | - + | 1.14 | 0.34 | G3 | 0.4 | 45 | |
| YB4L-B | Heavy Duty Type | 12 | 4 | 10 | 120*70*92 | - + | 1.14 | 0.34 | G3 | 0.4 | 45 | |
| YB5L-B | Heavy Duty Type | 12 | 5 | 10 | 120*60*130 | - + | 1.44 | 0.45 | G1 | 0.5 | 60 | |
| YB5L-B2 | Heavy Duty Type | 12 | 5 | 10 | 120*60*130 | - + | 1.44 | 0.45 | G2 | 0.5 | 60 | |
| YB6.5B-B | Heavy Duty Type | 12 | 6.5 | 10 | 138*72*100 | + - | 1.55 | 0.45 | G1 | 0.65 | 60 | |
| YB6.5BL-B | Heavy Duty Type | 12 | 6.5 | 10 | 138*72*100 | - + | 1.55 | 0.45 | G1 | 0.65 | 60 | |
| YB6.5L-A | Heavy Duty Type | 12 | 6.5 | 10 | 138*72*100 | - + | 1.55 | 0.45 | G1 | 0.65 | 60 | |
| YB7-A | Heavy Duty Type | 12 | 8 | 10 | 135*75*133 | + - | 1.95 | 0.61 | G1 | 0.8 | 100 | |
| YB7-B | Heavy Duty Type | 12 | 8 | 10 | 135*75*133 | + - | 1.95 | 0.61 | G1 | 0.8 | 100 | |
| YB7-A2 | Heavy Duty Type | 12 | 8 | 10 | 135*75*133 | + - | 1.95 | 0.61 | G3 | 0.8 | 100 | |
| YB7L-A2 | Heavy Duty Type | 12 | 8 | 10 | 135*75*133 | - + | 1.95 | 0.61 | G3 | 0.8 | 100 | |
| YB7-B2 | Heavy Duty Type | 12 | 8 | 10 | 135*75*133 | + - | 1.95 | 0.61 | G3 | 0.8 | 100 | |
| YB7L-B2 | Heavy Duty Type | 12 | 8 | 10 | 135*75*133 | - + | 1.95 | 0.61 | G3 | 0.8 | 100 | |
| YB7A-A | Heavy Duty Type | 12 | 8 | 10 | 135*75*150 | + - | 1.98 | 0.61 | G1 | 0.8 | 100 | |
| YB7B-B | Heavy Duty Type | 12 | 7 | 10 | 150*60*130 | + - | 1.74 | 0.61 | G1 | 0.7 | 85 | |
| YB7C-A | Heavy Duty Type | 12 | 7 | 10 | 130*90*114 | - + | 1.85 | 0.61 | G9 | 0.7 | 90 | |
| YB7L-A | Heavy Duty Type | 12 | 8 | 10 | 135*75*133 | - + | 1.95 | 0.61 | G1 | 0.8 | 100 | |
| YB7L-B | Heavy Duty Type | 12 | 8 | 10 | 135*75*133 | - + | 1.95 | 0.61 | G1 | 0.8 | 100 | |
| YB9-A | Heavy Duty Type | 12 | 9 | 10 | 135*75*139 | + - | 2.16 | 0.7 | G1 | 0.9 | 105 | |
| YB9-A2 | Heavy Duty Type | 12 | 9 | 10 | 135*75*139 | + - | 2.16 | 0.7 | G3 | 0.9 | 105 | |
| YB9A-A | Heavy Duty Type | 12 | 9 | 10 | 135*75*155 | + - | 2.18 | 0.7 | G1 | 0.9 | 105 | |
| YB9-B | Heavy Duty Type | 12 | 9 | 10 | 135*75*139 | + - | 2.16 | 0.7 | G1 | 0.9 | 105 | |
| YB9-B2 | Heavy Duty Type | 12 | 9 | 10 | 135*75*139 | + - | 2.16 | 0.7 | G3 | 0.9 | 105 | |
| YB9L-A | Heavy Duty Type | 12 | 9 | 10 | 135*75*139 | - + | 2.16 | 0.7 | G1 | 0.9 | 105 | |
| YB9L-B | Heavy Duty Type | 12 | 9 | 10 | 135*75*139 | - + | 2.16 | 0.7 | G1 | 0.9 | 105 | |
| YB9L-A2 | Heavy Duty Type | 12 | 9 | 10 | 135*75*139 | - + | 2.16 | 0.7 | G3 | 0.9 | 105 | |
| YB9L-B2 | Heavy Duty Type | 12 | 9 | 10 | 135*75*139 | - + | 2.16 | 0.7 | G3 | 0.9 | 105 | |
| YB10-A2 | Heavy Duty Type | 12 | 11 | 10 | 135*90*145 | + - | 2.62 | 0.76 | G3 | 1.1 | 130 | |
| YB10-B2 | Heavy Duty Type | 12 | 11 | 10 | 135*90*145 | + - | 2.62 | 0.76 | G3 | 1.1 | 130 | |
| YB10L-A2 | Heavy Duty Type | 12 | 11 | 10 | 135*90*145 | - + | 2.62 | 0.76 | G3 | 1.1 | 130 | |
| YB10L-B | Heavy Duty Type | 12 | 11 | 10 | 135*90*145 | - + | 2.62 | 0.76 | G1 | 1.1 | 130 | |
| YB10L-B2 | Heavy Duty Type | 12 | 11 | 10 | 135*90*145 | - + | 2.62 | 0.76 | G3 | 1.1 | 130 | |
| YB10A-A1 | Heavy Duty Type | 12 | 11 | 10 | 135*90*155 | + - | 2.62 | 0.76 | G1 | 1.1 | 130 | |
| YB10A-A2 | Heavy Duty Type | 12 | 11 | 10 | 135*90*155 | + - | 2.62 | 0.76 | G3 | 1.1 | 130 | |
| YB10AL-A1 | Heavy Duty Type | 12 | 11 | 10 | 135*90*155 | - + | 2.62 | 0.76 | G1 | 1.1 | 130 | |
| YB10AL-A2 | Heavy Duty Type | 12 | 11 | 10 | 135*90*155 | - + | 2.62 | 0.76 | G3 | 1.1 | 130 | |
| YB12A-A | Heavy Duty Type | 12 | 12 | 10 | 134*80*160 | + - | 3.03 | 0.76 | G1 | 1.2 | 155 | |
| YB12A-B | Heavy Duty Type | 12 | 12 | 10 | 134*80*160 | + - | 3.03 | 0.76 | G1 | 1.2 | 155 | |
| YB12AL-A | Heavy Duty Type | 12 | 12 | 10 | 134*80*160 | - + | 3.03 | 0.76 | G1 | 1.2 | 155 | |
| YB12AL-B | Heavy Duty Type | 12 | 12 | 10 | 134*80*160 | - + | 3.03 | 0.76 | G1 | 1.2 | 155 | |
| YB12AL-A2 | Heavy Duty Type | 12 | 12 | 10 | 134*80*160 | - + | 3.03 | 0.76 | G3 | 1.2 | 155 | |
| YB12B-B2 | Heavy Duty Type | 12 | 12 | 10 | 160*90*130 | + - | 3.05 | 0.76 | G3 | 1.2 | 165 | |
| YB12C-A | Heavy Duty Type | 12 | 12 | 10 | 134*80*175 | + - | 3.05 | 0.76 | G3 | 1.2 | 155 | |
| YB14-A2 | Heavy Duty Type | 12 | 14 | 10 | 134*89*166 | + - | 3.44 | 0.9 | G3 | 1.4 | 185 | |
| YB14-B2 | Heavy Duty Type | 12 | 14 | 10 | 134*89*166 | + - | 3.44 | 0.9 | G3 | 1.4 | 185 | |
| YB14A-A1 | Heavy Duty Type | 12 | 14 | 10 | 134*89*176 | + - | 3.44 | 0.9 | G1 | 1.4 | 185 | |
| YB14A-A2 | Heavy Duty Type | 12 | 14 | 10 | 134*89*176 | + - | 3.44 | 0.9 | G3 | 1.4 | 185 | |
| YB14L-A1 | Heavy Duty Type | 12 | 14 | 10 | 134*89*166 | - + | 3.44 | 0.9 | G4 | 1.4 | 185 | |
| YB14L-A2 | Heavy Duty Type | 12 | 14 | 10 | 134*89*166 | - + | 3.44 | 0.9 | G3 | 1.4 | 185 | |
| YB14L-B2 | Heavy Duty Type | 12 | 14 | 10 | 134*89*166 | - + | 3.44 | 0.9 | G3 | 1.4 | 185 | |
| SYB14L-A2 | Heavy Duty Type | 12 | 14 | 10 | 134*89*166 | - + | 3.16 | 0.9 | G3 | 1.4 | 170 | |
| YB16L-A2 | Heavy Duty Type | 12 | 19 | 10 | 175*100*155 | - + | 4.5 | 1.4 | G8 | 1.9 | 230 | |
| YB16AL-A2 | Heavy Duty Type | 12 | 16 | 10 | 205*70*162 | - + | 4.1 | 1.4 | G5 | 1.6 | 190 | |
| YB16B-A | Heavy Duty Type | 12 | 16 | 10 | 160*90*161 | + - | 3.43 | 1.4 | G2 | 1.6 | 200 | |
| YB16B-A1 | Heavy Duty Type | 12 | 16 | 10 | 160*90*161 | + - | 3.43 | 1.4 | G4 | 1.6 | 200 | |
| YB16C-B | Heavy Duty Type | 12 | 19 | 10 | 175*100*175 | + - | 4.6 | 1.4 | G3 | 1.9 | 230 | |
| YB16CL-B | Heavy Duty Type | 12 | 19 | 10 | 175*100*175 | - + | 4.6 | 1.4 | G3 | 1.9 | 230 | |
| HYB16A-A(AB) | Heavy Duty Type | 12 | 16 | 10 | 151*91*180 | + - | 3.36 | 1.4 | G8 | 1.6 | 160 | |
| YB18-A | Heavy Duty Type | 12 | 18 | 10 | 180*90*162 | + - | 3.9 | 1.4 | G8 | 1.8 | 200 | |
| YB18L-A | Heavy Duty Type | 12 | 18 | 10 | 180*90*162 | - + | 3.9 | 1.4 | G8 | 1.8 | 200 | |
| YB18L-A2 | Heavy Duty Type | 12 | 18 | 10 | 180*90*162 | - + | 3.9 | 1.4 | G8 | 1.8 | 200 | |
| Y50-N18A-A | Heavy Duty Type | 12 | 20 | 10 | 205*90*176 | + - | 4.35 | 1.4 | G2 | 2 | 250 | |
| Y50-N18L-A | Heavy Duty Type | 12 | 20 | 10 | 205*90*162 | - + | 4.35 | 1.4 | G8 | 2 | 250 | |
| Y50-N18L-A3 | Heavy Duty Type | 12 | 20 | 10 | 205*90*162 | - + | 4.35 | 1.4 | G2 | 2 | 250 | |
| Y60-N24-A(B68-12) | Heavy Duty Type | 12 | 24 | 10 | 184*124*170 | + - | 4.9 | 1.9 | G6 | 2.4 | 250 | |
| Y60-N24-B | Heavy Duty Type | 12 | 24 | 10 | 184*124*170 | + - | 4.9 | 1.9 | G6 | 2.4 | 250 | |
| Y60-N24L-A | Heavy Duty Type | 12 | 24 | 10 | 184*124*170 | - + | 4.9 | 1.9 | G6 | 2.4 | 250 | |
| Y60-N24L-B | Heavy Duty Type | 12 | 24 | 10 | 184*124*170 | - + | 4.9 | 1.9 | G6 | 2.4 | 250 | |
| Y60-N30L-A(53030) | Heavy Duty Type | 12 | 30 | 10 | 187*130*170 | - + | 5.7 | 1.9 | G7 | 3 | 280 | |
| Y60-N30-A(53034) | Heavy Duty Type | 12 | 30 | 10 | 187*130*170 | + - | 5.7 | 1.9 | G7 | 3 | 280 | |
| Y60-N30L-B | Heavy Duty Type | 12 | 30 | 10 | 187*130*170 | - + | 5.7 | 1.9 | G7 | 3 | 280 | |
| YHD4-12(YHD-12) | Heavy Duty Type | 12 | 28 | 10 | 205*130*165 | + - | 5.7 | 1.9 | G10 | 2.8 | 280 | |
| YB30L-B | Heavy Duty Type | 12 | 30 | 10 | 168*132*176 | - + | 5.7 | 1.9 | G2 | 3 | 280 | |
| YB30CL-B | Heavy Duty Type | 12 | 30 | 10 | 168*132*192 | - + | 5.7 | 1.9 | G2 | 3 | 280 | |
| SYB14L-B2 | Heavy Duty Type | 12 | 14 | 10 | 134*89*166 | - + | 3.16 | 0.9 | G3 | 1.4 | 170 | |
| SY50-N18L-A | Heavy Duty Type | 12 | 20 | 10 | 205*90*162 | - + | 4.35 | 1.4 | G8 | 2 | 250 |
