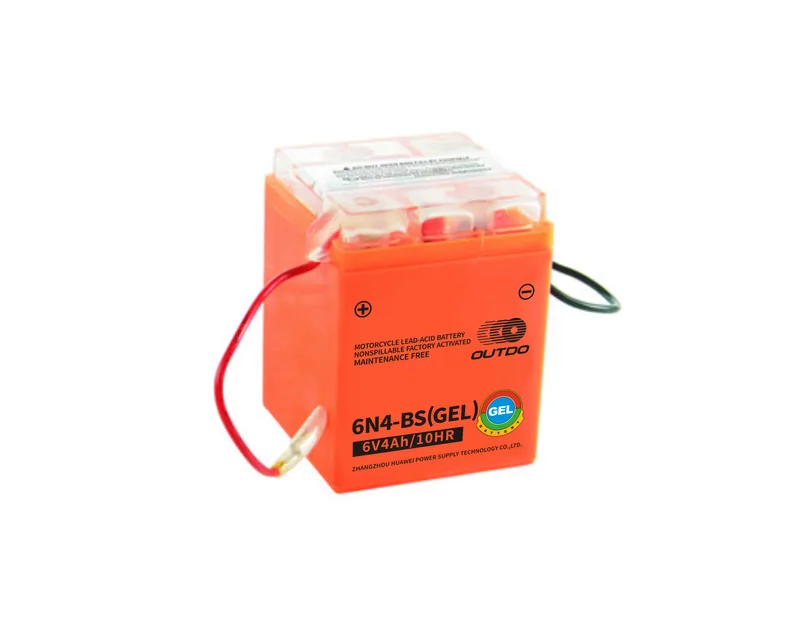

6N4-BS(GEL)
YB Type- Voltage
- 6V
- Capacity
- 4Ah
- CCA (-18°C)
- 30A
- Dimensions (L x W x H)
- 71 x 71 x 93 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 0.81 kg
- Charge Current
- 0.4A
GEL
Motorcycle Battery
The Valve-Regulated GEL Battery features a fully sealed, maintenance-free design with a low self-discharge rate and reliable sealing technology for safe and dependable operation. Utilizing a unique lead-calcium multi-alloy and advanced active material formulation, it delivers excellent performance, extended service life, and reliable power for demanding applications.
Key Features of Our GEL Battery
100% Pre-Delivery Tested
Every battery passes a full pre-delivery inspection to ensure stable quality and reliable performance.

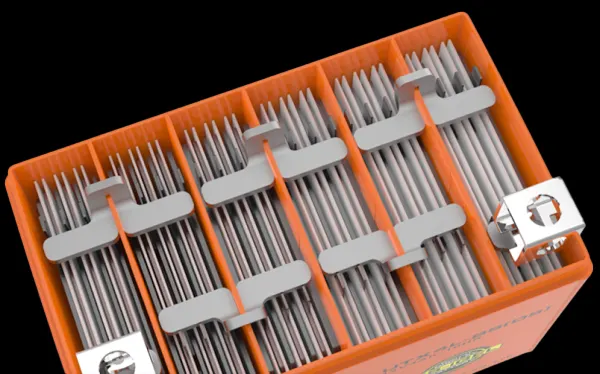

Pb-Ca Grid Alloy Plates
Lead-calcium grid alloy battery plates give low water loss, stable quality, and a low self-discharge rate.
Sealed & Maintenance-Free
Completely sealed and maintenance free, with a low self-discharge rate and good sealing property.
Low Internal Resistance
Low internal resistance delivers strong high-rate discharge performance for reliable starts.

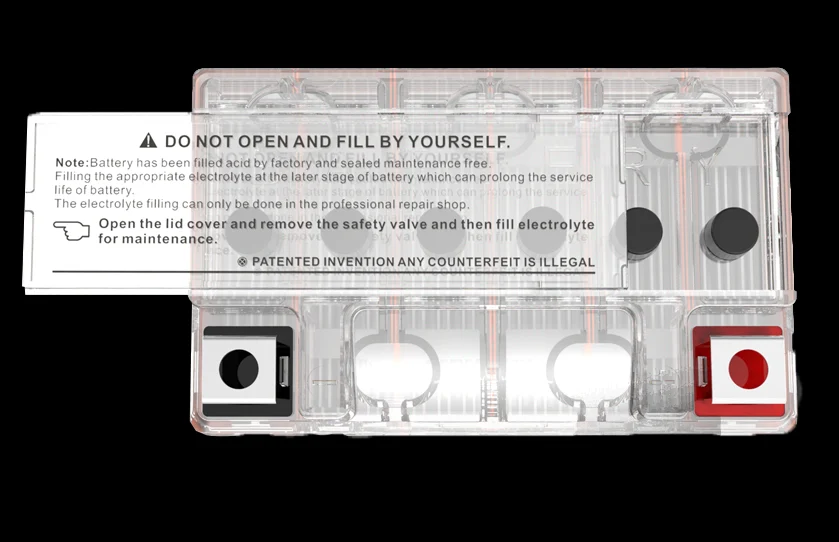

Push-to-open Lid Cover
Adding acid for maintenance by opening lid cover to prolong the battery service life.
Injected with Gel electrolyte instead of acid, the battery is of super performance
- •Higher capacity.
- •Good performance in the low temperatures, can meet requirements of starting currents in -30℃ to -50℃.
- •Stable characteristic in high temperatures, can meet requirements of its usage in temperature of 65℃ and even higher.
- •Longer cycle service life than normal lead acid battery type.
GEL Safe Use Precautions
I. Warning
- The electrolyte inside the battery is corrosive and may damage metal, cotton products, and stone. Handle the battery properly.
- Do NOT place the battery on its side or upside down to prevent acid leakage.
- Hydrogen gas may be generated during battery operation and charging. If exposed to fire or sparks, it may cause an explosion. Please observe the following precautions:
- Use and maintain the battery in a well-ventilated area.
- Keep sparks and open flames away during battery maintenance.
- If the battery is charged outside the vehicle, do not install it immediately after charging. Let it rest for at least 10 minutes to allow hydrogen gas to dissipate.
- After riding, do not remove the battery immediately. Let it rest for at least 10 minutes.
- During charging, the ambient temperature should not exceed 45°C. If it does, cool the battery with water or reduce the charging current and voltage.
- Do NOT place metal tools or conductive materials near the terminals to avoid short-circuiting.
- Do NOT strike the terminals with a hammer during battery installation.
- Handle the battery carefully during transportation to avoid impact or damage.
II. GEL Installation and Maintenance
- Connect the positive terminal first. Do NOT reverse the polarity, otherwise the motorcycle's electrical equipment may be damaged.
- Activation Notice:
- Some batteries may not be activated immediately due to differences in vehicle performance. Start the engine several times or gently apply the throttle to help activate the battery more easily.
- Manual activation is recommended to ensure the exact activation date is recorded.
- During acid filling, wear acid-resistant clothing, rubber boots, safety goggles, and rubber gloves. If acid splashes onto skin or clothing, rinse immediately with a large amount of water. Seek medical attention if necessary.
- Do NOT over-discharge the battery. Recharge the battery promptly after it has been discharged.
- Disconnect the negative terminal if the motorcycle will not be used for a long period.
- Do NOT check whether the battery has power by short-circuiting the terminals.
- Regularly check the terminal connections and ensure the terminals are clean to maintain good contact.
- Store the battery in a dry, well-ventilated place at 5-25°C, away from direct sunlight. Keep the battery at least 2 meters away from heat sources. Check and maintain the battery regularly.
Every model in this series. Filter by voltage or type, or search a model number.
Voltage
Type
Showing 40 of 40 models
YB3L-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 3Ah
- CCA (-18°C)
- 35A
- Dimensions (L x W x H)
- 98 x 56 x 109 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.19 kg
- Charge Current
- 0.3A
- Meter CCA
- 80A
.webp)

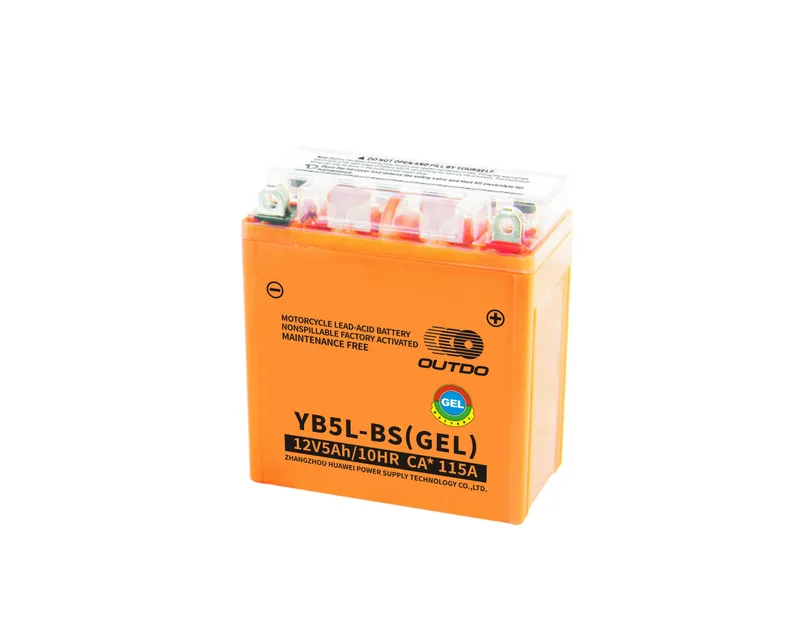

YB5L-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 55A
- Dimensions (L x W x H)
- 119 x 60 x 129 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.77 kg
- Charge Current
- 0.5A
- Meter CCA
- 115A
Variants
- Type
- YB Type
- Voltage
- 12V
- Capacity
- 5Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 119 x 60 x 129 mm
- Polarity
- - +
- Weight
- 1.86 kg
- Charge Current
- 0.5A
- Meter CCA
- 80A
- CCA (-18°C)
- 50A
.webp)

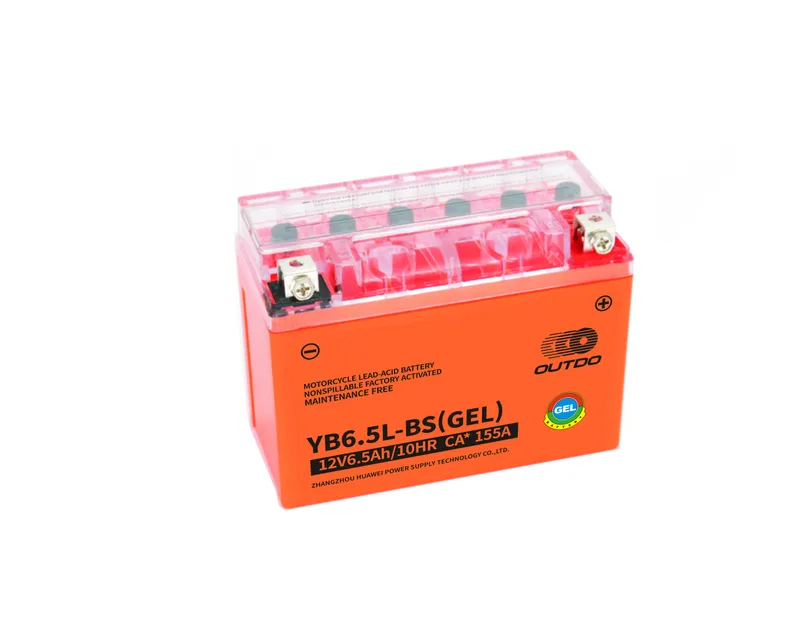

YB6.5L-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 75A
- Dimensions (L x W x H)
- 138 x 65 x 100 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.98 kg
- Charge Current
- 0.65A
- Meter CCA
- 155A
Variants
- Type
- YB Type
- Voltage
- 12V
- Capacity
- 6.5Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 138 x 65 x 100 mm
- Polarity
- - +
- Weight
- 2.16 kg
- Charge Current
- 0.65A
- Meter CCA
- 140A
- CCA (-18°C)
- 75A
YB7B-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 75A
- Dimensions (L x W x H)
- 148 x 60 x 128 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.21 kg
- Charge Current
- 0.7A
- Meter CCA
- 140A
.webp)

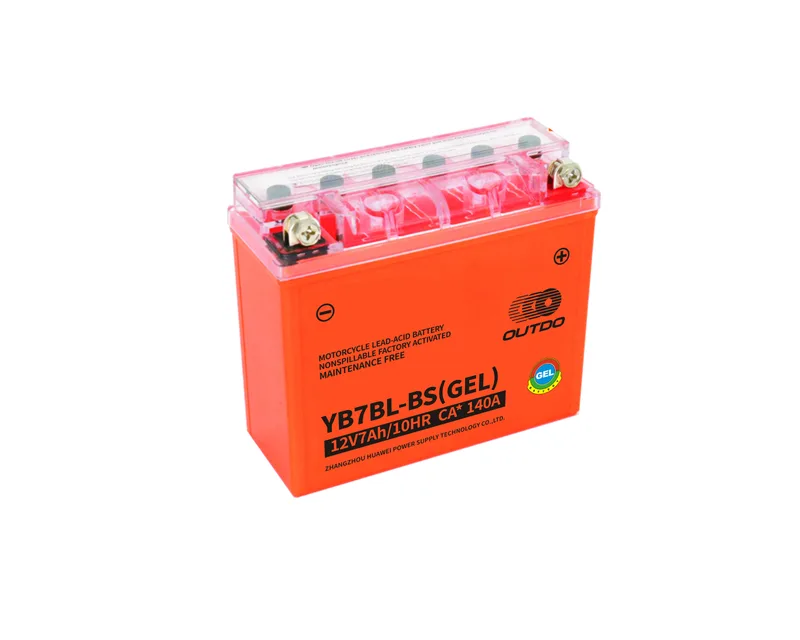

YB7BL-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 75A
- Dimensions (L x W x H)
- 148 x 60 x 128 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.21 kg
- Charge Current
- 0.7A
- Meter CCA
- 140A
.webp)

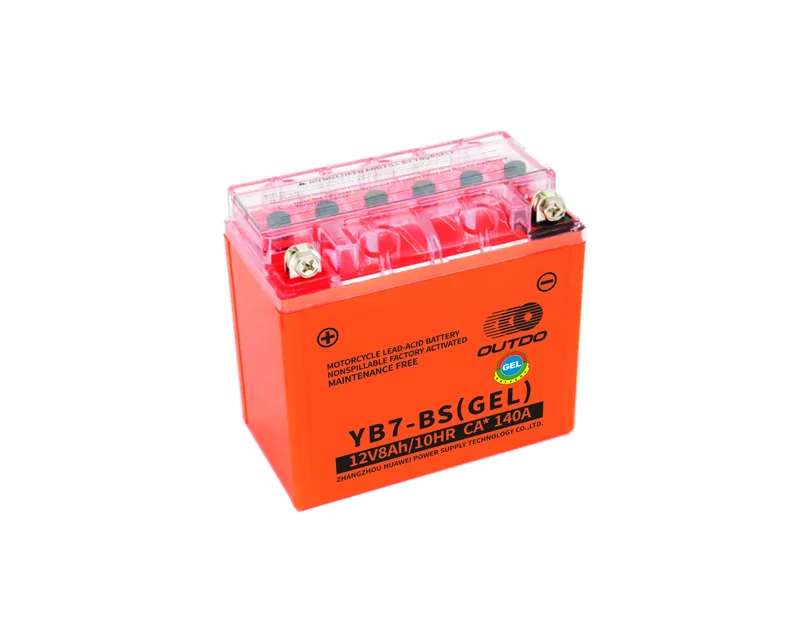

YB7-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 137 x 76 x 128 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.65 kg
- Charge Current
- 0.8A
- Meter CCA
- 140A
YB7L-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 137 x 76 x 128 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.65 kg
- Charge Current
- 0.8A
- Meter CCA
- 140A
.webp)

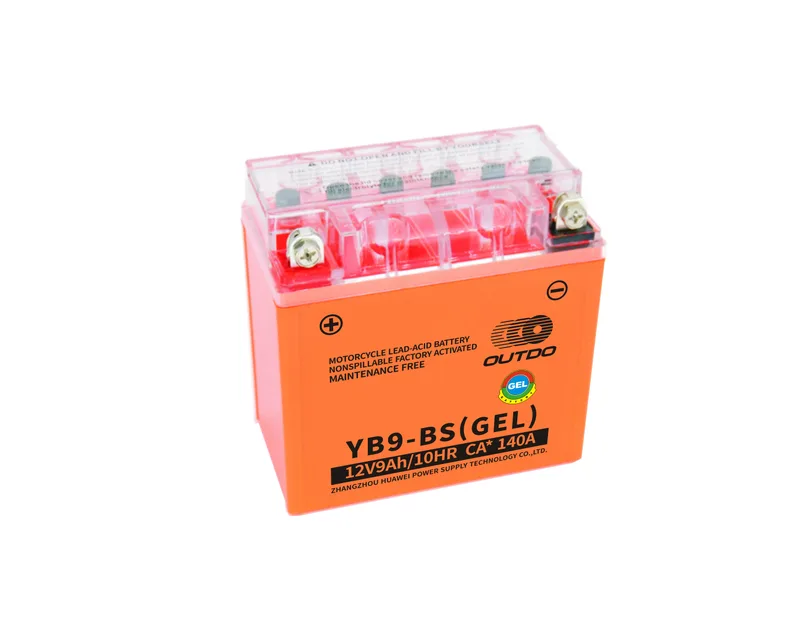

YB9-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 137 x 76 x 134 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.7 kg
- Charge Current
- 0.9A
- Meter CCA
- 140A
Variants
- Type
- YB Type
- Voltage
- 12V
- Capacity
- 9Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 137 x 76 x 134 mm
- Polarity
- + -
- Weight
- 2.95 kg
- Charge Current
- 0.9A
- Meter CCA
- 180A
- CCA (-18°C)
- 110A
.webp)

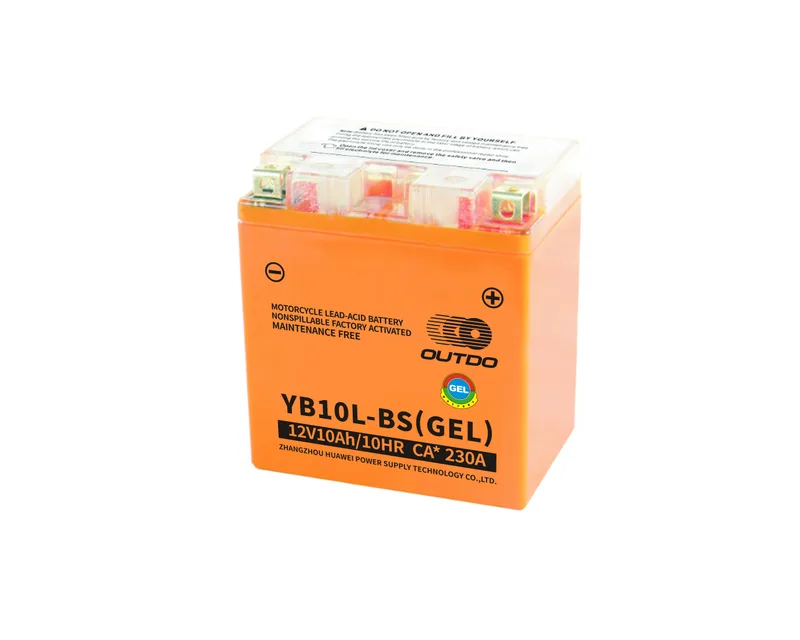

YB10L-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 132 x 88 x 145 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 3.45 kg
- Charge Current
- 1A
- Meter CCA
- 230A
.webp)

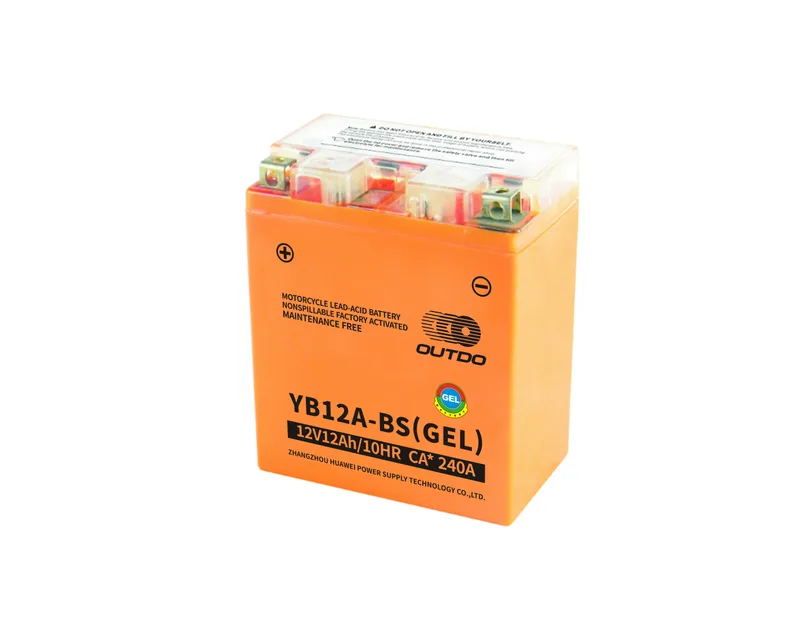

YB12A-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 140A
- Dimensions (L x W x H)
- 134 x 78 x 156 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.63 kg
- Charge Current
- 1.2A
- Meter CCA
- 240A
YB16L-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 240A
- Dimensions (L x W x H)
- 173 x 100 x 152 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.15 kg
- Charge Current
- 1.9A
- Meter CCA
- 390A
YB16CL-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 19Ah
- CCA (-18°C)
- 240A
- Dimensions (L x W x H)
- 173 x 100 x 175 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.25 kg
- Charge Current
- 1.9A
- Meter CCA
- 320A
YB30L-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 30Ah
- CCA (-18°C)
- 230A
- Dimensions (L x W x H)
- 166 x 127 x 175 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 8.5 kg
- Charge Current
- 3A
- Meter CCA
- 290A
YB32L-BS(GEL)
YB Type- Voltage
- 12V
- Capacity
- 32Ah
- CCA (-18°C)
- 340A
- Dimensions (L x W x H)
- 166 x 127 x 175 mm
More specifications
- Type
- YB Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 9.1 kg
- Charge Current
- 3.2A
- Meter CCA
- 390A
UTZ5S(GEL)
UT Type- Voltage
- 12V
- Capacity
- 4Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 113 x 70 x 87 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.3 kg
- Charge Current
- 0.4A
- Meter CCA
- 115A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 4Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 113 x 70 x 87 mm
- Polarity
- - +
- Weight
- 1.4 kg
- Charge Current
- 0.4A
- Meter CCA
- 120A
- CCA (-18°C)
- 50A
UTZ6V(GEL)
UT Type- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 113 x 70 x 105 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.02 kg
- Charge Current
- 0.6A
- Meter CCA
- 150A
.webp)

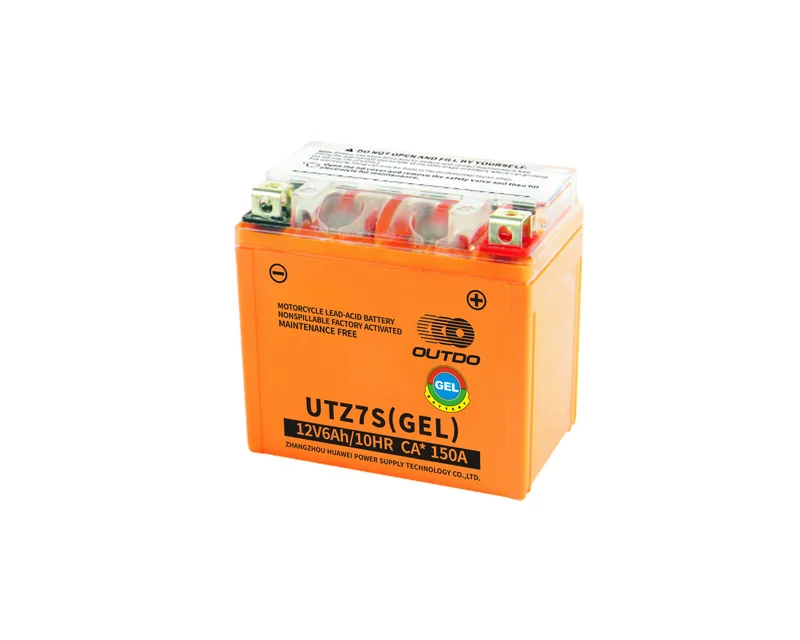

UTZ7S(GEL)
UT Type- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 85A
- Dimensions (L x W x H)
- 113 x 70 x 105 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.02 kg
- Charge Current
- 0.6A
- Meter CCA
- 150A
.webp)

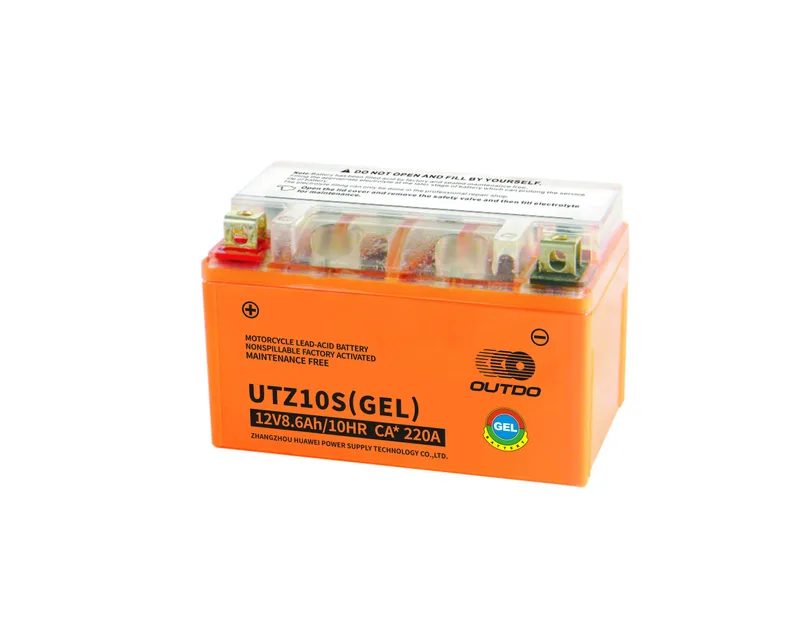

UTZ10S(GEL)
UT Type- Voltage
- 12V
- Capacity
- 8.6Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 150 x 86 x 94 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.85 kg
- Charge Current
- 0.86A
- Meter CCA
- 220A
UTZ12S(GEL)
UT Type- Voltage
- 12V
- Capacity
- 11.2Ah
- CCA (-18°C)
- 130A
- Dimensions (L x W x H)
- 150 x 86 x 111 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.36 kg
- Charge Current
- 1.12A
- Meter CCA
- 200A
.webp)

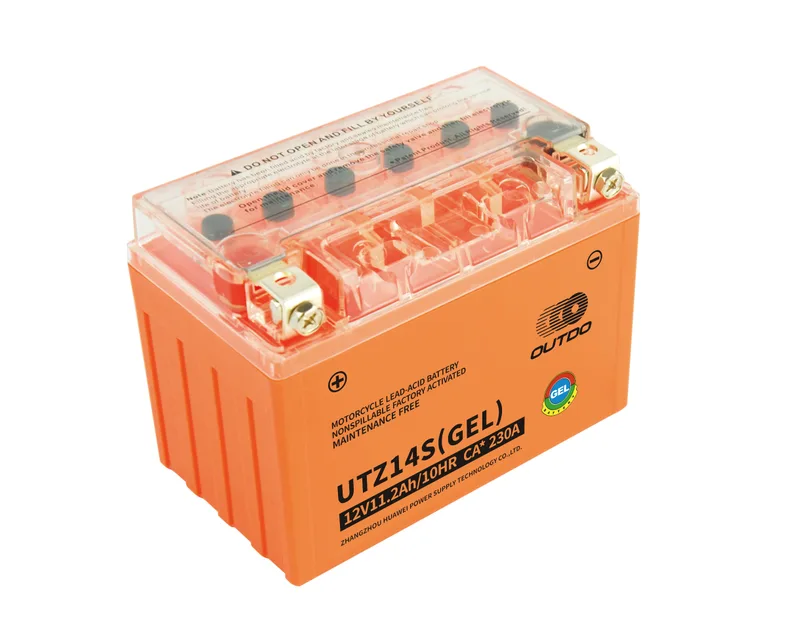

UTZ14S(GEL)
UT Type- Voltage
- 12V
- Capacity
- 11.2Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 150 x 86 x 111 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.52 kg
- Charge Current
- 1.12A
- Meter CCA
- 230A
.webp)

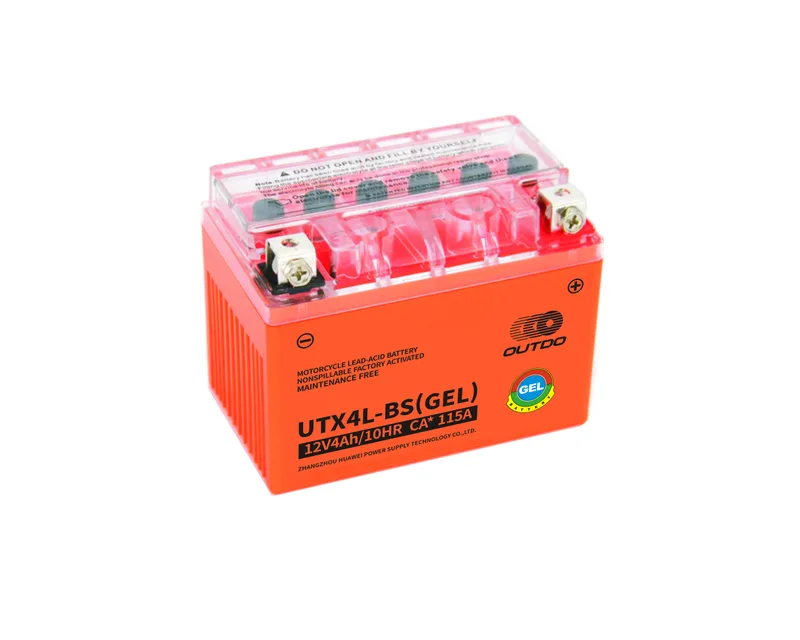

UTX4L-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 4Ah
- CCA (-18°C)
- 45A
- Dimensions (L x W x H)
- 113 x 70 x 85 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.3 kg
- Charge Current
- 0.4A
- Meter CCA
- 115A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 4Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 113 x 70 x 85 mm
- Polarity
- - +
- Weight
- 1.4 kg
- Charge Current
- 0.4A
- Meter CCA
- 120A
- CCA (-18°C)
- 50A
.webp)

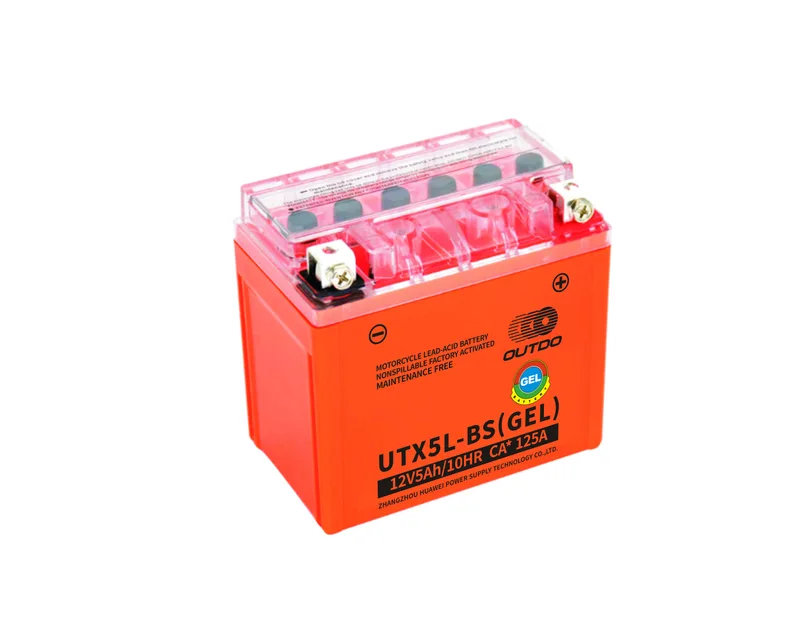

UTX5L-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 55A
- Dimensions (L x W x H)
- 113 x 70 x 107 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.64 kg
- Charge Current
- 0.5A
- Meter CCA
- 125A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 5Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 113 x 70 x 107 mm
- Polarity
- - +
- Weight
- 1.79 kg
- Charge Current
- 0.5A
- Meter CCA
- 130A
- CCA (-18°C)
- 70A
.webp)

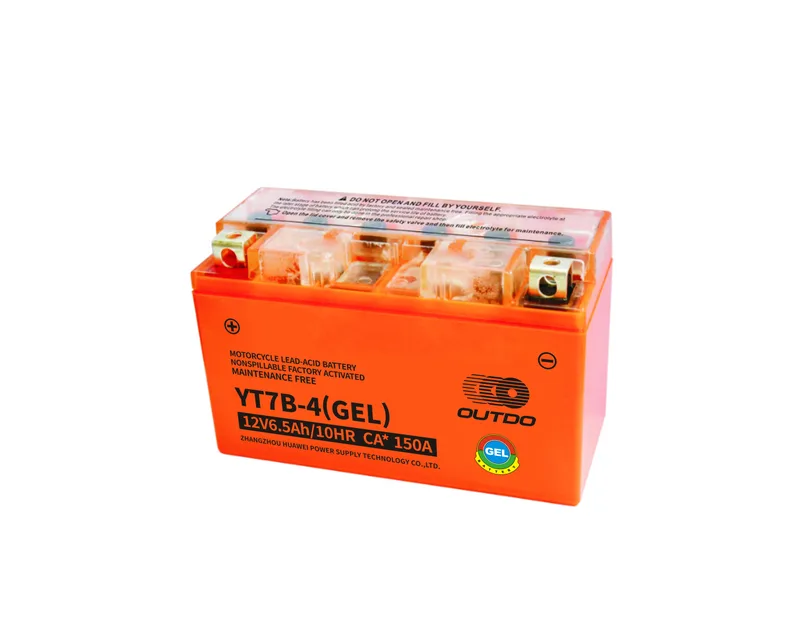

YT7B-4(GEL)
UT Type- Voltage
- 12V
- Capacity
- 6.5Ah
- CCA (-18°C)
- 80A
- Dimensions (L x W x H)
- 150 x 65 x 94 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.15 kg
- Charge Current
- 0.65A
- Meter CCA
- 150A
.webp)

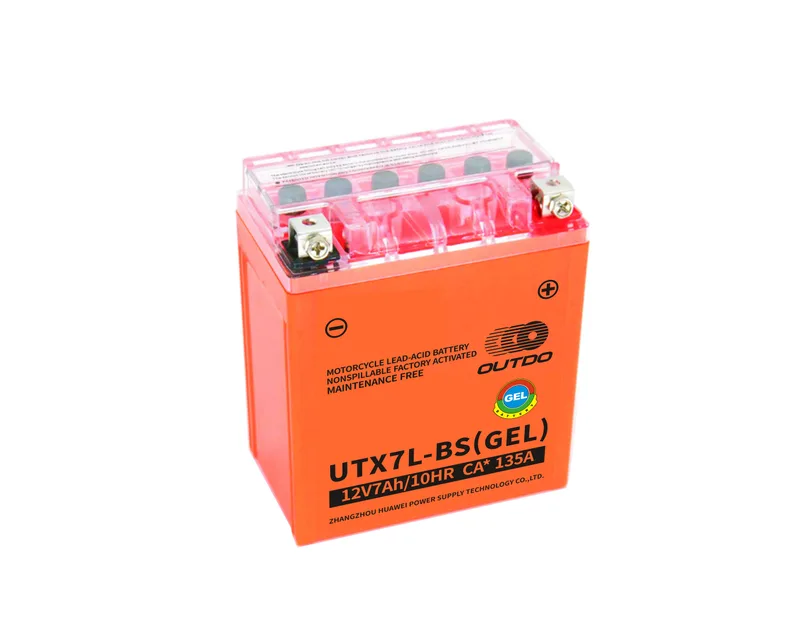

UTX7L-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 75A
- Dimensions (L x W x H)
- 113 x 70 x 130 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.15 kg
- Charge Current
- 0.7A
- Meter CCA
- 135A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 7Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 113 x 70 x 130 mm
- Polarity
- - +
- Weight
- 2.24 kg
- Charge Current
- 0.7A
- Meter CCA
- 140A
- CCA (-18°C)
- 85A
.webp)

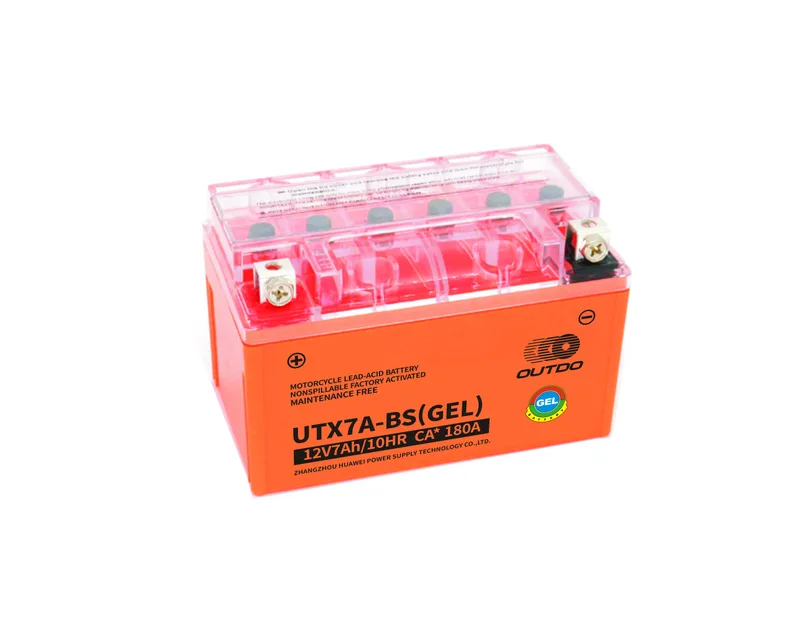

UTX7A-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 7Ah
- CCA (-18°C)
- 90A
- Dimensions (L x W x H)
- 150 x 86 x 94 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.4 kg
- Charge Current
- 0.7A
- Meter CCA
- 180A
.webp)

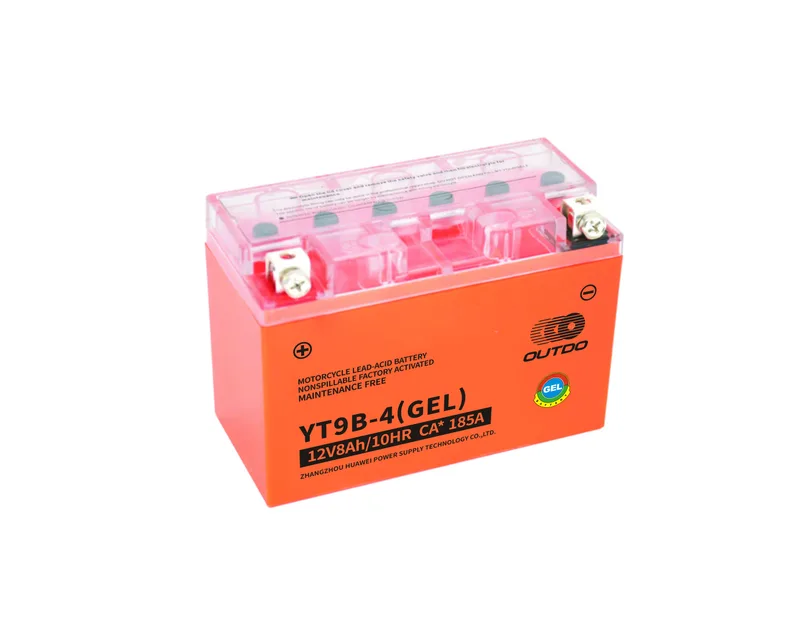

YT9B-4(GEL)
UT Type- Voltage
- 12V
- Capacity
- 8Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 150 x 70 x 105 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.61 kg
- Charge Current
- 0.8A
- Meter CCA
- 185A
.webp)

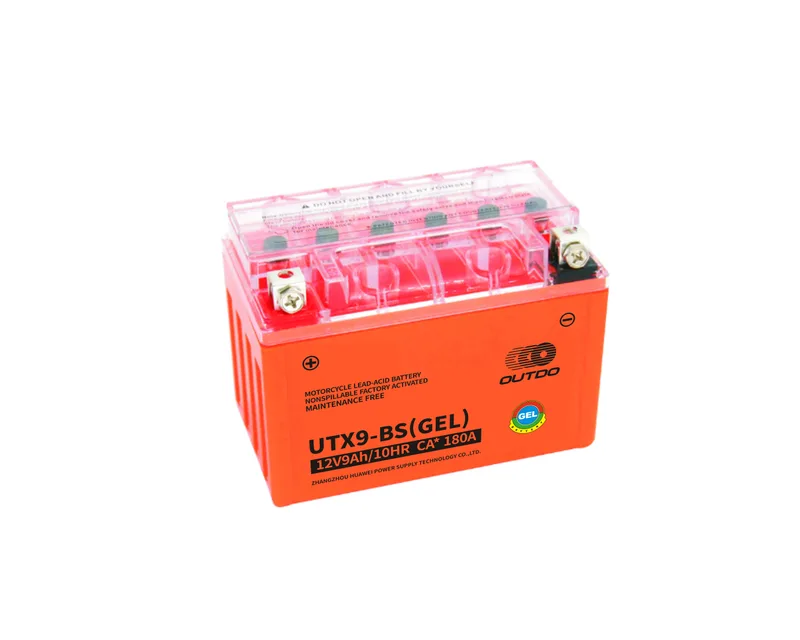

UTX9-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 150 x 86 x 107 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 2.93 kg
- Charge Current
- 0.9A
- Meter CCA
- 180A
YT12A-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 9.5Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 150 x 86 x 107 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.13 kg
- Charge Current
- 0.95A
- Meter CCA
- 200A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 10Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 107 mm
- Polarity
- + -
- Weight
- 3.32 kg
- Charge Current
- 1A
- Meter CCA
- 245A
- CCA (-18°C)
- 135A
YT12B-4(GEL)
UT Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 150 x 70 x 130 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.12 kg
- Charge Current
- 1A
- Meter CCA
- 185A
.webp)

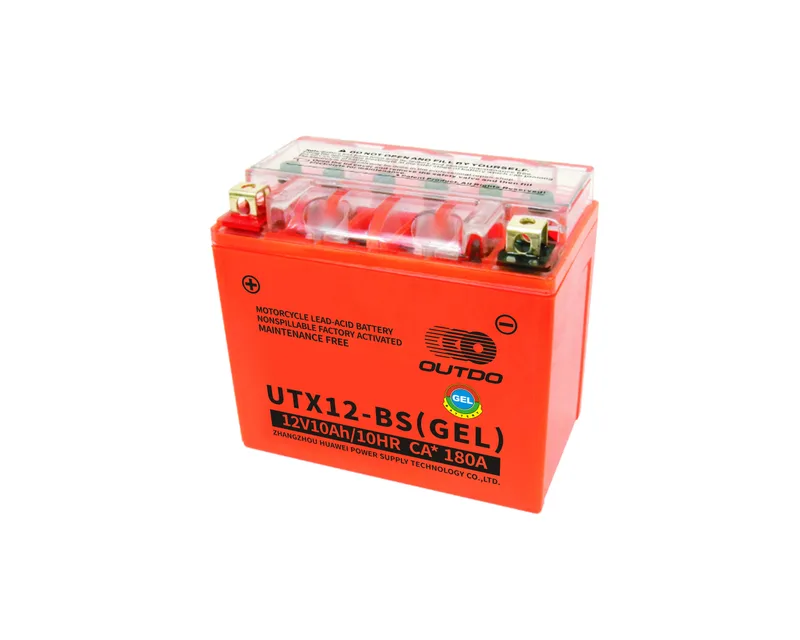

UTX12-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 150 x 86 x 130 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.29 kg
- Charge Current
- 1A
- Meter CCA
- 180A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 12Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 130 mm
- Polarity
- + -
- Weight
- 3.87 kg
- Charge Current
- 1.2A
- Meter CCA
- 210A
- CCA (-18°C)
- 140A
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 12Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 130 mm
- Polarity
- + -
- Weight
- 4.12 kg
- Charge Current
- 1.2A
- Meter CCA
- 240A
- CCA (-18°C)
- 165A
YT14B-4(GEL)
UT Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 115A
- Dimensions (L x W x H)
- 150 x 70 x 145 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.8 kg
- Charge Current
- 1.2A
- Meter CCA
- 185A
.webp)

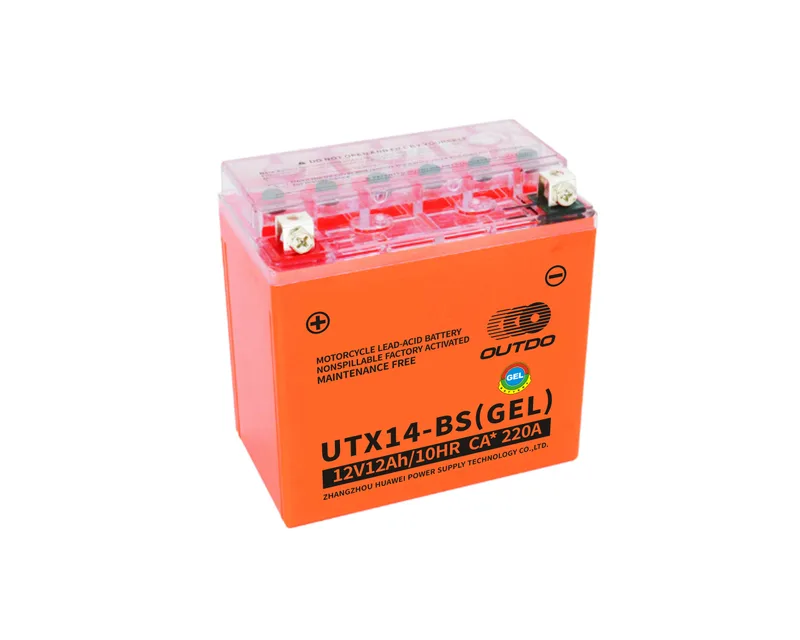

UTX14-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.4 kg
- Charge Current
- 1.2A
- Meter CCA
- 220A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 14Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
- Polarity
- + -
- Weight
- 4.68 kg
- Charge Current
- 1.4A
- Meter CCA
- 240A
- CCA (-18°C)
- 185A
UTX14L-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 150A
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.4 kg
- Charge Current
- 1.2A
- Meter CCA
- 220A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 14Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
- Polarity
- - +
- Weight
- 4.68 kg
- Charge Current
- 1.4A
- Meter CCA
- 240A
- CCA (-18°C)
- 185A
.webp)

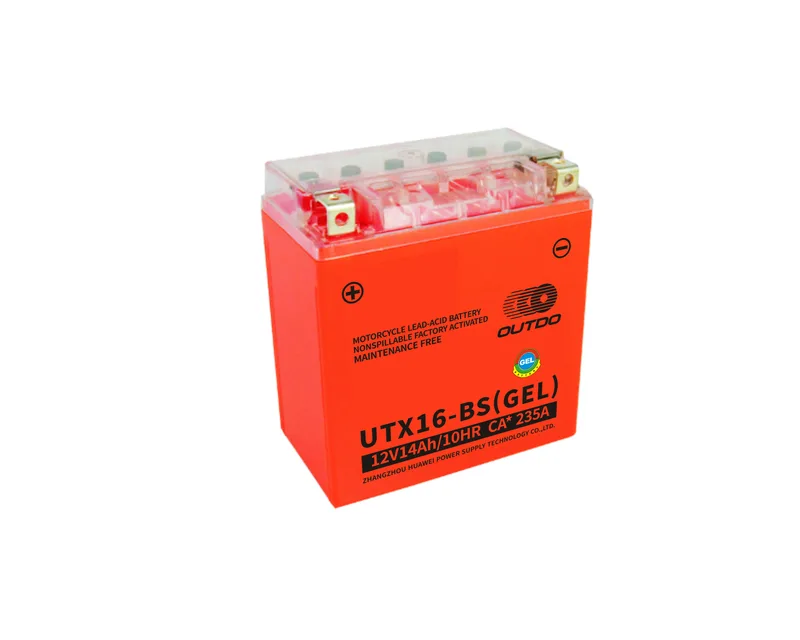

UTX16-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 165A
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 5 kg
- Charge Current
- 1.4A
- Meter CCA
- 235A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 16Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
- Polarity
- + -
- Weight
- 5.3 kg
- Charge Current
- 1.6A
- Meter CCA
- 255A
- CCA (-18°C)
- 200A
UTX16L-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 165A
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5 kg
- Charge Current
- 1.4A
- Meter CCA
- 235A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 16Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
- Polarity
- - +
- Weight
- 5.3 kg
- Charge Current
- 1.6A
- Meter CCA
- 255A
- CCA (-18°C)
- 200A
.webp)
YT20-4(GEL)
UT Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 5.9 kg
- Charge Current
- 1.8A
- Meter CCA
- 290A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 20Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
- Polarity
- + -
- Weight
- 6.2 kg
- Charge Current
- 2A
- Meter CCA
- 330A
- CCA (-18°C)
- 240A
YT20L-4(GEL)
UT Type- Voltage
- 12V
- Capacity
- 18Ah
- CCA (-18°C)
- 200A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5.9 kg
- Charge Current
- 1.8A
- Meter CCA
- 290A
Variants
- Type
- UT Type
- Voltage
- 12V
- Capacity
- 20Ah
- Hour Rate
- 10
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
- Polarity
- - +
- Weight
- 6.2 kg
- Charge Current
- 2A
- Meter CCA
- 330A
- CCA (-18°C)
- 240A
UTX21L-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 21Ah
- CCA (-18°C)
- 220A
- Dimensions (L x W x H)
- 205 x 91 x 159 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.78 kg
- Charge Current
- 2.1A
- Meter CCA
- 310A
UTX24L-BS(GEL)
UT Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 320A
- Dimensions (L x W x H)
- 205 x 91 x 159 mm
More specifications
- Type
- UT Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 7.4 kg
- Charge Current
- 2.4A
- Meter CCA
- 400A
| Model | Type | Voltage (V) | Capacity (Ah) | Hour Rate (HR) | Dimension ±2 (mm) | Polarity | Weight±3% (KG) | Regular Charge Current (A) | Meter CCA (25±5 °C) | CCA (-18 °C) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6N4-BS(GEL) | YB Type | 6 | 4 | 10 | 71*71*93 | + - | 0.81 | 0.4 | N/A | 30 | |
| YB3L-BS(GEL) | YB Type | 12 | 3 | 10 | 98*56*109 | - + | 1.19 | 0.3 | 80 | 35 | |
| YB5L-BS(GEL) | YB Type | 12 | 5 | 10 | 119*60*129 | - + | 1.77 | 0.5 | 115 | 55 | |
| YB5L-BS(GEL) | YB Type | 12 | 5 | 10 | 119*60*129 | - + | 1.86 | 0.5 | 80 | 50 | |
| YB6.5L-BS(GEL) | YB Type | 12 | 6.5 | 10 | 138*65*100 | - + | 1.98 | 0.65 | 155 | 75 | |
| YB6.5L-BS(GEL) | YB Type | 12 | 6.5 | 10 | 138*65*100 | - + | 2.16 | 0.65 | 140 | 75 | |
| YB7B-BS(GEL) | YB Type | 12 | 7 | 10 | 148*60*128 | + - | 2.21 | 0.7 | 140 | 75 | |
| YB7BL-BS(GEL) | YB Type | 12 | 7 | 10 | 148*60*128 | - + | 2.21 | 0.7 | 140 | 75 | |
| YB7-BS(GEL) | YB Type | 12 | 8 | 10 | 137*76*128 | + - | 2.65 | 0.8 | 140 | 85 | |
| YB7L-BS(GEL) | YB Type | 12 | 8 | 10 | 137*76*128 | - + | 2.65 | 0.8 | 140 | 85 | |
| YB9-BS(GEL) | YB Type | 12 | 9 | 10 | 137*76*134 | + - | 2.7 | 0.9 | 140 | 85 | |
| YB9-BS(GEL) | YB Type | 12 | 9 | 10 | 137*76*134 | + - | 2.95 | 0.9 | 180 | 110 | |
| YB10L-BS(GEL) | YB Type | 12 | 10 | 10 | 132*88*145 | - + | 3.45 | 1 | 230 | 120 | |
| YB12A-BS(GEL) | YB Type | 12 | 12 | 10 | 134*78*156 | + - | 3.63 | 1.2 | 240 | 140 | |
| YB16L-BS(GEL) | YB Type | 12 | 19 | 10 | 173*100*152 | - + | 6.15 | 1.9 | 390 | 240 | |
| YB16CL-BS(GEL) | YB Type | 12 | 19 | 10 | 173*100*175 | - + | 6.25 | 1.9 | 320 | 240 | |
| YB30L-BS(GEL) | YB Type | 12 | 30 | 10 | 166*127*175 | - + | 8.5 | 3 | 290 | 230 | |
| YB32L-BS(GEL) | YB Type | 12 | 32 | 10 | 166*127*175 | - + | 9.1 | 3.2 | 390 | 340 | |
| UTZ5S(GEL) | UT Type | 12 | 4 | 10 | 113*70*87 | - + | 1.3 | 0.4 | 115 | 45 | |
| UTZ5S(GEL) | UT Type | 12 | 4 | 10 | 113*70*87 | - + | 1.4 | 0.4 | 120 | 50 | |
| UTZ6V(GEL) | UT Type | 12 | 6 | 10 | 113*70*105 | - + | 2.02 | 0.6 | 150 | 85 | |
| UTZ7S(GEL) | UT Type | 12 | 6 | 10 | 113*70*105 | - + | 2.02 | 0.6 | 150 | 85 | |
| UTZ10S(GEL) | UT Type | 12 | 8.6 | 10 | 150*86*94 | + - | 2.85 | 0.86 | 220 | 120 | |
| UTZ12S(GEL) | UT Type | 12 | 11.2 | 10 | 150*86*111 | + - | 3.36 | 1.12 | 200 | 130 | |
| UTZ14S(GEL) | UT Type | 12 | 11.2 | 10 | 150*86*111 | + - | 3.52 | 1.12 | 230 | 150 | |
| UTX4L-BS(GEL) | UT Type | 12 | 4 | 10 | 113*70*85 | - + | 1.3 | 0.4 | 115 | 45 | |
| UTX4L-BS(GEL) | UT Type | 12 | 4 | 10 | 113*70*85 | - + | 1.4 | 0.4 | 120 | 50 | |
| UTX5L-BS(GEL) | UT Type | 12 | 5 | 10 | 113*70*107 | - + | 1.64 | 0.5 | 125 | 55 | |
| UTX5L-BS(GEL) | UT Type | 12 | 5 | 10 | 113*70*107 | - + | 1.79 | 0.5 | 130 | 70 | |
| YT7B-4(GEL) | UT Type | 12 | 6.5 | 10 | 150*65*94 | + - | 2.15 | 0.65 | 150 | 80 | |
| UTX7L-BS(GEL) | UT Type | 12 | 7 | 10 | 113*70*130 | - + | 2.15 | 0.7 | 135 | 75 | |
| UTX7L-BS(GEL) | UT Type | 12 | 7 | 10 | 113*70*130 | - + | 2.24 | 0.7 | 140 | 85 | |
| UTX7A-BS(GEL) | UT Type | 12 | 7 | 10 | 150*86*94 | + - | 2.4 | 0.7 | 180 | 90 | |
| YT9B-4(GEL) | UT Type | 12 | 8 | 10 | 150*70*105 | + - | 2.61 | 0.8 | 185 | 100 | |
| UTX9-BS(GEL) | UT Type | 12 | 9 | 10 | 150*86*107 | + - | 2.93 | 0.9 | 180 | 120 | |
| YT12A-BS(GEL) | UT Type | 12 | 9.5 | 10 | 150*86*107 | + - | 3.13 | 0.95 | 200 | 120 | |
| YT12A-BS(GEL) | UT Type | 12 | 10 | 10 | 150*86*107 | + - | 3.32 | 1 | 245 | 135 | |
| YT12B-4(GEL) | UT Type | 12 | 10 | 10 | 150*70*130 | + - | 3.12 | 1 | 185 | 100 | |
| UTX12-BS(GEL) | UT Type | 12 | 10 | 10 | 150*86*130 | + - | 3.29 | 1 | 180 | 100 | |
| UTX12-BS(GEL) | UT Type | 12 | 12 | 10 | 150*86*130 | + - | 3.87 | 1.2 | 210 | 140 | |
| UTX12-BS(GEL) | UT Type | 12 | 12 | 10 | 150*86*130 | + - | 4.12 | 1.2 | 240 | 165 | |
| YT14B-4(GEL) | UT Type | 12 | 12 | 10 | 150*70*145 | + - | 3.8 | 1.2 | 185 | 115 | |
| UTX14-BS(GEL) | UT Type | 12 | 12 | 10 | 150*86*145 | + - | 4.4 | 1.2 | 220 | 150 | |
| UTX14L-BS(GEL) | UT Type | 12 | 12 | 10 | 150*86*145 | - + | 4.4 | 1.2 | 220 | 150 | |
| UTX14-BS(GEL) | UT Type | 12 | 14 | 10 | 150*86*145 | + - | 4.68 | 1.4 | 240 | 185 | |
| UTX14L-BS(GEL) | UT Type | 12 | 14 | 10 | 150*86*145 | - + | 4.68 | 1.4 | 240 | 185 | |
| UTX16-BS(GEL) | UT Type | 12 | 14 | 10 | 150*86*161 | + - | 5 | 1.4 | 235 | 165 | |
| UTX16L-BS(GEL) | UT Type | 12 | 14 | 10 | 150*86*161 | - + | 5 | 1.4 | 235 | 165 | |
| UTX16-BS(GEL) | UT Type | 12 | 16 | 10 | 150*86*161 | + - | 5.3 | 1.6 | 255 | 200 | |
| UTX16L-BS(GEL) | UT Type | 12 | 16 | 10 | 150*86*161 | - + | 5.3 | 1.6 | 255 | 200 | |
| YT20-4(GEL) | UT Type | 12 | 18 | 10 | 177*88*155 | + - | 5.9 | 1.8 | 290 | 200 | |
| YT20L-4(GEL) | UT Type | 12 | 18 | 10 | 177*88*155 | - + | 5.9 | 1.8 | 290 | 200 | |
| YT20-4(GEL) | UT Type | 12 | 20 | 10 | 177*88*155 | + - | 6.2 | 2 | 330 | 240 | |
| YT20L-4(GEL) | UT Type | 12 | 20 | 10 | 177*88*155 | - + | 6.2 | 2 | 330 | 240 | |
| UTX21L-BS(GEL) | UT Type | 12 | 21 | 10 | 205*91*159 | - + | 6.78 | 2.1 | 310 | 220 | |
| UTX24L-BS(GEL) | UT Type | 12 | 24 | 10 | 205*91*159 | - + | 7.4 | 2.4 | 400 | 320 |
