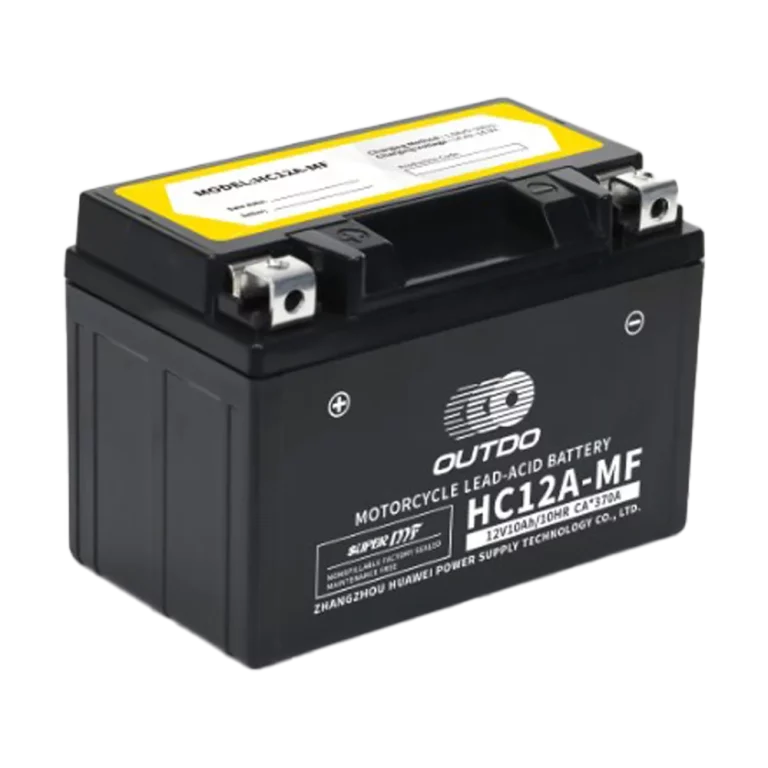

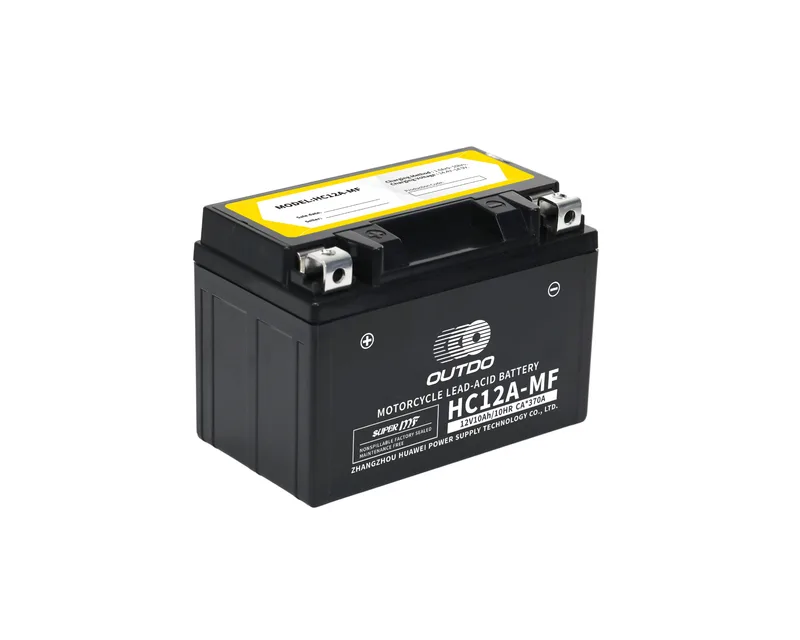

HC12A-MF
- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 150 x 86 x 104 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.65 kg
- Terminal
- Z4
- Charge Current
- 1A
- Meter CCA
- 370A
High Performance Factory Activated
Motorcycle Battery
High Performance Valve Regulated Factory Activated Lead Acid Battery is suitable for motorcycle starting and all kinds of electrical equipment requiring batteries to provide large current instantaneously in a variety of ambient temperatures, especially in the extremely low temperature.
Key Features of Our High Performance Factory Activated Battery
Cold-Weather Starting Power
Keeps a high CCA value and strong high-current discharge in the cold, holding starting performance down to -40°C.
New Low-Resistance Structure
A completely new structural design minimizes internal resistance and maximizes the plate's electrochemical reaction area.
Advanced Active Material
Special organic additives slow negative-plate passivation and increase the effective surface area of the active material.
Multi-Alloy Grids
Grids made of multiple lead alloys improve corrosion resistance and extend battery life.
Strong Low-Temperature Capacity
Higher output capacity, charging capacity, and charging efficiency at low temperatures.
Long Cycle Life
Long cycle life under high-rate discharge and low depth of discharge.
Factory Activated Safe Use Precautions
I. Warning
- The electrolyte inside the battery is corrosive and may damage metal, cotton products, and stone. Handle the battery properly.
- Do NOT place the battery on its side or upside down to prevent acid leakage.
- Hydrogen gas may be generated during battery operation and charging. If exposed to fire or sparks, it may cause an explosion. Please observe the following precautions:
- Use and maintain the battery in a well-ventilated area.
- Keep sparks and open flames away during battery maintenance.
- If the battery is charged outside the vehicle, do not install it immediately after charging. Let it rest for at least 10 minutes to allow hydrogen gas to dissipate.
- After riding, do not remove the battery immediately. Let it rest for at least 10 minutes.
- During charging, the ambient temperature should not exceed 45°C. If it does, cool the battery with water or reduce the charging current and voltage.
- Do NOT place metal tools or conductive materials near the terminals to avoid short-circuiting.
- Do NOT strike the terminals with a hammer during battery installation.
- Handle the battery carefully during transportation to avoid impact or damage.
II. Factory Activated Installation and Maintenance
- Connect the positive terminal first. Do NOT reverse the polarity, otherwise the motorcycle's electrical equipment may be damaged.
- Activation Notice:
- Some batteries may not be activated immediately due to differences in vehicle performance. Start the engine several times or gently apply the throttle to help activate the battery more easily.
- Manual activation is recommended to ensure the exact activation date is recorded.
- During acid filling, wear acid-resistant clothing, rubber boots, safety goggles, and rubber gloves. If acid splashes onto skin or clothing, rinse immediately with a large amount of water. Seek medical attention if necessary.
- Do NOT over-discharge the battery. Recharge the battery promptly after it has been discharged.
- Disconnect the negative terminal if the motorcycle will not be used for a long period.
- Do NOT check whether the battery has power by short-circuiting the terminals.
- Regularly check the terminal connections and ensure the terminals are clean to maintain good contact.
- Store the battery in a dry, well-ventilated place at 5-25°C, away from direct sunlight. Keep the battery at least 2 meters away from heat sources. Check and maintain the battery regularly.
Every model in this series. Filter by voltage or type, or search a model number.
Showing 22 of 22 models

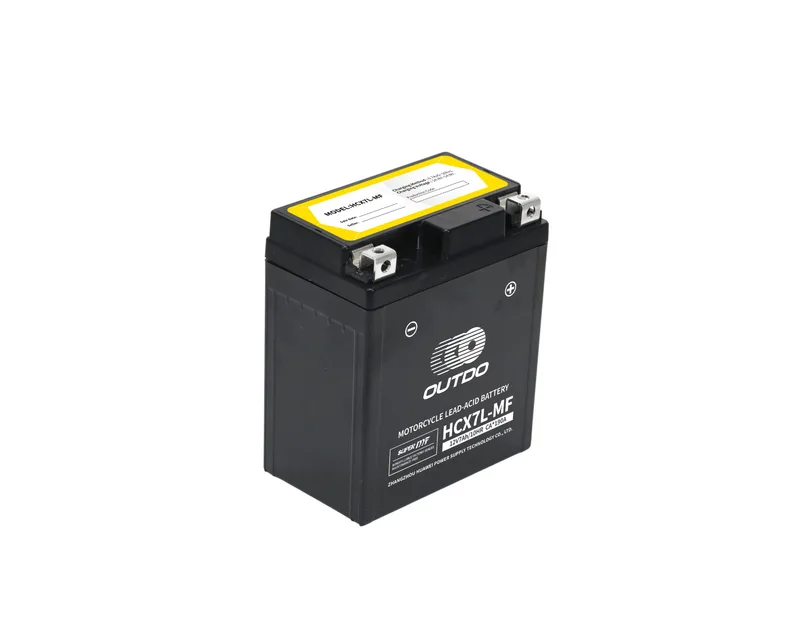

HCX7L-MF
- Voltage
- 12V
- Capacity
- 7.5Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 113 x 70 x 130 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.65 kg
- Terminal
- Z3
- Charge Current
- 0.75A
- Meter CCA
- 190A

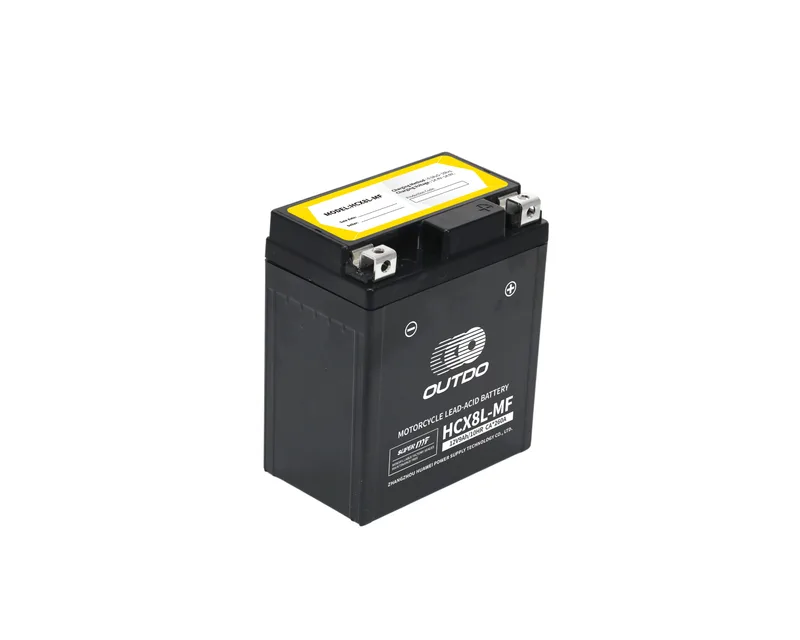

HCX8L-MF
- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 140A
- Dimensions (L x W x H)
- 113 x 70 x 130 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.87 kg
- Terminal
- Z3
- Charge Current
- 0.9A
- Meter CCA
- 260A

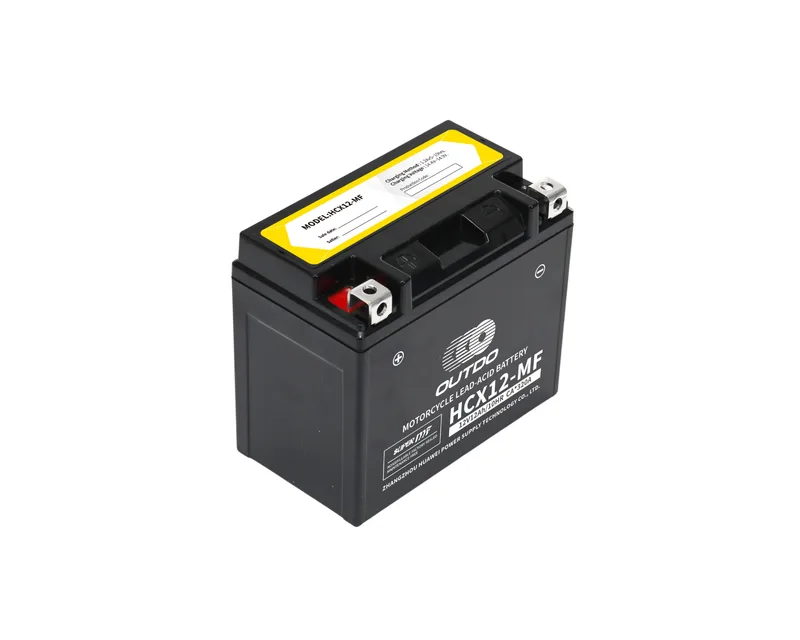

HCX12-MF
- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 150 x 86 x 130 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.15 kg
- Terminal
- C12
- Charge Current
- 1.2A
- Meter CCA
- 320A

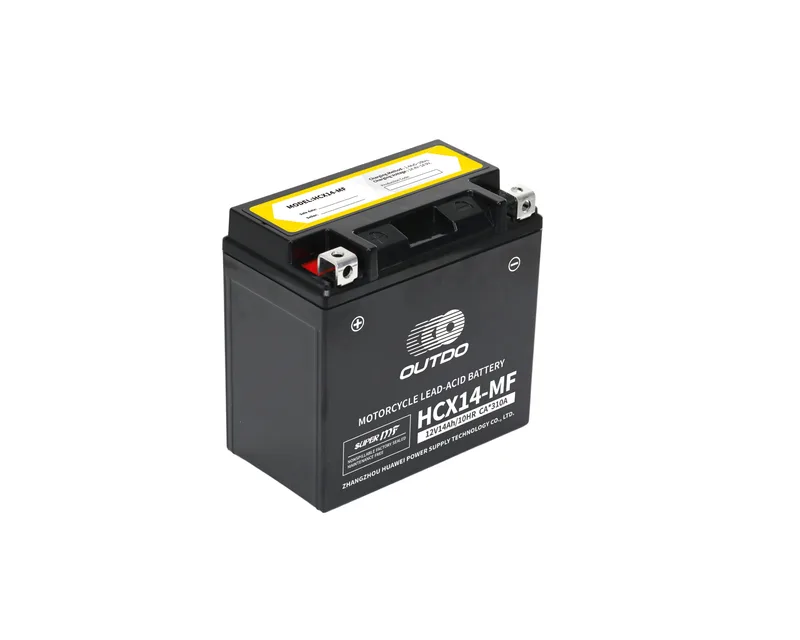

HCX14-MF
- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.78 kg
- Terminal
- C12
- Charge Current
- 1.4A
- Meter CCA
- 310A

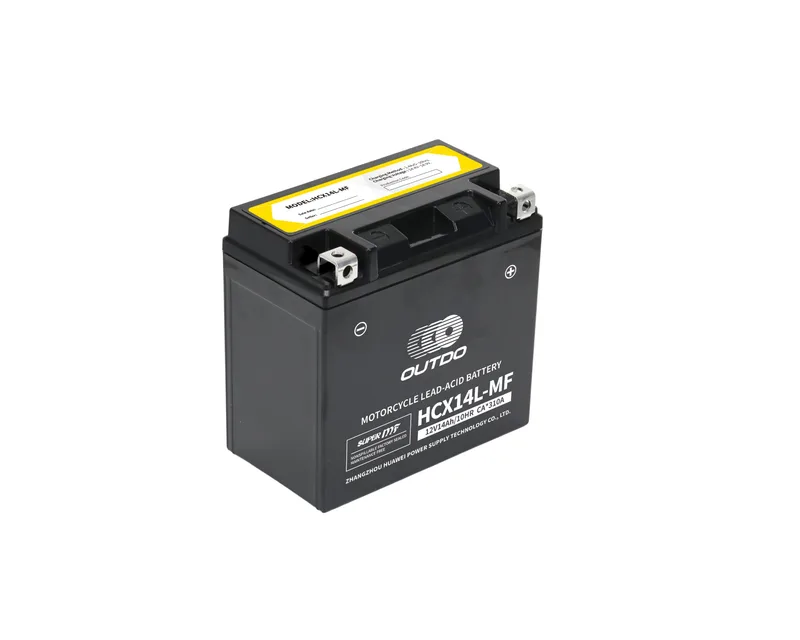

HCX14L-MF
- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.78 kg
- Terminal
- C12
- Charge Current
- 1.4A
- Meter CCA
- 310A

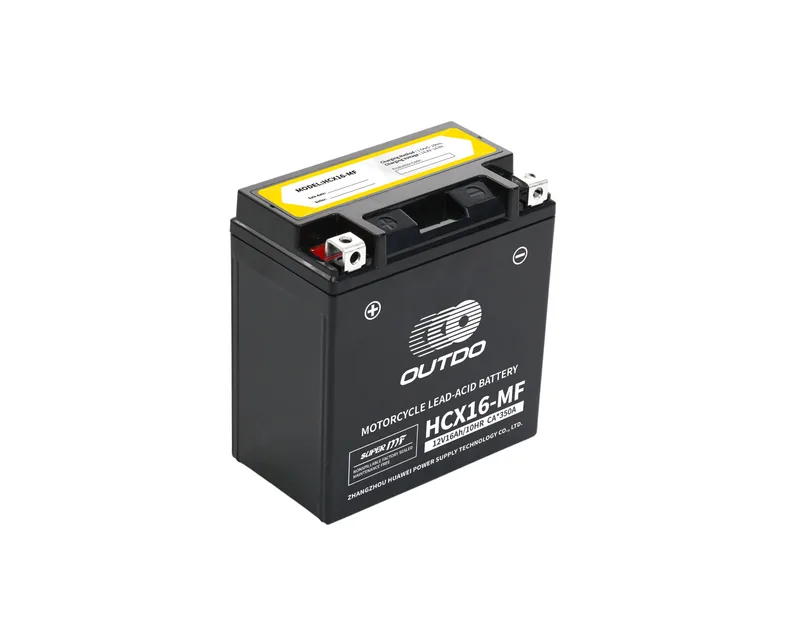

HCX16-MF
- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 240A
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 5.45 kg
- Terminal
- C12
- Charge Current
- 1.6A
- Meter CCA
- 350A
HCX16L-MF
- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 240A
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5.45 kg
- Terminal
- C12
- Charge Current
- 1.6A
- Meter CCA
- 350A

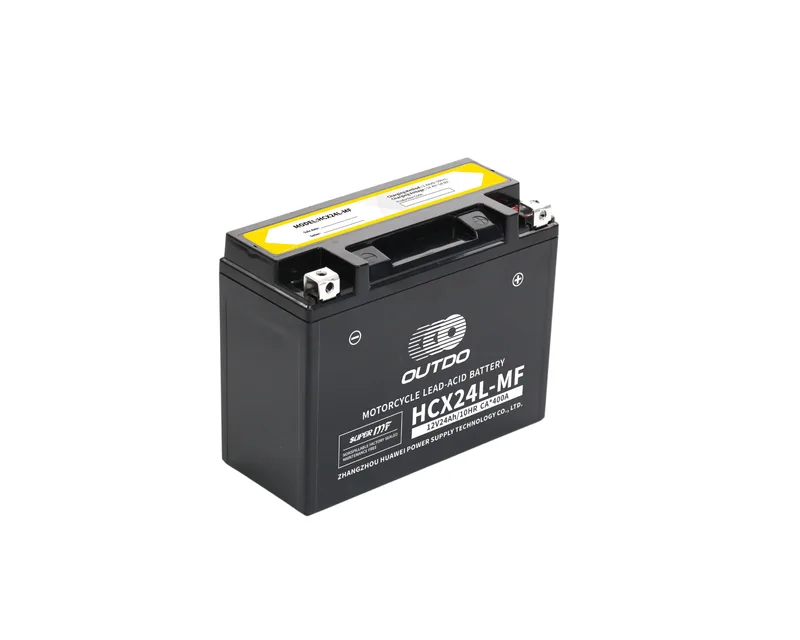

HCX24L-MF
- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 350A
- Dimensions (L x W x H)
- 205 x 91 x 161 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 7.42 kg
- Terminal
- C13
- Charge Current
- 2.4A
- Meter CCA
- 400A

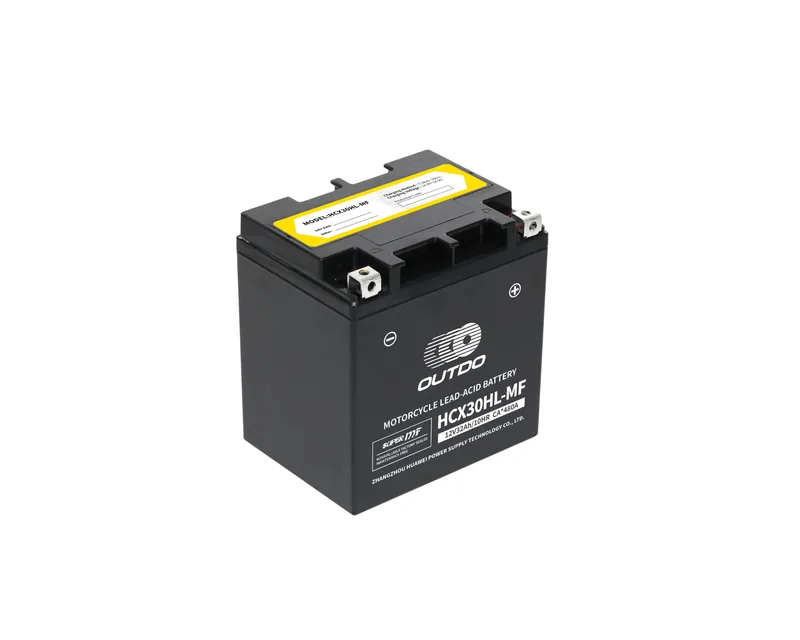

HCX30HL-MF
- Voltage
- 12V
- Capacity
- 32Ah
- CCA (-18°C)
- 400A
- Dimensions (L x W x H)
- 166 x 127 x 175 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 9.52 kg
- Terminal
- C13
- Charge Current
- 3.2A
- Meter CCA
- 480A
HCX30L-MF
- Voltage
- 12V
- Capacity
- 30Ah
- CCA (-18°C)
- 350A
- Dimensions (L x W x H)
- 166 x 127 x 175 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 9.1 kg
- Terminal
- C13
- Charge Current
- 3A
- Meter CCA
- 440A
HCZ5D-MF
- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 65A
- Dimensions (L x W x H)
- 113 x 70 x 85 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.64 kg
- Terminal
- Z3
- Charge Current
- 0.5A
- Meter CCA
- 160A
HCZ5S-MF
- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 80A
- Dimensions (L x W x H)
- 113 x 70 x 85 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.69 kg
- Terminal
- Z3
- Charge Current
- 0.5A
- Meter CCA
- 190A

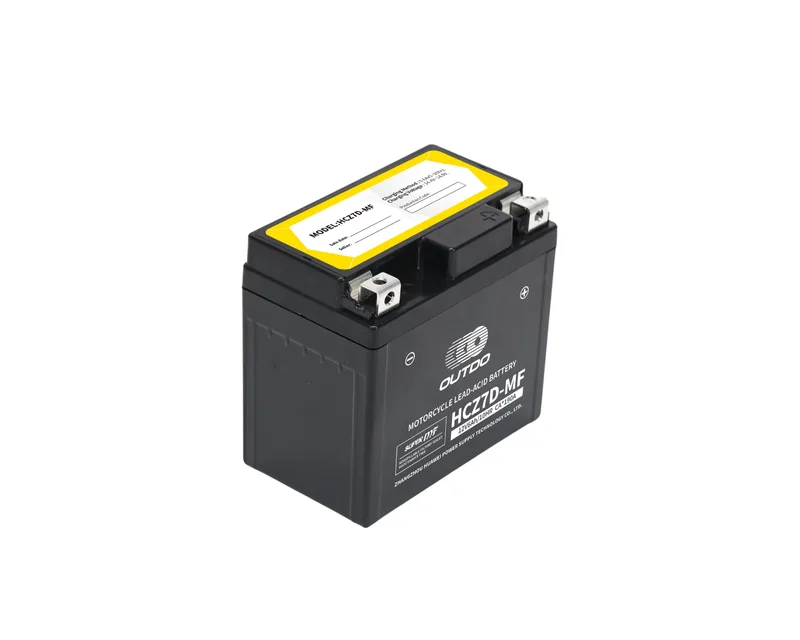

HCZ7D-MF
- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 113 x 70 x 105 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.16 kg
- Terminal
- Z3
- Charge Current
- 0.6A
- Meter CCA
- 190A
HCZ7S-MF
- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 110A
- Dimensions (L x W x H)
- 113 x 70 x 105 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.2 kg
- Terminal
- Z3
- Charge Current
- 0.6A
- Meter CCA
- 220A

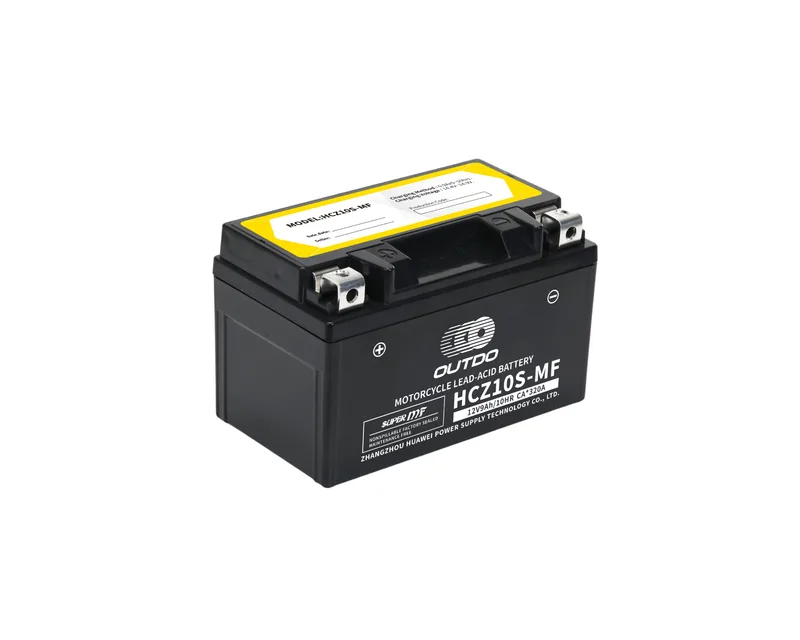

HCZ10S-MF
- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 170A
- Dimensions (L x W x H)
- 150 x 86 x 93 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.14 kg
- Terminal
- Z4
- Charge Current
- 0.9A
- Meter CCA
- 320A

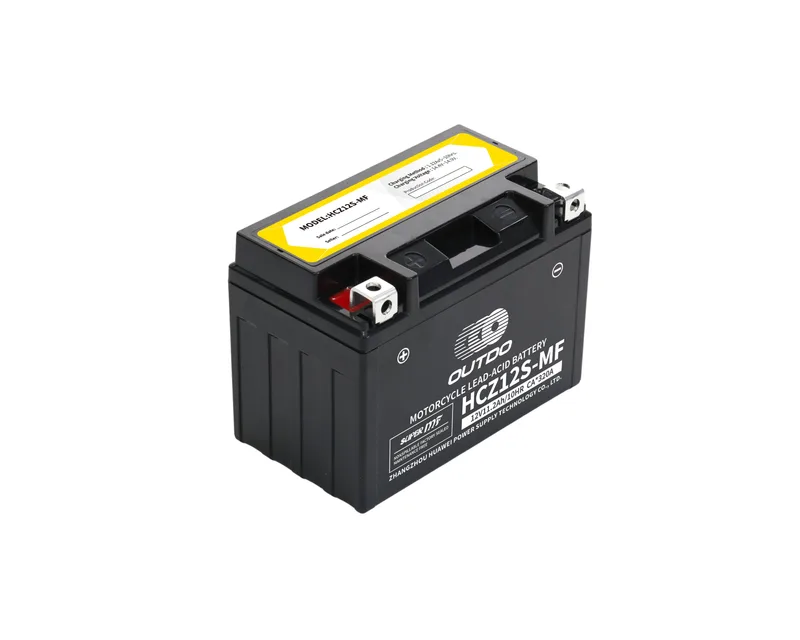

HCZ12S-MF
- Voltage
- 12V
- Capacity
- 11.2Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 150 x 86 x 110 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.63 kg
- Terminal
- C12
- Charge Current
- 1.12A
- Meter CCA
- 320A

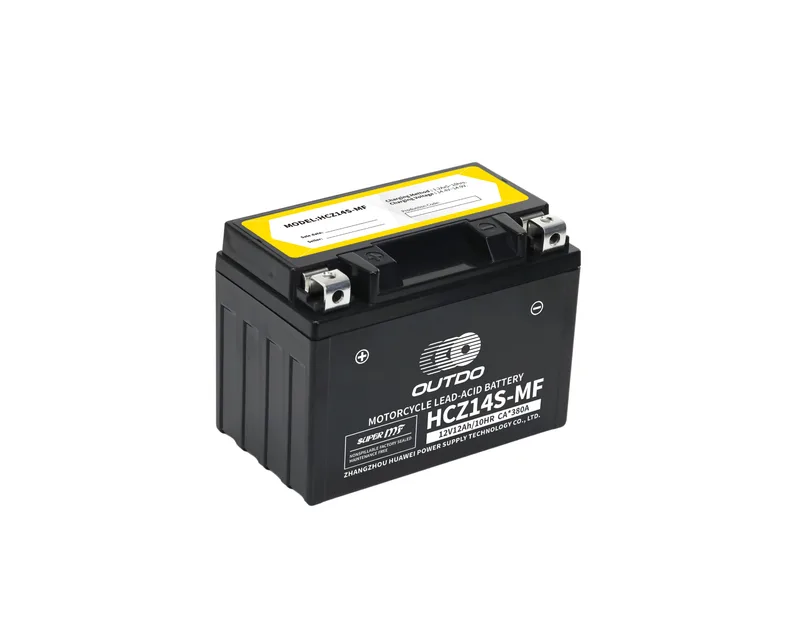

HCZ14S-MF
- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 150 x 86 x 110 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.9 kg
- Terminal
- Z4
- Charge Current
- 1.2A
- Meter CCA
- 380A

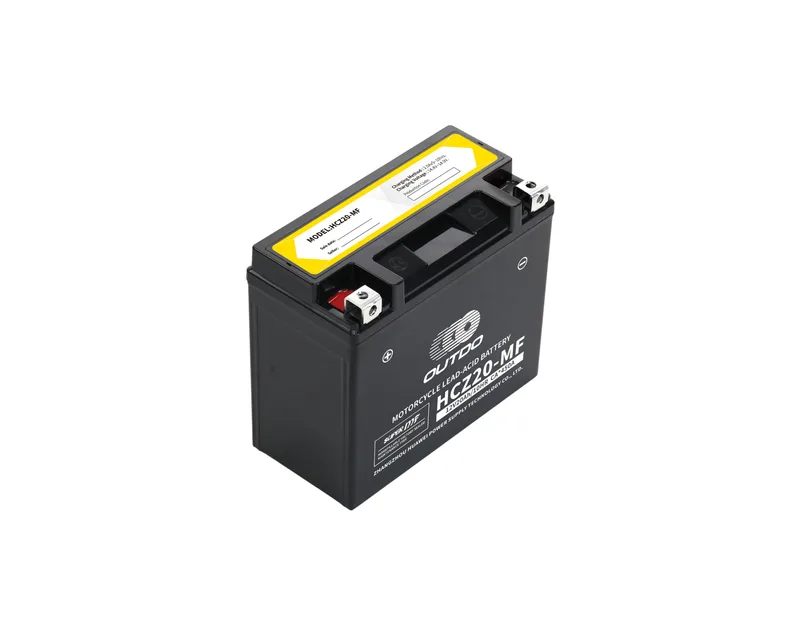

HCZ20-MF
- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 270A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 6.2 kg
- Terminal
- C13
- Charge Current
- 2A
- Meter CCA
- 450A
HCZ20H-MF
- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 310A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 6.46 kg
- Terminal
- C13
- Charge Current
- 2A
- Meter CCA
- 490A

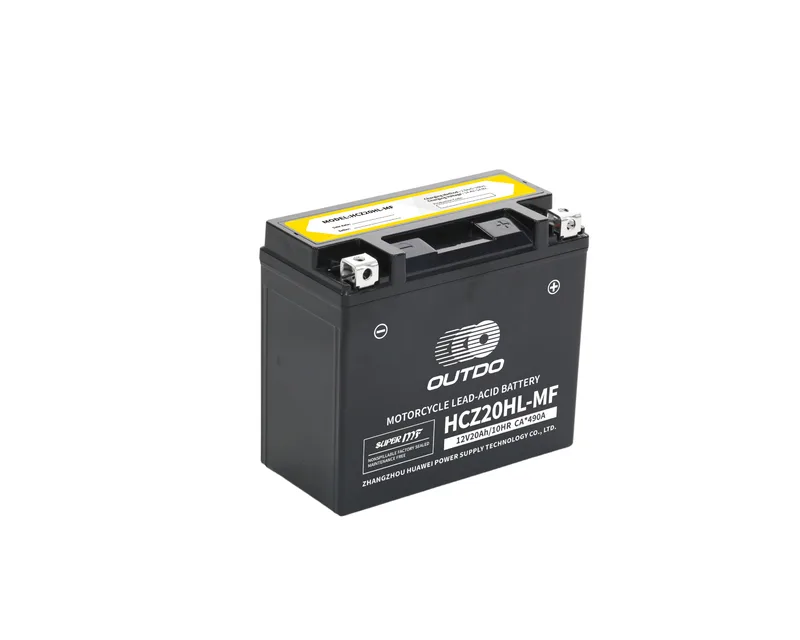

HCZ20HL-MF
- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 310A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.46 kg
- Terminal
- C13
- Charge Current
- 2A
- Meter CCA
- 490A

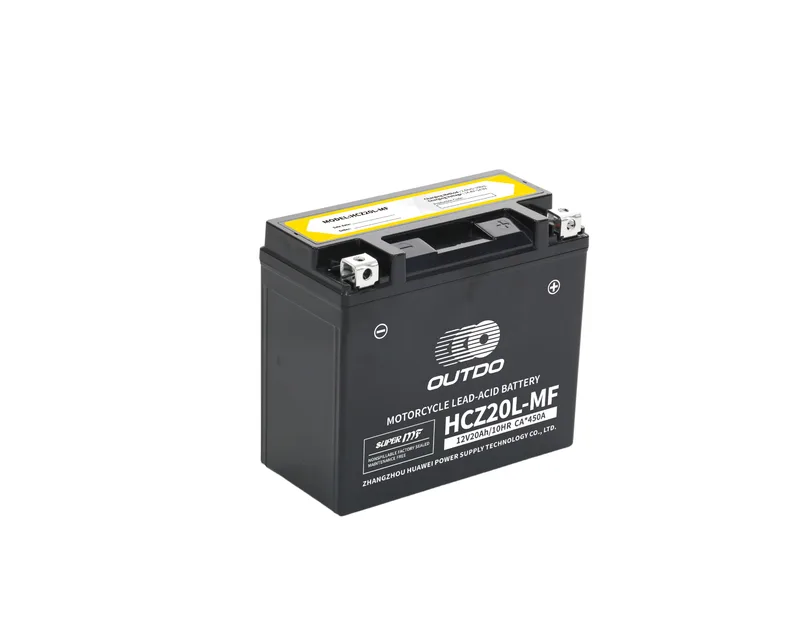

HCZ20L-MF
- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 270A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.2 kg
- Terminal
- C13
- Charge Current
- 2A
- Meter CCA
- 450A
| Model | Series | Voltage (V) | Capacity (Ah) | Hour Rate (HR) | Dimensions±2 (mm) | Polarity | Weight±3% (KG) | Terminal | Regular Charge Current (A) | Meter CCA (25±5°C) | CCA (-18°C) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HC12A-MF | Factory Activated | 12 | 10 | 10 | 150*86*104 | + - | 3.65 | Z4 | 1 | 370 | 190 | |
| HCX7L-MF | Factory Activated | 12 | 7.5 | 10 | 113*70*130 | - + | 2.65 | Z3 | 0.75 | 190 | 120 | |
| HCX8L-MF | Factory Activated | 12 | 9 | 10 | 113*70*130 | - + | 2.87 | Z3 | 0.9 | 260 | 140 | |
| HCX12-MF | Factory Activated | 12 | 12 | 10 | 150*86*130 | + - | 4.15 | C12 | 1.2 | 320 | 190 | |
| HCX14-MF | Factory Activated | 12 | 14 | 10 | 150*86*145 | + - | 4.78 | C12 | 1.4 | 310 | 210 | |
| HCX14L-MF | Factory Activated | 12 | 14 | 10 | 150*86*145 | - + | 4.78 | C12 | 1.4 | 310 | 210 | |
| HCX16-MF | Factory Activated | 12 | 16 | 10 | 150*86*161 | + - | 5.45 | C12 | 1.6 | 350 | 240 | |
| HCX16L-MF | Factory Activated | 12 | 16 | 10 | 150*86*161 | - + | 5.45 | C12 | 1.6 | 350 | 240 | |
| HCX24L-MF | Factory Activated | 12 | 24 | 10 | 205*91*161 | - + | 7.42 | C13 | 2.4 | 400 | 350 | |
| HCX30HL-MF | Factory Activated | 12 | 32 | 10 | 166*127*175 | - + | 9.52 | C13 | 3.2 | 480 | 400 | |
| HCX30L-MF | Factory Activated | 12 | 30 | 10 | 166*127*175 | - + | 9.1 | C13 | 3 | 440 | 350 | |
| HCZ5D-MF | Factory Activated | 12 | 5 | 10 | 113*70*85 | - + | 1.64 | Z3 | 0.5 | 160 | 65 | |
| HCZ5S-MF | Factory Activated | 12 | 5 | 10 | 113*70*85 | - + | 1.69 | Z3 | 0.5 | 190 | 80 | |
| HCZ7D-MF | Factory Activated | 12 | 6 | 10 | 113*70*105 | - + | 2.16 | Z3 | 0.6 | 190 | 100 | |
| HCZ7S-MF | Factory Activated | 12 | 6 | 10 | 113*70*105 | - + | 2.2 | Z3 | 0.6 | 220 | 110 | |
| HCZ10S-MF | Factory Activated | 12 | 9 | 10 | 150*86*93 | + - | 3.14 | Z4 | 0.9 | 320 | 170 | |
| HCZ12S-MF | Factory Activated | 12 | 11.2 | 10 | 150*86*110 | + - | 3.63 | C12 | 1.12 | 320 | 190 | |
| HCZ14S-MF | Factory Activated | 12 | 12 | 10 | 150*86*110 | + - | 3.9 | Z4 | 1.2 | 380 | 210 | |
| HCZ20-MF | Factory Activated | 12 | 20 | 10 | 177*88*155 | + - | 6.2 | C13 | 2 | 450 | 270 | |
| HCZ20H-MF | Factory Activated | 12 | 20 | 10 | 177*88*155 | + - | 6.46 | C13 | 2 | 490 | 310 | |
| HCZ20HL-MF | Factory Activated | 12 | 20 | 10 | 177*88*155 | - + | 6.46 | C13 | 2 | 490 | 310 | |
| HCZ20L-MF | Factory Activated | 12 | 20 | 10 | 177*88*155 | - + | 6.2 | C13 | 2 | 450 | 270 |
