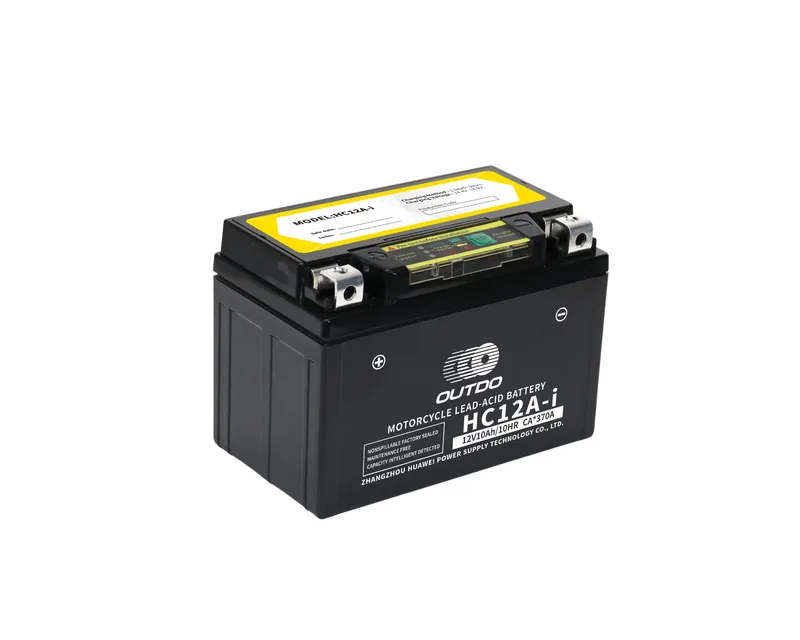

HC12A-i
- Voltage
- 12V
- Capacity
- 10Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 150 x 86 x 104 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.65 kg
- Terminal
- Z4
- Charge Current
- 1A
- Meter CCA
- 370A
High Performance iGEL
Motorcycle Battery
A smart motorcycle battery with a built-in microchip for accurate capacity testing and intelligent monitoring. Simply press the "Test" button to check battery performance, with color-coded LED indicators providing clear guidance for proper battery use.
Key Features of Our High Performance iGEL Battery
Reliable Quality & Performance
Every motorcycle battery undergoes 100% pre-delivery quality inspection to ensure stable, reliable, and consistent performance.
Long Service Life
Advanced lead-calcium multi-alloy and active material formulation provide excellent durability, performance, and extended battery life.
Maintenance-Free Design
Fully sealed and maintenance-free lead-acid battery with low self-discharge and reliable sealing technology for safe, hassle-free operation.
High Current Discharge Performance
Low internal resistance enables strong starting power and reliable high-current discharge for motorcycle applications.
Excellent Temperature Resistance
Designed for reliable performance across a wide operating temperature range of -30°C to 55°C.
Long Design Life
Provides a design service life of more than 3 years at 25°C, supporting long-term motorcycle battery reliability.
International Standards Compliance
Battery performance complies with EN 50342-7, SAE J537, IEC 60095-7, JIS D5302, and GB/T 23638 standards.
Factory Activated Safe Use Precautions
I. Warning
- The electrolyte inside the battery is corrosive and may damage metal, cotton products, and stone. Handle the battery properly.
- Do NOT place the battery on its side or upside down to prevent acid leakage.
- Hydrogen gas may be generated during battery operation and charging. If exposed to fire or sparks, it may cause an explosion. Please observe the following precautions:
- Use and maintain the battery in a well-ventilated area.
- Keep sparks and open flames away during battery maintenance.
- If the battery is charged outside the vehicle, do not install it immediately after charging. Let it rest for at least 10 minutes to allow hydrogen gas to dissipate.
- After riding, do not remove the battery immediately. Let it rest for at least 10 minutes.
- During charging, the ambient temperature should not exceed 45°C. If it does, cool the battery with water or reduce the charging current and voltage.
- Do NOT place metal tools or conductive materials near the terminals to avoid short-circuiting.
- Do NOT strike the terminals with a hammer during battery installation.
- Handle the battery carefully during transportation to avoid impact or damage.
II. Factory Activated Installation and Maintenance
- Connect the positive terminal first. Do NOT reverse the polarity, otherwise the motorcycle's electrical equipment may be damaged.
- Activation Notice:
- Some batteries may not be activated immediately due to differences in vehicle performance. Start the engine several times or gently apply the throttle to help activate the battery more easily.
- Manual activation is recommended to ensure the exact activation date is recorded.
- During acid filling, wear acid-resistant clothing, rubber boots, safety goggles, and rubber gloves. If acid splashes onto skin or clothing, rinse immediately with a large amount of water. Seek medical attention if necessary.
- Do NOT over-discharge the battery. Recharge the battery promptly after it has been discharged.
- Disconnect the negative terminal if the motorcycle will not be used for a long period.
- Do NOT check whether the battery has power by short-circuiting the terminals.
- Regularly check the terminal connections and ensure the terminals are clean to maintain good contact.
- Store the battery in a dry, well-ventilated place at 5-25°C, away from direct sunlight. Keep the battery at least 2 meters away from heat sources. Check and maintain the battery regularly.
Every model in this series. Filter by voltage or type, or search a model number.
Showing 20 of 20 models

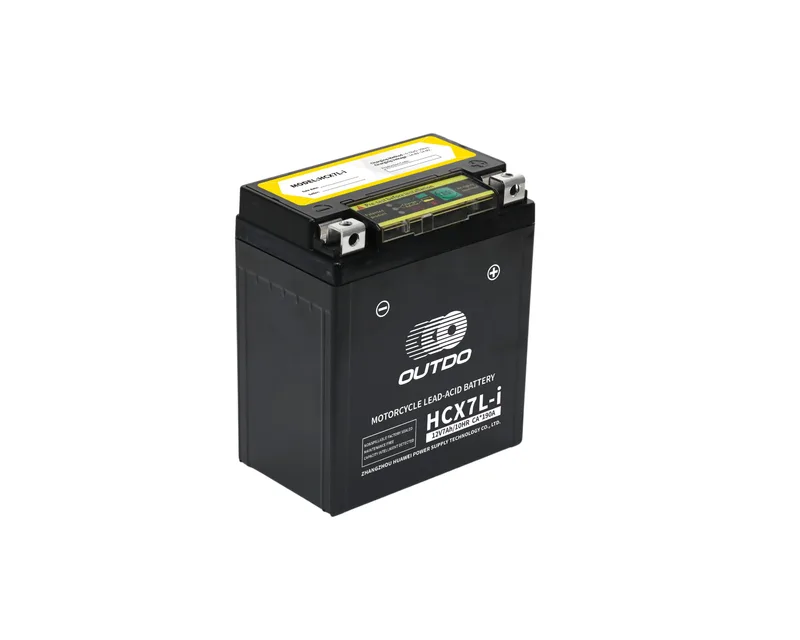

HCX7L-i
- Voltage
- 12V
- Capacity
- 7.5Ah
- CCA (-18°C)
- 120A
- Dimensions (L x W x H)
- 113 x 70 x 130 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.65 kg
- Terminal
- Z3
- Charge Current
- 0.75A
- Meter CCA
- 190A
HCX8L-i
- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 140A
- Dimensions (L x W x H)
- 113 x 70 x 130 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.87 kg
- Terminal
- Z3
- Charge Current
- 0.9A
- Meter CCA
- 260A

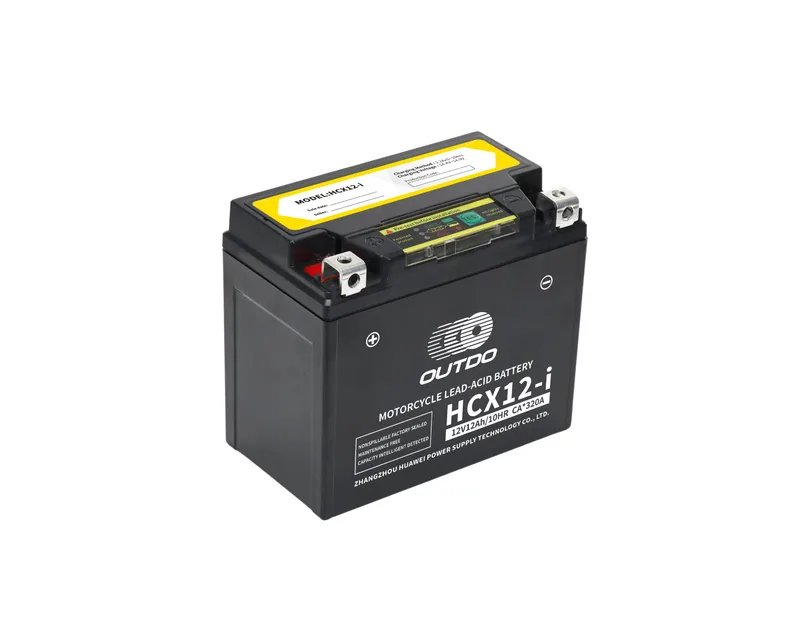

HCX12-i
- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 150 x 86 x 130 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.15 kg
- Terminal
- C12
- Charge Current
- 1.2A
- Meter CCA
- 320A

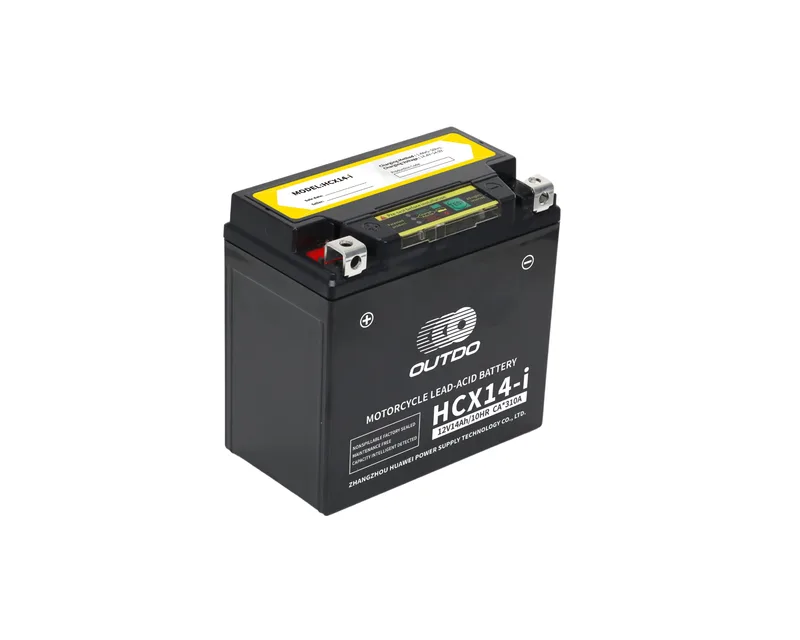

HCX14-i
- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 4.78 kg
- Terminal
- C12
- Charge Current
- 1.4A
- Meter CCA
- 310A
HCX14L-i
- Voltage
- 12V
- Capacity
- 14Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 150 x 86 x 145 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 4.78 kg
- Terminal
- C12
- Charge Current
- 1.4A
- Meter CCA
- 310A
HCX16-i
- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 240A
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 5.45 kg
- Terminal
- C12
- Charge Current
- 1.6A
- Meter CCA
- 350A

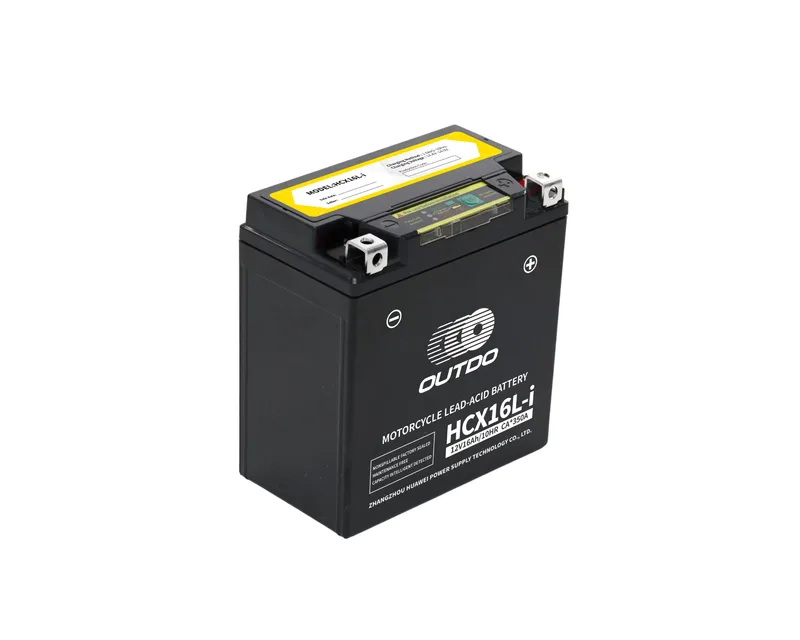

HCX16L-i
- Voltage
- 12V
- Capacity
- 16Ah
- CCA (-18°C)
- 240A
- Dimensions (L x W x H)
- 150 x 86 x 161 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 5.45 kg
- Terminal
- C12
- Charge Current
- 1.6A
- Meter CCA
- 350A

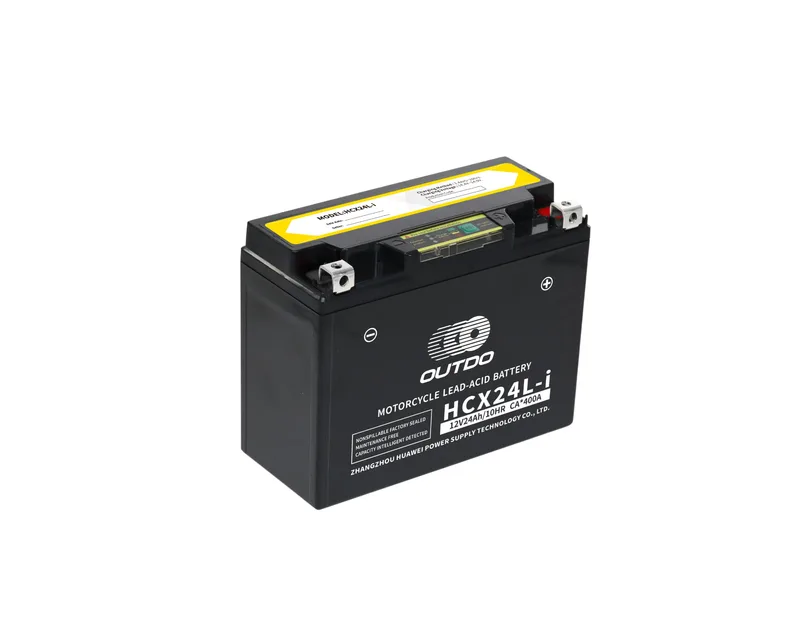

HCX24L-i
- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 350A
- Dimensions (L x W x H)
- 205 x 91 x 161 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 7.42 kg
- Terminal
- C13
- Charge Current
- 2.4A
- Meter CCA
- 400A

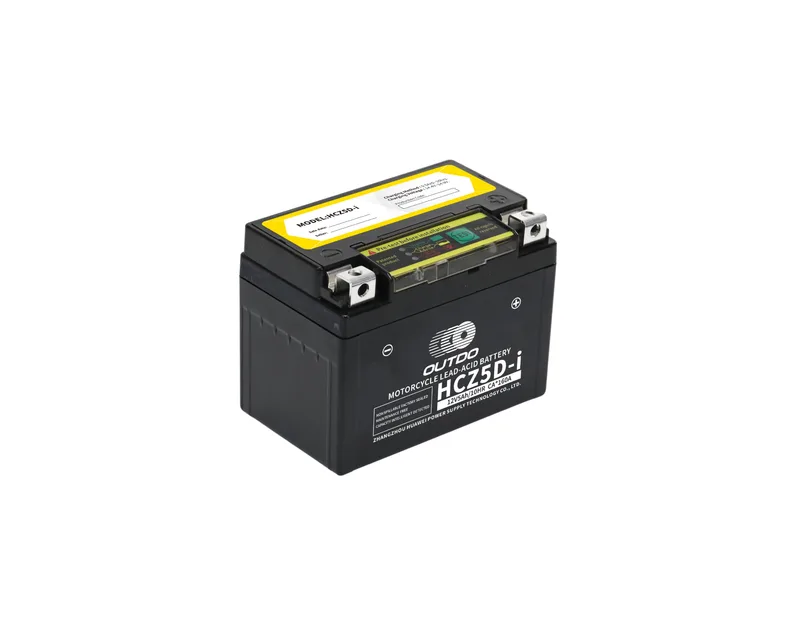

HCZ5D-i
- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 65A
- Dimensions (L x W x H)
- 113 x 70 x 85 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.64 kg
- Terminal
- Z3
- Charge Current
- 0.5A
- Meter CCA
- 160A
HCZ5S-i
- Voltage
- 12V
- Capacity
- 5Ah
- CCA (-18°C)
- 80A
- Dimensions (L x W x H)
- 113 x 70 x 85 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 1.69 kg
- Terminal
- Z3
- Charge Current
- 0.5A
- Meter CCA
- 190A
HCZ7D-i
- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 100A
- Dimensions (L x W x H)
- 113 x 70 x 105 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.16 kg
- Terminal
- Z3
- Charge Current
- 0.6A
- Meter CCA
- 190A

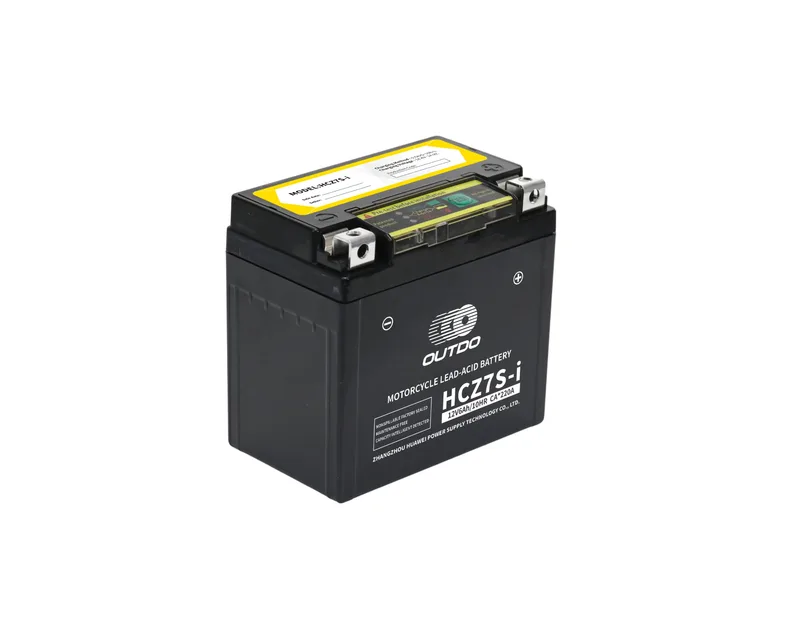

HCZ7S-i
- Voltage
- 12V
- Capacity
- 6Ah
- CCA (-18°C)
- 110A
- Dimensions (L x W x H)
- 113 x 70 x 105 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 2.2 kg
- Terminal
- Z3
- Charge Current
- 0.6A
- Meter CCA
- 220A

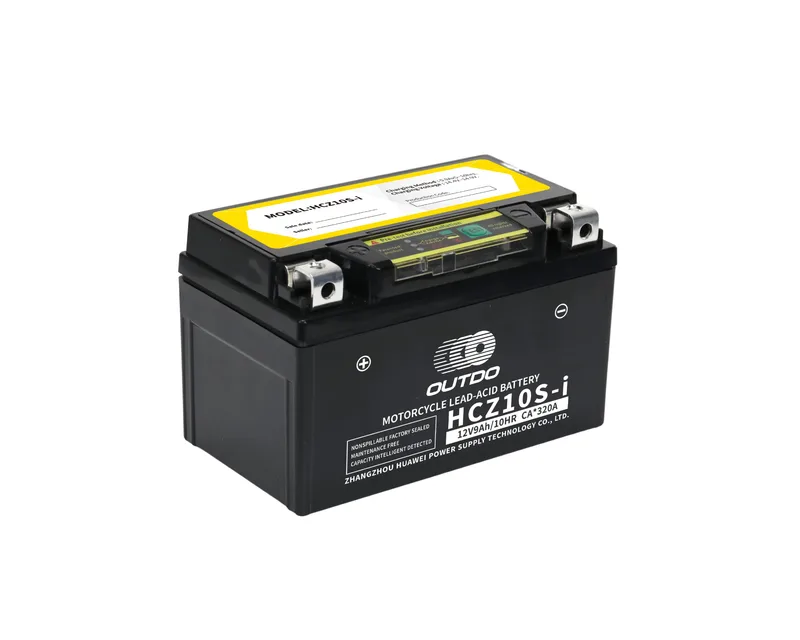

HCZ10S-i
- Voltage
- 12V
- Capacity
- 9Ah
- CCA (-18°C)
- 170A
- Dimensions (L x W x H)
- 150 x 86 x 93 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.14 kg
- Terminal
- Z4
- Charge Current
- 0.9A
- Meter CCA
- 320A

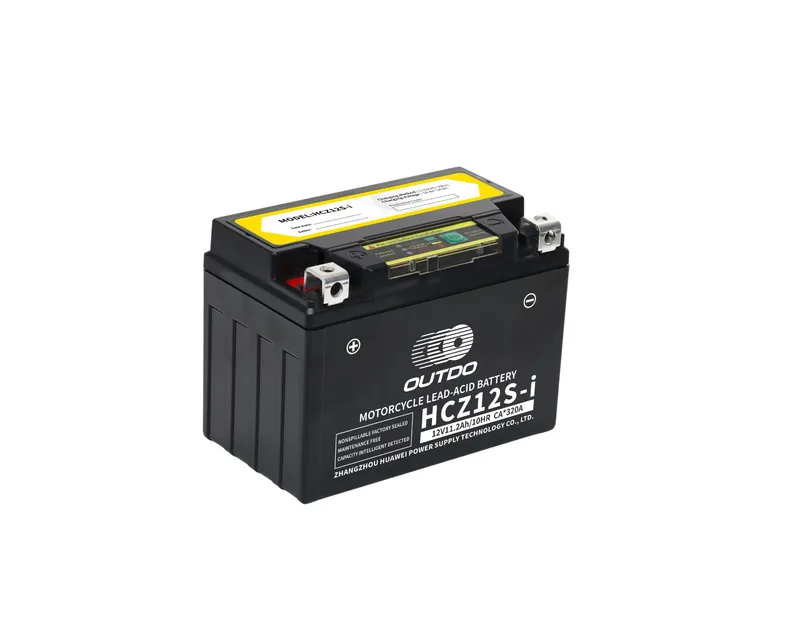

HCZ12S-i
- Voltage
- 12V
- Capacity
- 11.2Ah
- CCA (-18°C)
- 190A
- Dimensions (L x W x H)
- 150 x 86 x 110 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.63 kg
- Terminal
- C12
- Charge Current
- 1.12A
- Meter CCA
- 320A

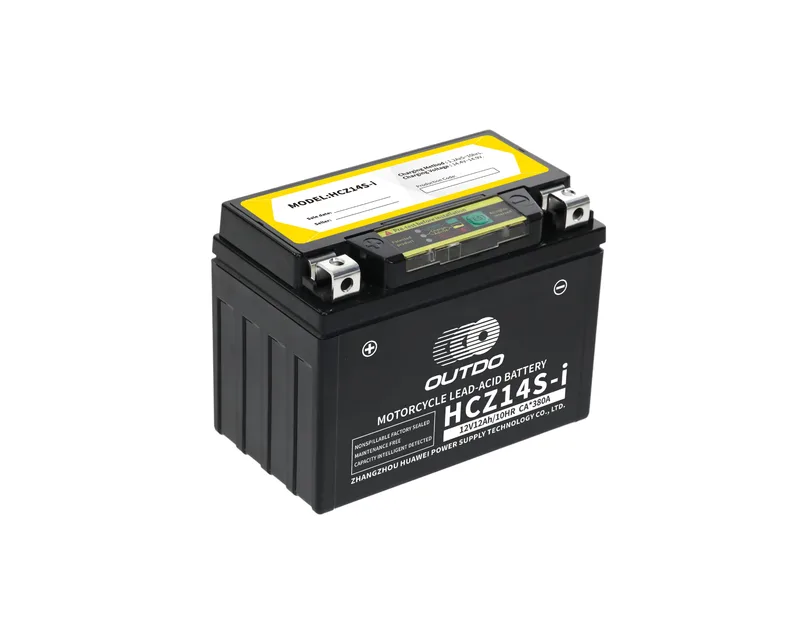

HCZ14S-i
- Voltage
- 12V
- Capacity
- 12Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 150 x 86 x 110 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 3.9 kg
- Terminal
- Z4
- Charge Current
- 1.2A
- Meter CCA
- 380A

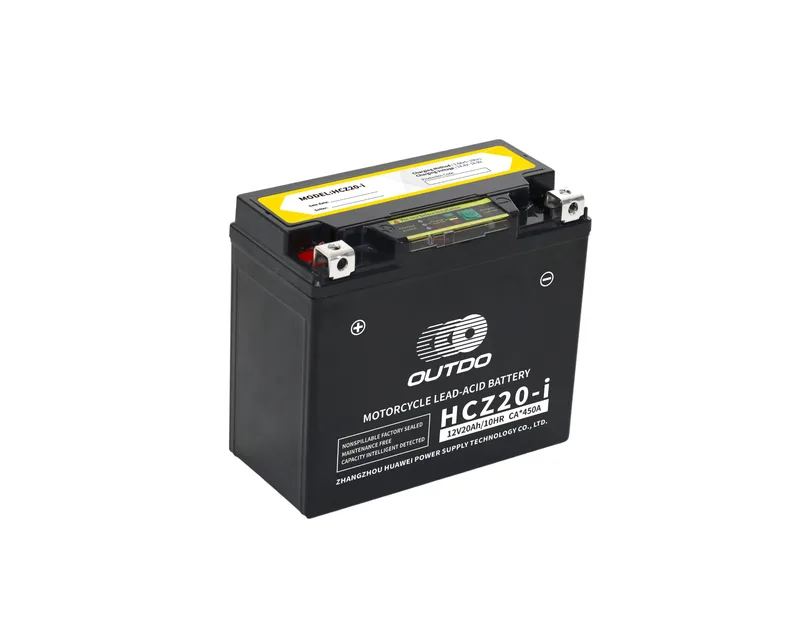

HCZ20-i
- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 270A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 6.2 kg
- Terminal
- C13
- Charge Current
- 2A
- Meter CCA
- 450A
HCZ20H-i
- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 310A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 6.46 kg
- Terminal
- C13
- Charge Current
- 2A
- Meter CCA
- 490A

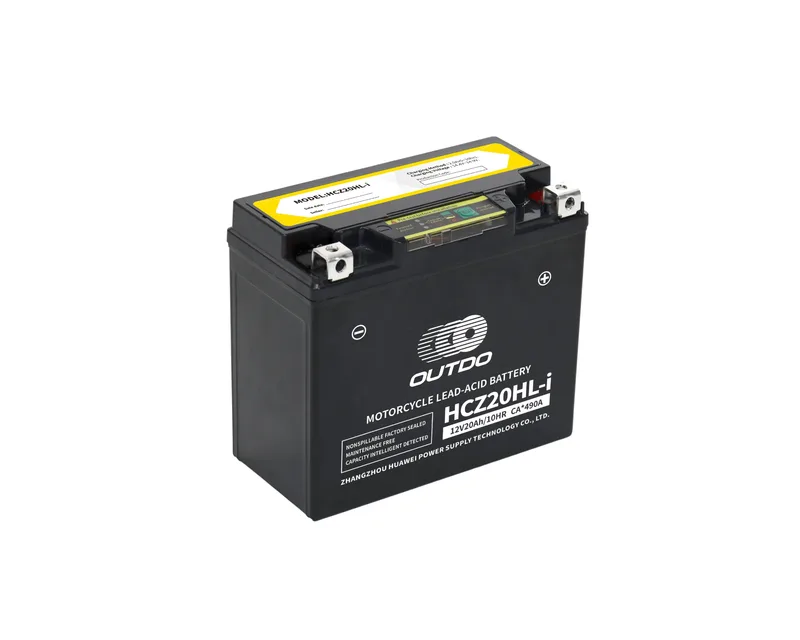

HCZ20HL-i
- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 310A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.46 kg
- Terminal
- C13
- Charge Current
- 2A
- Meter CCA
- 490A
HCZ20L-i
- Voltage
- 12V
- Capacity
- 20Ah
- CCA (-18°C)
- 270A
- Dimensions (L x W x H)
- 177 x 88 x 155 mm
More specifications
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 6.2 kg
- Terminal
- C13
- Charge Current
- 2A
- Meter CCA
- 450A
| Model | Series | Voltage (V) | Capacity (Ah) | Hour Rate (HR) | Dimensions±2 (mm) | Polarity | Weight±3% (KG) | Terminal | Regular Charge Current (A) | Meter CCA (25±5°C) | CCA (-18°C) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HC12A-i | iGEL | 12 | 10 | 10 | 150*86*104 | + - | 3.65 | Z4 | 1 | 370 | 190 | |
| HCX7L-i | iGEL | 12 | 7.5 | 10 | 113*70*130 | - + | 2.65 | Z3 | 0.75 | 190 | 120 | |
| HCX8L-i | iGEL | 12 | 9 | 10 | 113*70*130 | - + | 2.87 | Z3 | 0.9 | 260 | 140 | |
| HCX12-i | iGEL | 12 | 12 | 10 | 150*86*130 | + - | 4.15 | C12 | 1.2 | 320 | 190 | |
| HCX14-i | iGEL | 12 | 14 | 10 | 150*86*145 | + - | 4.78 | C12 | 1.4 | 310 | 210 | |
| HCX14L-i | iGEL | 12 | 14 | 10 | 150*86*145 | - + | 4.78 | C12 | 1.4 | 310 | 210 | |
| HCX16-i | iGEL | 12 | 16 | 10 | 150*86*161 | + - | 5.45 | C12 | 1.6 | 350 | 240 | |
| HCX16L-i | iGEL | 12 | 16 | 10 | 150*86*161 | - + | 5.45 | C12 | 1.6 | 350 | 240 | |
| HCX24L-i | iGEL | 12 | 24 | 10 | 205*91*161 | - + | 7.42 | C13 | 2.4 | 400 | 350 | |
| HCZ5D-i | iGEL | 12 | 5 | 10 | 113*70*85 | - + | 1.64 | Z3 | 0.5 | 160 | 65 | |
| HCZ5S-i | iGEL | 12 | 5 | 10 | 113*70*85 | - + | 1.69 | Z3 | 0.5 | 190 | 80 | |
| HCZ7D-i | iGEL | 12 | 6 | 10 | 113*70*105 | - + | 2.16 | Z3 | 0.6 | 190 | 100 | |
| HCZ7S-i | iGEL | 12 | 6 | 10 | 113*70*105 | - + | 2.2 | Z3 | 0.6 | 220 | 110 | |
| HCZ10S-i | iGEL | 12 | 9 | 10 | 150*86*93 | + - | 3.14 | Z4 | 0.9 | 320 | 170 | |
| HCZ12S-i | iGEL | 12 | 11.2 | 10 | 150*86*110 | + - | 3.63 | C12 | 1.12 | 320 | 190 | |
| HCZ14S-i | iGEL | 12 | 12 | 10 | 150*86*110 | + - | 3.9 | Z4 | 1.2 | 380 | 210 | |
| HCZ20-i | iGEL | 12 | 20 | 10 | 177*88*155 | + - | 6.2 | C13 | 2 | 450 | 270 | |
| HCZ20H-i | iGEL | 12 | 20 | 10 | 177*88*155 | + - | 6.46 | C13 | 2 | 490 | 310 | |
| HCZ20HL-i | iGEL | 12 | 20 | 10 | 177*88*155 | - + | 6.46 | C13 | 2 | 490 | 310 | |
| HCZ20L-i | iGEL | 12 | 20 | 10 | 177*88*155 | - + | 6.2 | C13 | 2 | 450 | 270 |
