U1-9
MF Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 196 x 131 x 184 mm
More specifications
- Type
- MF Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 7.48 kg
- Terminal
- B8
- Charge Current
- 2.4A
Lawn-Mower
Lawn Mower Battery
Lawn Mower Rechargeable Lead Acid Battery is a reliable and durable power source designed specifically for electric lawn mowers. Built with robust lead-acid technology, this battery offers consistent performance and long-lasting power to ensure efficient mowing of small to medium-sized lawns. It is rechargeable, providing a cost-effective and eco-friendly alternative to disposable batteries.
Lawn Mower Battery Safe Use Precautions
I. Warning
- The electrolyte inside the battery is corrosive and may damage metal, cotton products, and stone. Handle the battery properly.
- Do NOT place the battery on its side or upside down to prevent acid leakage.
- Hydrogen gas may be generated during battery operation and charging. If exposed to fire or sparks, it may cause an explosion. Please observe the following precautions:
- Use and maintain the battery in a well-ventilated area.
- Keep sparks and open flames away during battery maintenance.
- If the battery is charged outside the vehicle, do not install it immediately after charging. Let it rest for at least 10 minutes to allow hydrogen gas to dissipate.
- After riding, do not remove the battery immediately. Let it rest for at least 10 minutes.
- During charging, the ambient temperature should not exceed 45°C. If it does, cool the battery with water or reduce the charging current and voltage.
- Do NOT place metal tools or conductive materials near the terminals to avoid short-circuiting.
- Do NOT strike the terminals with a hammer during battery installation.
- Handle the battery carefully during transportation to avoid impact or damage.
II. Lawn Mower Battery Installation and Maintenance
- Connect the positive terminal first. Do NOT reverse the polarity, otherwise the motorcycle's electrical equipment may be damaged.
- Activation Notice:
- Some batteries may not be activated immediately due to differences in vehicle performance. Start the engine several times or gently apply the throttle to help activate the battery more easily.
- Manual activation is recommended to ensure the exact activation date is recorded.
- During acid filling, wear acid-resistant clothing, rubber boots, safety goggles, and rubber gloves. If acid splashes onto skin or clothing, rinse immediately with a large amount of water. Seek medical attention if necessary.
- Do NOT over-discharge the battery. Recharge the battery promptly after it has been discharged.
- Disconnect the negative terminal if the motorcycle will not be used for a long period.
- Do NOT check whether the battery has power by short-circuiting the terminals.
- Regularly check the terminal connections and ensure the terminals are clean to maintain good contact.
- Store the battery in a dry, well-ventilated place at 5-25°C, away from direct sunlight. Keep the battery at least 2 meters away from heat sources. Check and maintain the battery regularly.
Every model in this series. Filter by voltage or type, or search a model number.
Showing 6 of 6 models
U1-R9
MF Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 196 x 131 x 184 mm
More specifications
- Type
- MF Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 7.48 kg
- Terminal
- B8
- Charge Current
- 2.4A
.webp)

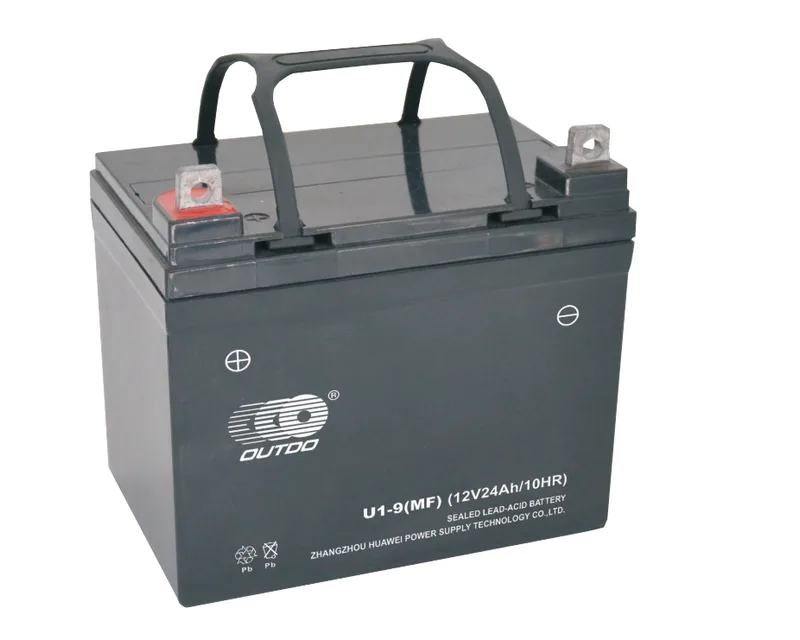

U1-9(MF)
MF Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 195 x 130 x 180 mm
More specifications
- Type
- MF Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 7.5 kg
- Terminal
- B8
- Charge Current
- 2.4A
.webp)

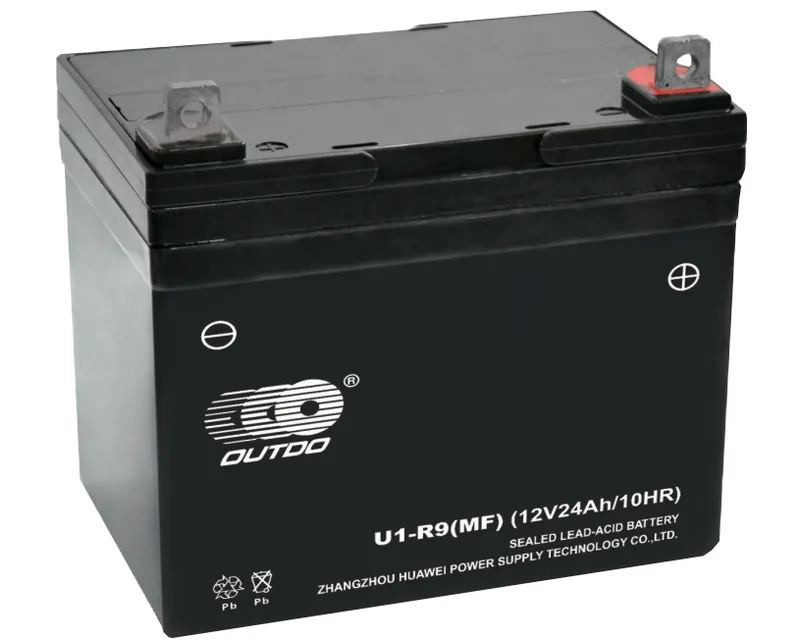

U1-R9(MF)
MF Type- Voltage
- 12V
- Capacity
- 24Ah
- CCA (-18°C)
- 210A
- Dimensions (L x W x H)
- 195 x 130 x 180 mm
More specifications
- Type
- MF Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 7.5 kg
- Terminal
- B8
- Charge Current
- 2.4A
.webp)

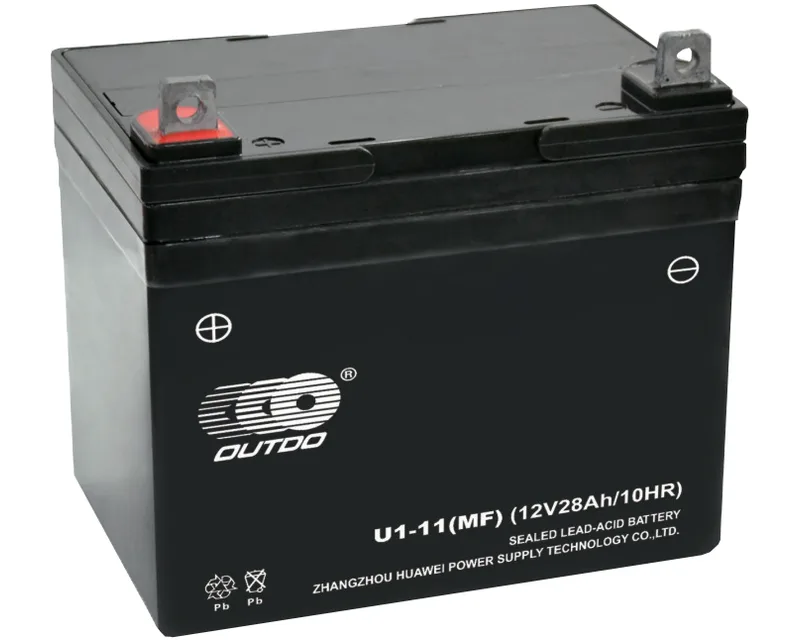

U1-11(MF)
MF Type- Voltage
- 12V
- Capacity
- 28Ah
- CCA (-18°C)
- 260A
- Dimensions (L x W x H)
- 195 x 130 x 180 mm
More specifications
- Type
- MF Type
- Hour Rate
- 10
- Polarity
- + -
- Weight
- 8.3 kg
- Terminal
- B8
- Charge Current
- 2.8A
.webp)
U1-R11(MF)
MF Type- Voltage
- 12V
- Capacity
- 28Ah
- CCA (-18°C)
- 260A
- Dimensions (L x W x H)
- 195 x 130 x 180 mm
More specifications
- Type
- MF Type
- Hour Rate
- 10
- Polarity
- - +
- Weight
- 8.3 kg
- Terminal
- B8
- Charge Current
- 2.8A
| Model | Type | Voltage (V) | Capacity (Ah) | Hour Rate (HR) | Dimension±2 (mm) | Polarity | Weight±3% (KG) | Terminal | Regular Charge Current (A) | CCA (-18°C) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| U1-9 | MF Type | 12 | 24 | 10 | 196*131*184 | + - | 7.48 | B8 | 2.4 | 210 | |
| U1-R9 | MF Type | 12 | 24 | 10 | 196*131*184 | - + | 7.48 | B8 | 2.4 | 210 | |
| U1-9(MF) | MF Type | 12 | 24 | 10 | 195*130*180 | + - | 7.5 | B8 | 2.4 | 210 | |
| U1-R9(MF) | MF Type | 12 | 24 | 10 | 195*130*180 | - + | 7.5 | B8 | 2.4 | 210 | |
| U1-11(MF) | MF Type | 12 | 28 | 10 | 195*130*180 | + - | 8.3 | B8 | 2.8 | 260 | |
| U1-R11(MF) | MF Type | 12 | 28 | 10 | 195*130*180 | - + | 8.3 | B8 | 2.8 | 260 |
